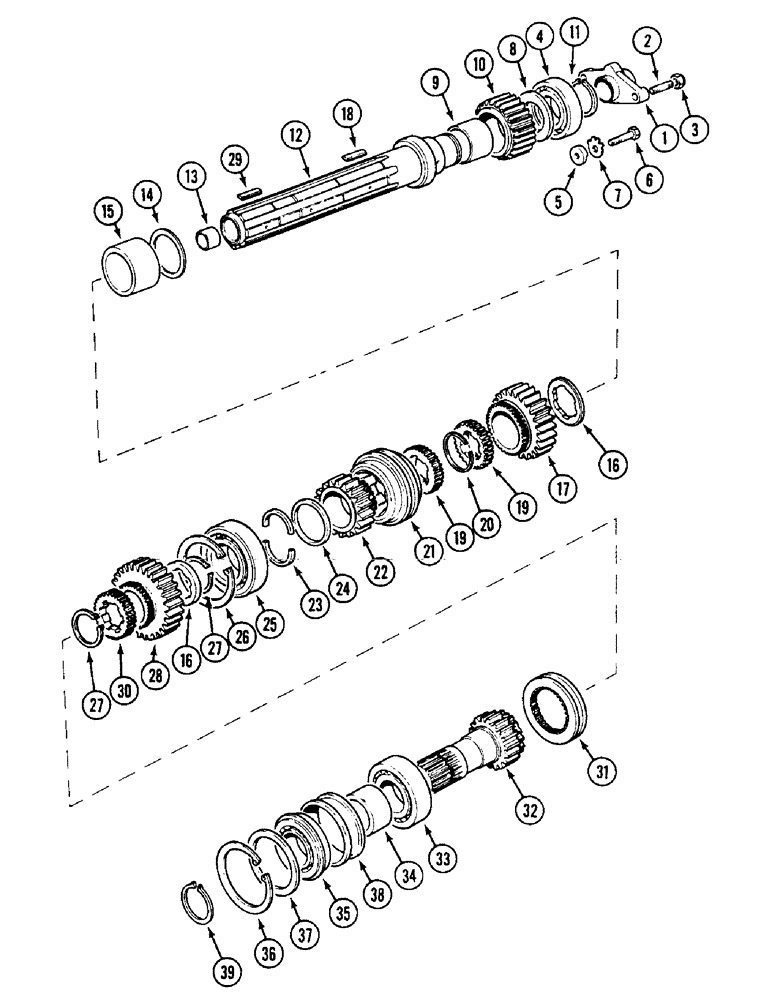

Запчасти Case IH 1594 (6-168) - DRIVESHAFT AND GEARS, SYNCHROMESH GEARBOX (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
K954299
SUPPORT
BRACKET - lubrication, bearing
1шт.
2
K608121
STUD
- 5/16 UNC x 1-7/8 inch
2шт.
3
231-1445
NUT,5/16"-18, GB
NUT - self-locking, 5/16 inch UNC
2шт.
5
K910447
WASHER
- retaining
1шт.
6
K600005
BOLT
- 1/4 UNC x 1-3/8 inch
1шт.
7
K33127
WASHER
- tab
1шт.
8
K908940
WASHER
- thrust
1шт.
9
K621376
BUSHING
- gear
1шт.
10
K963566
GEAR
- reverse, 22 teeth
1шт.
11
100-11175
SNAP RING,#175, Ext
Ring, Snap, #175, Ext
1шт.
12
K200508
SHAFT ASSY.
DRIVESHAFT - synchromesh
1шт.
13
K948482
BUSHING
- driveshaft
1шт.
14
K626241
SHIM,.020" Thk
(0.52 mm) .020" Thk
1шт.
15
K627244
BUSHING
SPACER - driveshaft
1шт.
16
K940975
DISC
WASHER - splined
2шт.
17
K206937
GEAR
- high range, 26 teeth
1шт.
18
K940989
PLATE
PAD - bearing
12шт.
19
K206501
GEAR
- dog clutch
2шт.
20
K621865
RING, SNAP
RING - snap, 50 mm external
1шт.
21
K943613
CLUTCH
GEAR - sliding, high/low
1шт.
22
K205681
GEAR
- low speed, 18 teeth
1шт.
23
K954302
RING
- split
2шт.
24
K954303
RING
- keeper
1шт.
25
K12311
BEARING, ROLLER, CYL
BEARING - roller
1шт.
26
K12236
RING, SNAP
RING - snap, 4 inch (102 mm) Internal
1шт.
27
100-11175
SNAP RING,#175, Ext
Ring, Snap, #175, Ext
2шт.
28
K954305
GEAR
- 28 teeth
1шт.
29
K940989
PLATE
PAD - bearing
6шт.
30
K946234
GEAR
CLUTCH - dog, fixed
1шт.
31
K943644
SYNCHRO RING
CLUTCH - dog, sliding (slow/normal)
1шт.
32
K210457
GEAR
- drive, 18 teeth
1шт.
33
K12275
BEARING, ROLLER, CYL
BEARING - roller
1шт.
34
K627588
SPACER
- driving gear
1шт.
35
ST243
BEARING, BALL,45 mm ID x 85 mm OD x 19 mm
BEARING - ball
1шт.
36
K621484
RING, SNAP
RING - snap, 3-5/8 inch (92 mm) Internal
1шт.
37
K949218
BUSHING
WASHER - bearing
1шт.
38
K627304
BUSHING
SPACER - bearing
1шт.
39
100-11175
SNAP RING,#175, Ext
Ring, Snap, #175, Ext
1шт.
Выбрано товаров: 39
