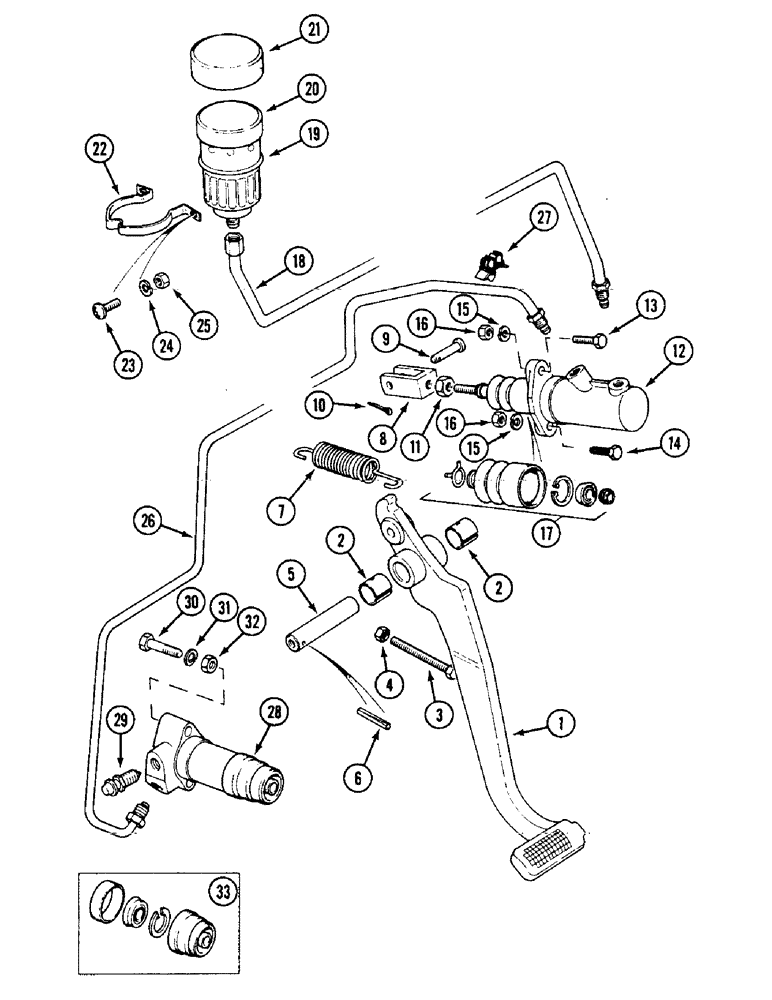

Запчасти Case IH 1594 (6-154) - TRANSMISSION CLUTCH RELEASE MECHANISM, TRACTORS WITHOUT CAB (06) - POWER TRAIN

1

K260510

CLUTCH

PEDAL - clutch, brake, Includes: Ref. 2

1шт.

2

K628764

BUSHING

- pivot

2шт.

3

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

1шт.

4

K652627

NUT - M8

1шт.

5

K202056

PIN

- pivot, clutch pedal

1шт.

6

K19552

GROOVED PIN,1/8" x 1 1/8", Type A

Pin, Grooved, 1/8" x 1 1/8", Type A

1шт.

7

K624970

SPRING

- pedal return

1шт.

8

K622205

FORK

END - fork, 5/16 inch UNF

1шт.

9

K625954

PIN

- clevis, 5/16 x 1-3/16 inch

1шт.

10

K19528

PIN

- cotter, 1/16 x 1/2 inch

1шт.

11

425-115

NUT,5/16"-24, G5

- lock, 5/16 inch UNF

1шт.

12

K950544

CYLINDER,36.32mm Stroke

ASSEMBLY - master (Mineral oil) (Girling 73067017)

1шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

1шт.

14

K655645

BOLT

SCREW - M8 x 16 mm

1шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

16

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

17

K964572

SEAL KIT

SEAL KIT - master cylinder

1шт.

18

K302631

PIPE

TUBE - reservoir to master cylinder

1шт.

19

K951526

RESERVOIR

- brake, Includes: Ref. 20 & 21

1шт.

20

K964488

CAP

- filler, reservoir

1шт.

21

K964813

COVER

- green

1шт.

22

K200671

SPRING

CLAMP - reservoir

1шт.

23

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch

2шт.

24

K626340

RING

WASHER - lock, 10

2шт.

25

225-14210

NUT,#10-32

2шт.

26

K306543

PIPE

TUBE - master cylinder to slave cylinder

1шт.

27

K625024

CLIP

- brake tube

1шт.

28

K306544

CYLINDER,50mm Stroke

ASSEMBLY - slave (Girling 73067124) (Mineral oil), Includes: Ref. 29

1шт.

29

K964534

SCREW,M12 x 1

- air removal

1шт.

30

K650648

BOLT

- M8 x 15 mm

2шт.

31

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

32

Y651527

NUT - M8

2шт.

33

K261633

SEAL KIT

SEAL KIT - slave cylinder

1шт.
