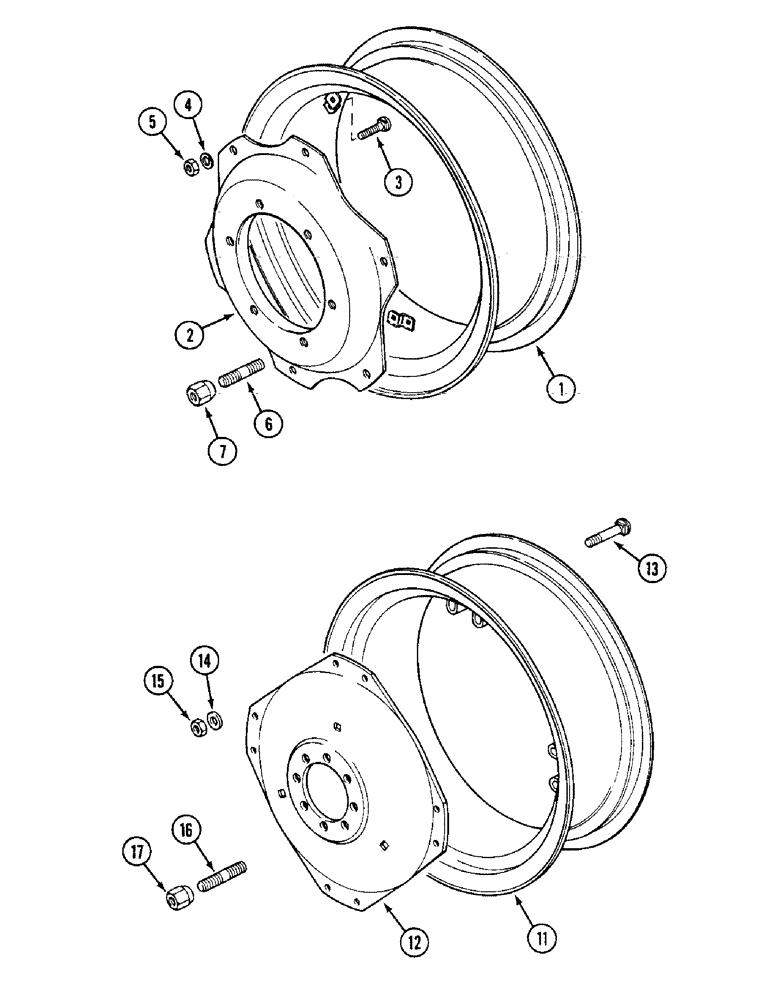

Запчасти Case IH 1594 (5-150) - FRONT WHEELS, MFD TRACTORS, PRIOR TO P.I.N. 11221501 (05) - STEERING

REF

INSTRUCTION

WHEEL ASSEMBLY - for 14.9/13-24 or 13.6/12 x 24 tires, Includes: Ref. 1 - 5

2шт.

1

K307639

RIM

- wheel, W12 x 24 inch

1шт.

2

K307641

WHEEL

CENTER - wheel, steel

1шт.

3

K958968

BOLT - rim, M, 16 x 74 mm

6шт.

4

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

6шт.

5

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

6шт.

K308431

WHEEL

ASSEMBLY - for, 13.6/12-28 inch tires, (Not for North America), Includes: Ref. 1 - 5

2шт.

1

K308432

RIM

- wheel, W, 12 x 28 inch

1шт.

2

K308433

WHEEL

CENTER - wheel, steel

1шт.

3

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

6шт.

4

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

6шт.

5

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

6шт.

6

K956902

STUD

- M18 x 62 mm

12шт.

7

K395089

WHEEL NUT

- wheel, Includes: washer

12шт.

K395083

WASHER,18.5mm ID x 29mm OD x 7mm Thk

- cone, (Not shown)

1шт.

REF

INSTRUCTION

WHEEL ASSEMBLY - for 14.9/13-24 or 13.6/12 x 24 tires, Includes: Ref. 11 - 15, MFD tractors, P.I.N. 11221501 and after

2шт.

11

K330073

RIM

- wheel, W12 x 24 inch, MFD tractors, P.I.N. 11221501 and after

1шт.

12

K330074

DISC, WHEEL

CENTER - wheel, steel, MFD tractors, P.I.N. 11221501 and after

1шт.

13

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm, MFD tractors, P.I.N. 11221501 and after

6шт.

14

1335135C1

WASHER

- flat, 17 x 33 x 5 mm, MFD tractors, P.I.N. 11221501 and after

6шт.

15

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10, MFD tractors, P.I.N. 11221501 and after

6шт.

REF

INSTRUCTION

WHEEL ASSEMBLY - for 13.6/12-28 tires, Includes: Ref. 11 - 15, MFD tractors, P.I.N. 11221501 and after

2шт.

11

K330071

RIM

- wheel, W12 x 28 inch, MFD tractors, P.I.N. 11221501 and after

1шт.

12

K330072

DISC, WHEEL

CENTER - wheel, steel, MFD tractors, P.I.N. 11221501 and after

1шт.

13

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm, MFD tractors, P.I.N. 11221501 and after

6шт.

14

1335135C1

WASHER

- flat, 17 x 33 x 5 mm, MFD tractors, P.I.N. 11221501 and after

6шт.

15

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10, MFD tractors, P.I.N. 11221501 and after

6шт.

16

K260218

STUD

- wheel fixing, MFD tractors, P.I.N. 11221501 and after

12шт.

17

K395089

WHEEL NUT

- wheel, Includes: washer, MFD tractors, P.I.N. 11221501 and after

12шт.

K395083

WASHER,18.5mm ID x 29mm OD x 7mm Thk

- cone, (Not shown), MFD tractors, P.I.N. 11221501 and after

1шт.
