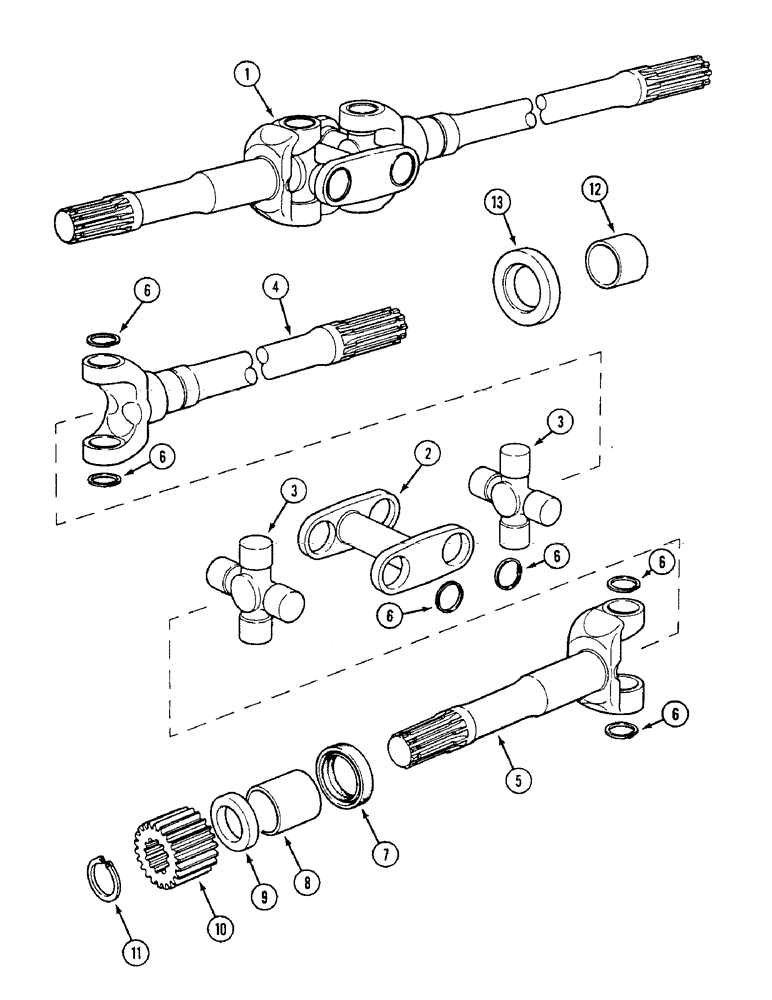

Запчасти Case IH 1594 (5-148) - FRONT AXLE HALF-SHAFTS, MFD TRACTORS, P.I.N. 11221501 AND AFTER (05) - STEERING

1

REF

INSTRUCTION

HALF-SHAFT ASSEMBLY - Order components, Includes: Ref. 2 - 6

2шт.

2

K262199

FORK

HOUSING - joint (Carraro 116153)

1шт.

3

K262161

U-JOINT SPIDER

UNIVERSAL JOINT - axle shaft (Carraro 107625)

2шт.

4

K262198

SHAFT

HALF SHAFT - long (Carraro 40762)

1шт.

5

N13510

SHAFT

- axle, short (Carraro 40760)

1шт.

6

K965336

RING, SNAP

RING - snap (Carraro 40181)

8шт.

7

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

- oil (Carraro 116722)

2шт.

8

1967535C1

BUSHING

2шт.

9

K395096

BUSHING

SPACER - half-shaft (Carraro 118555)

2шт.

10

K395114

GEAR

- sun (Carraro 115643)

2шт.

11

K261897

RING, SNAP

RING - snap (Carraro 115682)

2шт.

12

K395019

BUSHING

- axle housing (Carraro 118547)

2шт.

13

1966164C1

OIL SEAL,47mm ID x 62mm OD x 14mm Thk

SEAL - oil

2шт.
