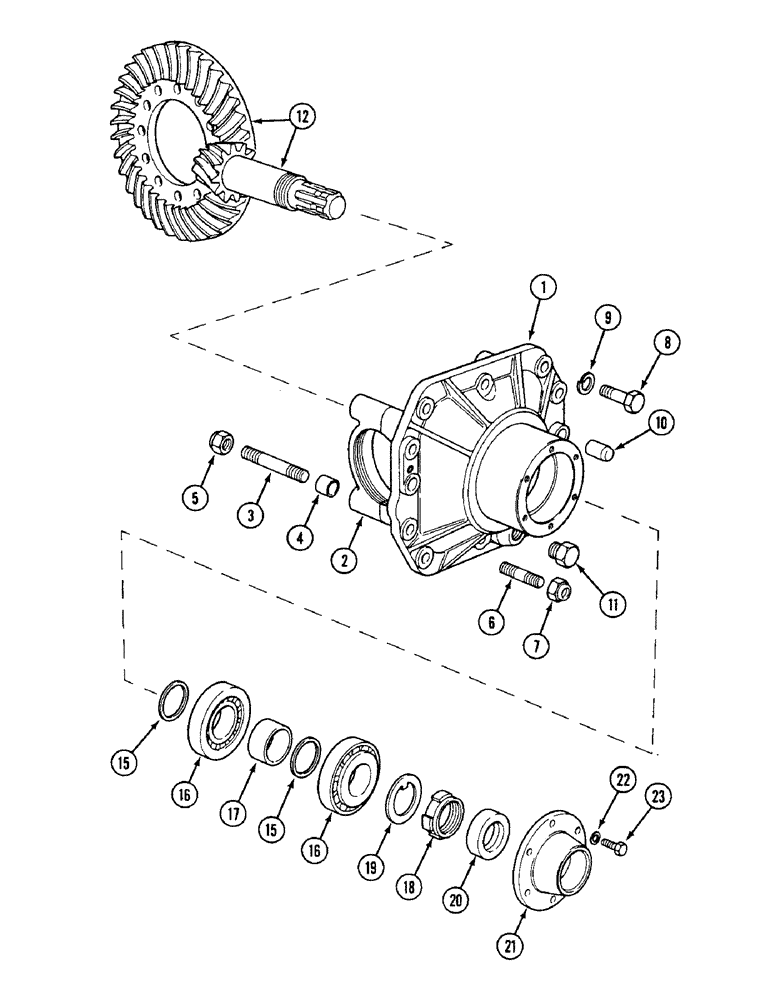

Запчасти Case IH 1594 (5-142) - FRONT AXLE DIFFERENTIAL HOUSING, MFD TRACTORS, P.I.N. 11221501 AND AFTER (05) - STEERING

1

K395118

DIFFERENTIAL

HOUSING - differential (Carraro 116392), Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

3

S301065

BOLT,Hex Flg, M14 x 75, 12.9

BOLT, , Special, Carraro 107766 Hex Flg, M14 x 75, 12.9

4шт.

4

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

- centering

4шт.

5

905873R1

NUT,M14 x 1.5, G8

NUT - self-locking

4шт.

6

1966562C1

STUD

- axle housing

7шт.

7

905834R1

THIN NUT,M12 x 1.25, Thin

Hex M12 x 1.25, Thin

7шт.

8

K260196

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- M12 x 35 mm (Carraro 20921)

3шт.

9

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

10

1966138C1

DOWEL

PIN - dowel

2шт.

11

110782A1

PLUG, DRAIN

PLUG - 24 mm

1шт.

12

K262181

GEAR, BEVEL

GEAR AND PINION - 13/31 ratio (8 teeth on the shaft)

1шт.

15

K965280

SHIM,2.50mm Thk

(Carraro 98427) 2.50mm Thk

1шт.

15

K965282

SHIM,2.60mm Thk

(Carraro 98426) 2.60mm Thk

1шт.

15

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

(Carraro 98425) 2.70mm Thk

1шт.

15

K965286

SHIM,2.85mm Thk

(Carraro 98424) 2.80mm Thk

1шт.

15

K965288

SHIM,2.90mm Thk

(Carraro 98244) 2.90mm Thk

1шт.

15

K965290

SPACER

SHIM - 3.0 mm (Carraro 98239)

1шт.

15

K965292

SHIM,3.10mm Thk

(Carraro 98240) 3.10mm Thk

1шт.

15

K965293

SHIM,3.15mm Thk

(Carraro 100163) 3.15mm Thk

1шт.

15

K965294

SHIM,3.20mm Thk

(Carraro 98241) 3.20mm Thk

1шт.

15

K965295

SHIM,3.25mm Thk

(Carraro 100164) 3.25mm Thk

1шт.

15

K965296

SHIM,3.30mm Thk

(Carraro 98242) 3.30mm Thk

1шт.

15

K965298

SHIM,3.40mm Thk

(Carraro 98243) 3.40mm Thk

1шт.

16

K395090

TAPERED BEARING,40mm ID x 90mm OD

BEARING, ROLLER, TAPERED, Pinion (Carraro 27350)

2шт.

17

1349058C1

SPACER

- collapsible, Order also 1349059C1 Washer

1шт.

18

K261014

RING NUT,M40 x 1.5

RING - nut

1шт.

19

K261065

LOCK WASHER

- special (Carraro 113717)

1шт.

20

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

- oil (Carraro 116722)

1шт.

21

K395055

COVER

FLANGE - housing (Carraro 116370)

1шт.

22

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

6шт.

23

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm

6шт.
