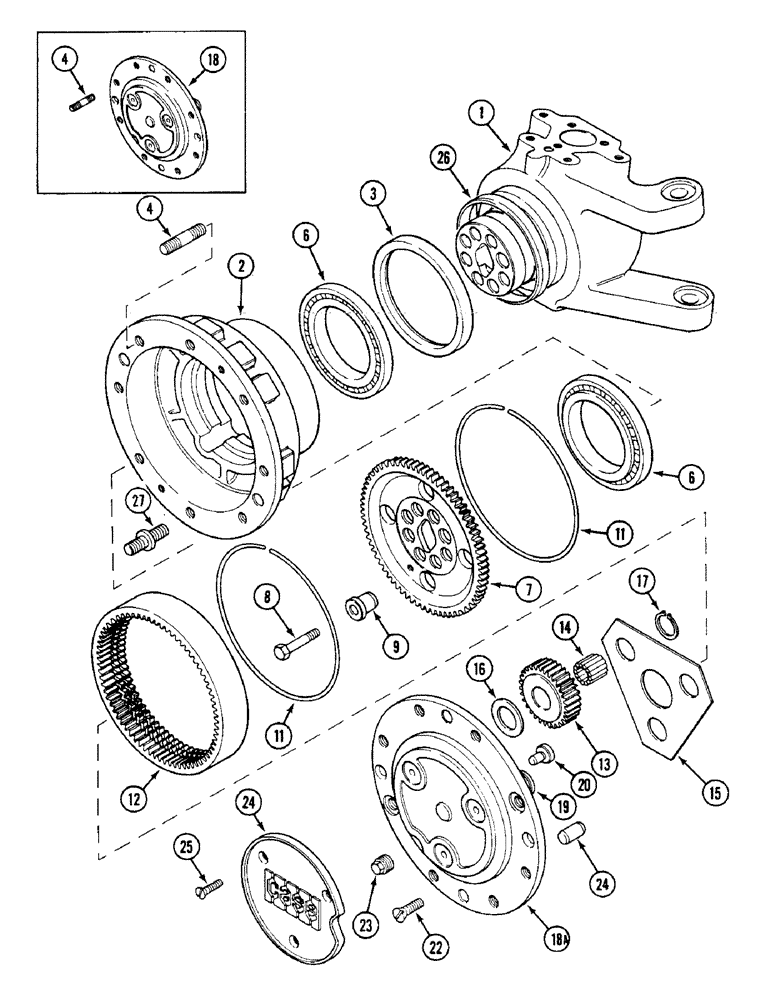

Запчасти Case IH 1594 (5-140) - FRONT HUBS AND PLANETARIES, MFD TRACTORS, P.I.N. 11221501 AND AFTER (05) - STEERING

1

K395133

HOUSING

- stub axle, left-hand (Carraro 119769)

1шт.

1

K395134

HOUSING

- stub axle, right-hand (Carraro 119770)

1шт.

2

K395123

HUB

- front (Carraro 118376)

2шт.

3

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

- oil, 149 x 176 x 16

2шт.

4

K260218

STUD

- wheel fixing (Carraro 106199) (Prior to 709/19 axle No. 917)

16шт.

4

K260218

STUD

- wheel fixing (Carraro 106199) (709/19 axle No. 917 and after)

12шт.

6

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING - taper roller (Carraro 118370)

4шт.

7

K395126

WHEEL

GEAR - support (Carraro 118382)

2шт.

8

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Self-locking (Carraro 119906) Hex, M14 x 65, Cl 10.9

16шт.

REF ITEM 8- P/N K395131: PER TECH COMMENTS THIS S/B M14 X 65 BOLT. JBEDFORD 5/19/98.

1шт.

9

107071A1

BUSHING

- Centering, 20 mm OD

14шт.

9

107072A1

CENTERING RING

BUSHING - centering, 24 mm OD

2шт.

11

K395095

CIRCLIP

RING - snap (Carraro 115691)

4шт.

12

REF

INSTRUCTION

GEAR ASSEMBLY - internal (Carraro 115689), Includes: ring and gears

2шт.

H437677

GEAR, RING

GEAR - internal-tooth

1шт.

H437678

RING, FLYWHEEL

GEAR - support

1шт.

H437679

RING, SNAP

RING - locking

1шт.

13

K395110

GEAR

- planet (Carraro 115644)

6шт.

14

119685A1

NEEDLE BEARING

BEARING - needle

180шт.

15

K395122

PLATE

- thrust (Carraro 116458)

2шт.

16

K395091

THRUST WASHER

WASHER, THRUST (Carraro 115634)

6шт.

17

800-1134

SNAP RING,M34, Ext

RING, SNAP, M34, Ext

6шт.

18

K311788

CAP

COVER - hub (Germany only), Includes: 18A - 20

2шт.

K262251

PINION CARRIER

COVER - hub (709/19 Axle No. 917 and after), Includes: 18A - 20

2шт.

18a

NSS

NOT SOLD SEPARAT

COVER

1шт.

19

K395124

SHAFT

- pinion gear

3шт.

20

K395093

HEADED PIN,12mm OD x 15mm L

BUTTON - thrust

2шт.

21

K395094

DOWEL,M18 x 36

Hub cover (Carraro 115640) M18 x 36

4шт.

22

K395029

SCREW

- M12 x 30 mm (Carraro 20510)

4шт.

23

110782A1

PLUG, DRAIN

PLUG - 24 mm

2шт.

24

K395135

COVER

PLATE - hub cover (Carraro 118927)

2шт.

25

905876R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 10.9

Special Hex Soc Flat Hd, M8 x 20, 10.9

6шт.

26

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

- oil, 149 x 176 x 16

2шт.

27

N13515

STUD

- with collar, special (709/19 Axle No. 917 and after)

4шт.
