Запчасти Case IH 1594 (5-138) - FRONT AXLE HOUSING, MFD TRACTORS, P.I.N. 11221501 AND AFTER (05) - STEERING

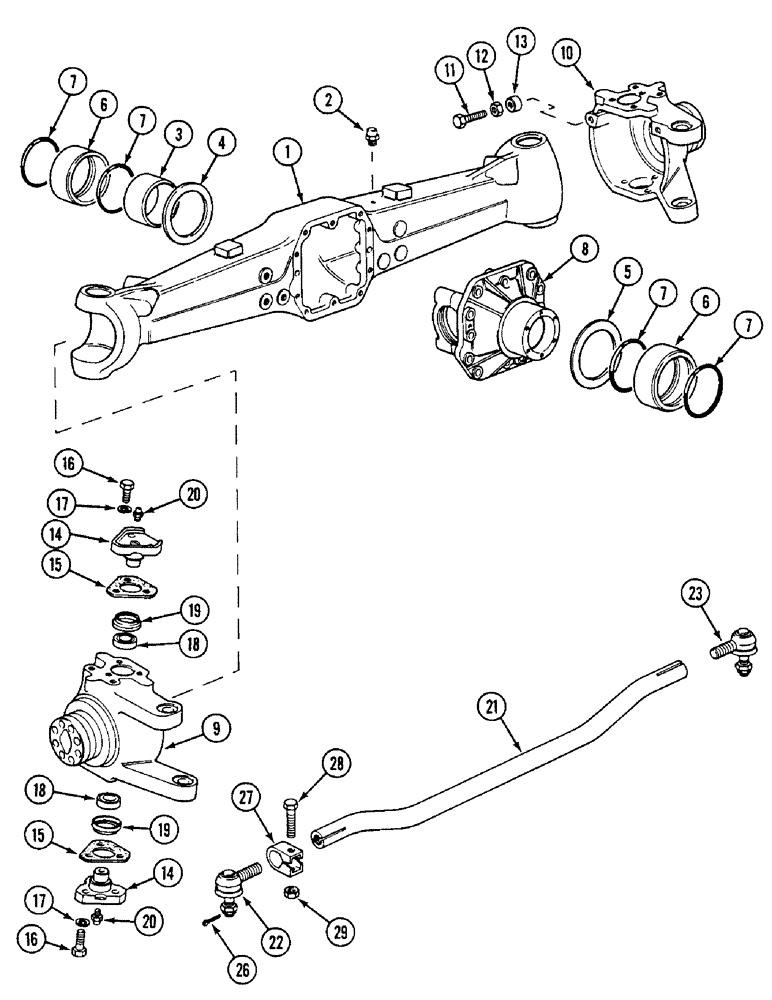

Схема запчастей Case IH 1594 - (5-138) - FRONT AXLE HOUSING, MFD TRACTORS, P.I.N. 11221501 AND AFTER (05) - STEERING
21
2
3
16
15
22
19
10
6
17
26
7
13
20
12
7
23
28
29
8
7
1
27
14
6
15
20
17
18
5
14
4
16
7
9
11
19
18

Артикул

Название

Примечание

Количество

1

K395018

HOUSING

- front axle (Carraro 118979)

1шт.

2

1966149C1

BREATHER

- axle housing

1шт.

3

K965266

BUSHING

SLEEVE - bushing (Carraro 101566/1)

1шт.

4

K395022

WASHER

- thrust, front (Carraro 115776)

1шт.

5

K395023

WASHER,115.3mm ID x 145mm OD x 5mm Thk

- thrust, rear (Carraro 115777)

1шт.

6

K965265

BUSHING

- steel (Carraro 101575/1)

2шт.

7

K965267

O-RING,0.07" Thk x 4.489" ID

RING - sealing (Carraro 28103)

4шт.

8

K395118

DIFFERENTIAL

HOUSING - differential. See Figure 5-130

1шт.

9

K395133

HOUSING

- stub axle, left-hand (Carraro 118611)

1шт.

10

K395134

HOUSING

- stub axle, right-hand (Carraro 118610)

1шт.

11

K395032

BOLT

- housing stop, M12 x 60 mm (Carraro 116453)

4шт.

12

K965369

JAM NUT

- lock, M12 (Carraro 22123)

4шт.

13

K965373

WASHER

- (Replaces K395132 spacer)

16шт.

14

K395035

PIN

- bearing (Carraro 115729)

4шт.

15

K395036

SHIM,52mm ID x 116mm OD x 0.1mm Thk

(Carraro 115733) 0.10mm Thk

1шт.

15

K395037

SHIM,52mm ID x 98mm OD x 0.19mm Thk

(Carraro 115734) 0.19mm Thk

1шт.

15

K395038

SHIM,52mm ID x 98mm OD x 0.35mm Thk

(Carraro 115735) 0.35mm Thk

1шт.

16

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm (Carraro 20920)

12шт.

17

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

12шт.

18

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

BEARING - roller (Carraro 115714)

4шт.

19

K395039

SEAL

- bearing (Carraro 115715)

4шт.

20

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

4шт.

21

K395051

ROD

- track (Carraro 118980)

1шт.

22

K260250

BALL JOINT

ROD END - track, left-hand (Carraro 88759)

1шт.

K260254 AND K260250 CARRARO HAS MADE CHANGE ON THESE BALL JOINT'S.IN THE PARTS BOOKS AND PRINT,THIS SHOWS A HOLE WHERE A COTTER PIN GOES THRU TO HOLD ON A NUT.THIS HOLE HAS BEEN REMOVED AND NO LONGER REQUIRES THE PIN.THE BALL JOINTS RECEIVED WITHOUT A HOLE REQUIRES A NEW LOCKING NUT (102894A1)

1шт.

23

K260254

BALL JOINT

ROD END - track, right-hand (Carraro 87031)

1шт.

26

733-4032

COTTER PIN,M4 x 32

PIN, SPLIT (COTTER), (Carraro 25575) M4 x 32

2шт.

27

N8904

CLAMP

- track rod (Carraro 114840) (Replaces K205147)

2шт.

28

N8905

BOLT

- M16 (Carraro 21199) (Replaces K205151)

2шт.

29

K260157

NUT

- self-locking M16 (Carraro 22440)

2шт.

Выбрано товаров: 30
