(5-134) - FRONT AXLE DRIVE SHAFT, MFD TRACTORS, PRIOR TO P.I.N. 11221501

Запчасти Case IH 1594 (5-134) - FRONT AXLE DRIVE SHAFT, MFD TRACTORS, PRIOR TO P.I.N. 11221501 (05) - STEERING

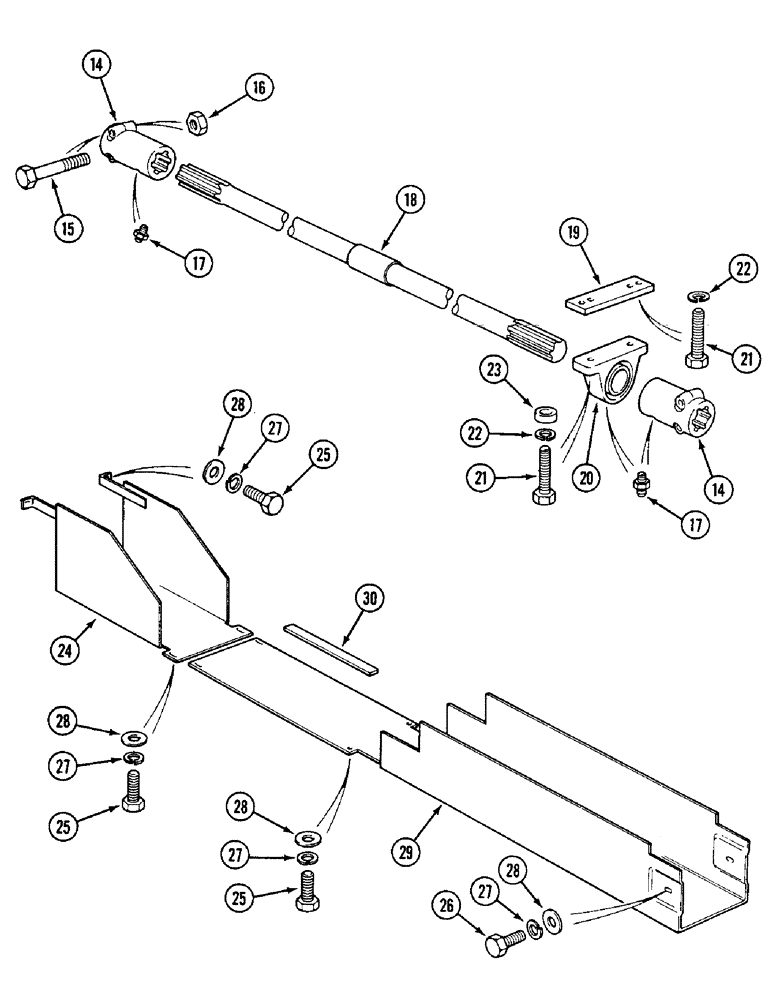

Схема запчастей Case IH 1594 - (5-134) - FRONT AXLE DRIVE SHAFT, MFD TRACTORS, PRIOR TO P.I.N. 11221501 (05) - STEERING
20
15
22
21
29
14
28
25
28
26
27
27
25
27
17
18
16
22
23
14
19
28
27
24
30
28
25
17
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

14

K260761

SPLINED COUPLING

SLEEVE - coupling (Carraro 102033)

2шт.

15

514-723

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

- hex, 10 - 1.25 x 60 mm (Carraro 21105)

4шт.

16

K965414

NUT

- M10 (Carraro 22411)

4шт.

17

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, , Carraro 24210 M6 x 1, 16mm lg

2шт.

18

K260161

DRIVE SHAFT

SHAFT - axle drive (Carraro 108212)

1шт.

19

K260174

BUSHING

SPACER - support (Carraro 108238)

1шт.

20

K260175

SUPPORT

BEARING AND HOUSING - driveshaft (Carraro 27700)

1шт.

21

K260168

SCREW

BOLT - (Carraro 21484)

4шт.

22

K260173

SPRING

WASHER - lock (Carraro 22917)

4шт.

23

K260172

WASHER

SPACER - (Carraro 23159)

2шт.

24

K260166

GUARD

- front, driveshaft (Carraro 108234)

1шт.

25

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm (Carraro 20778)

6шт.

26

K260169

SCREW

BOLT - 5/16 UNC x 3/4 inch (Carraro 21462)

2шт.

27

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

28

K965421

WASHER

- 8 mm (Carraro 23109)

8шт.

29

K260167

GUARD

- rear, driveshaft (Carraro 108235) (Synchromesh)

1шт.

29

K205190

GUARD

- rear, driveshaft (Carraro 116142) (Power shift)

1шт.

30

K307295

STRIP

- edging guard

2шт.
