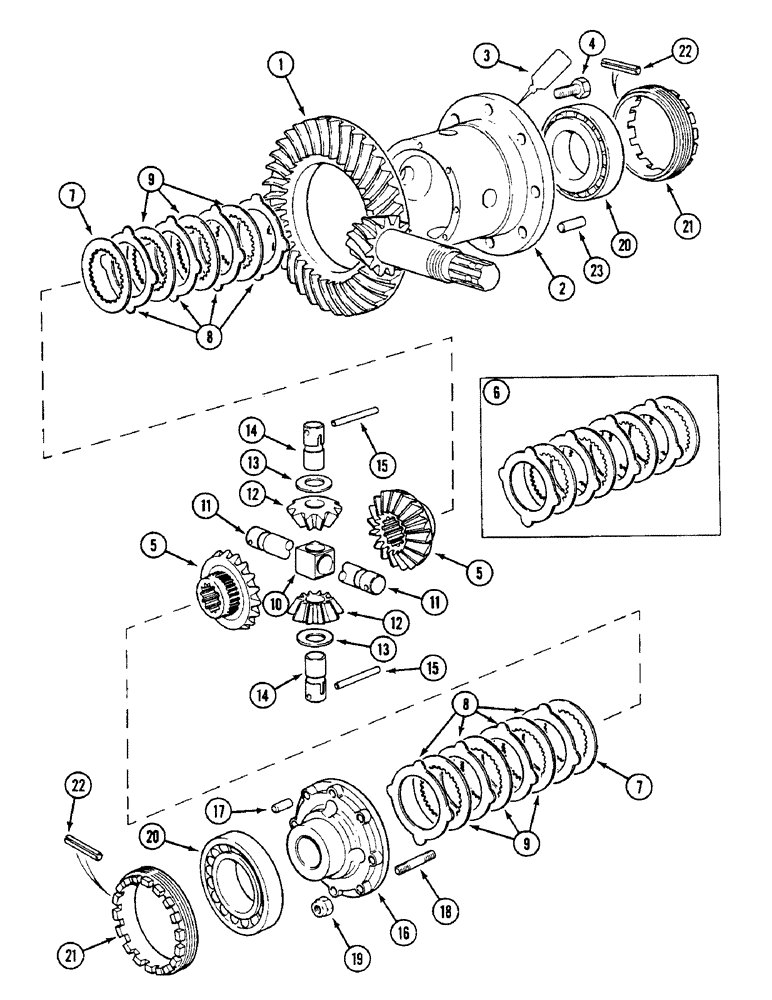

Запчасти Case IH 1594 (5-132) - FRONT AXLE DIFFERENTIAL, MFD TRACTORS, PRIOR TO P.I.N. 11221501 (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
K261977
GEAR, BEVEL
GEAR AND PINION - 12/40 ratio (Carraro 65430)
1шт.
Synchromesh tractors prior to P.I.N. 11221501, use K261013. Power shift tractors prior to P.I.N. 11219488, use K261013. Power shift tractors P.I.N. 11219488 and after but prior to P.I.N. 11221501, use K261977.
1шт.
1
K261013
GEAR
AND PINION - 10/40 ratio (Carraro 65357)
1шт.
Synchromesh tractors prior to P.I.N. 11221501, use K261013. Power shift tractors prior to P.I.N. 11219488, use K261013. Power shift tractors P.I.N. 11219488 and after but prior to P.I.N. 11221501, use K261977.
1шт.
2
K261976
CAGE
- differential (Carraro 115824)
1шт.
3
K962357
ADHESIVE
SEALANT - loctite 542
1шт.
4
K261975
SCREW
BOLT - M12 x 22 mm (Carraro 21130)
8шт.
5
K260774
GEAR
WHEEL - bevel (Carraro 112744)
2шт.
6
K261651
PLATE
PACK - friction, Includes: Ref. 7 - 9
2шт.
7
NSS
NOT SOLD SEPARAT
PLATE - backing, 2.8 mm (Carraro 113884)
1шт.
7
NSS
NOT SOLD SEPARAT
PLATE - backing, 2.7 mm (Carraro 113883)
1шт.
8
NSS
NOT SOLD SEPARAT
PLATE - friction, outer, 1.3 mm (Carraro 113880)
4шт.
9
NSS
NOT SOLD SEPARAT
PLATE - friction, inner, 1.6 mm (Carraro 113879)
3шт.
10
K965353
BLOCK
- pin (Carraro 84171)
1шт.
11
K965352
PIN
- block (Carraro 70270)
1шт.
12
E43052
GEAR
PINION GEAR - differential (Carraro 109848)
1шт.
13
1967521C1
WASHER
WASHER - special
4шт.
14
K965354
PIN
- pinion (Carraro 84167)
2шт.
15
K965349
PIN
- dowel (Carraro 70273)
3шт.
16
K260176
PLATE
- end (Carraro 104315)
1шт.
17
K260177
PIN
DOWEL - plate (Carraro 72259)
2шт.
18
K260180
STUD
- plate (Carraro 104407)
6шт.
19
K260181
NUT
- self-locking (Carraro 22412)
6шт.
20
K260178
BEARING
- taper roller (Carraro 27311)
2шт.
21
K260179
LOCK
RING - lock (Carraro 96914)
2шт.
22
838-5422
LOCK PIN,M4 x 22, Slotted
PIN - roll
2шт.
23
614-8030
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
HH, CL 8.8, M8 x 1.25 x 30
2шт.
