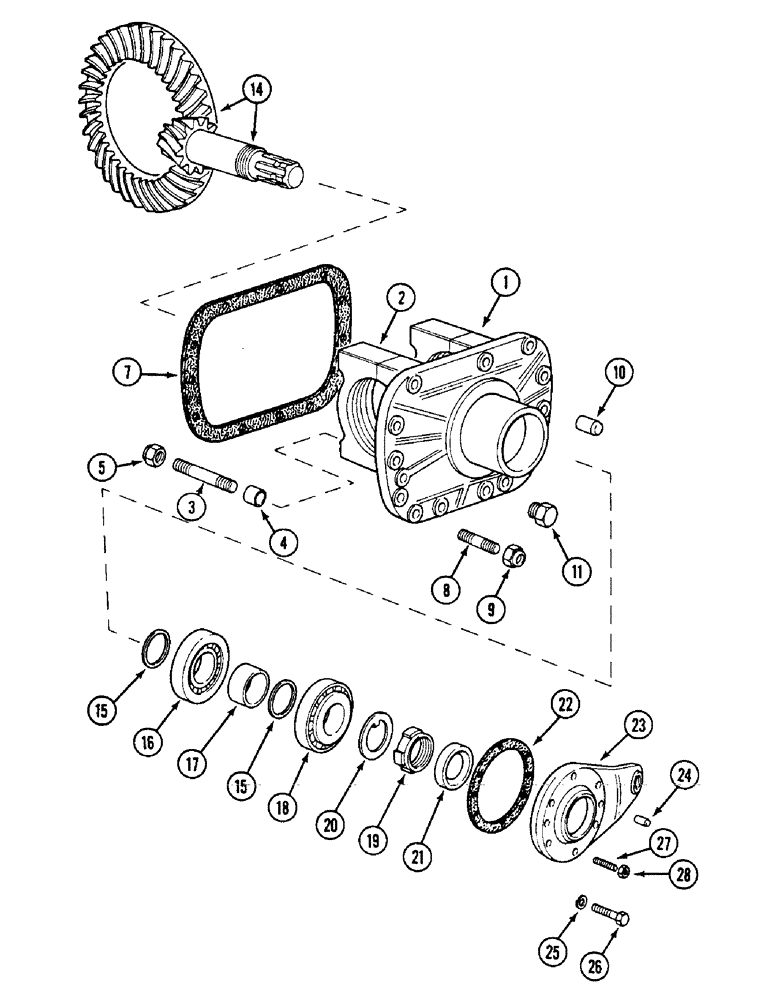

Запчасти Case IH 1594 (5-130) - FRONT AXLE DIFFERENTIAL HOUSING, MFD TRACTORS, PRIOR TO P.I.N. 11221501 (05) - STEERING

1

K260159

HOUSING

- differential (Carraro 100930/1), Includes: Ref. 2 - 5

1шт.

2

K262737

CAP

- hub, Order also K691285 Seal

2шт.

3

K260158

STUD

- bearing cap (Carraro 97138)

4шт.

4

K260153

RING

DOWEL - ring (Carraro 94205)

4шт.

5

K260157

NUT

- self-locking M16 (Carraro 22440)

4шт.

7

K260141

GASKET

- axle housing (Carraro 97136)

1шт.

8

K965253

STUD

PLUG - differential housing (Carraro 96831)

10шт.

9

905834R1

THIN NUT,M12 x 1.25, Thin

Hex M12 x 1.25, Thin

10шт.

10

1966138C1

DOWEL

PIN - dowel (Carraro 87660)

1шт.

11

110782A1

PLUG, DRAIN

PLUG - 24 mm (Carraro 92269)

1шт.

14

REF

INSTRUCTION

GEAR AND PINION - differential, See Figure 5-132

1шт.

15

K965280

SHIM,2.50mm Thk

(Carraro 98427) 2.50mm Thk

1шт.

15

K965282

SHIM,2.60mm Thk

(Carraro 98426) 2.60mm Thk

1шт.

15

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

(Carraro 98425) 2.70mm Thk

1шт.

15

K965286

SHIM,2.85mm Thk

(Carraro 98424) 2.80mm Thk

1шт.

15

K965288

SHIM,2.90mm Thk

(Carraro 98244) 2.90mm Thk

1шт.

15

K965290

SPACER

SHIM - 3.0 mm (Carraro 98239)

1шт.

15

K965292

SHIM,3.10mm Thk

(Carraro 98240) 3.10mm Thk

1шт.

15

K965293

SHIM,3.15mm Thk

(Carraro 100163) 3.15mm Thk

1шт.

15

K965294

SHIM,3.20mm Thk

(Carraro 98241) 3.20mm Thk

1шт.

15

K965295

SHIM,3.25mm Thk

(Carraro 100164) 3.25mm Thk

1шт.

15

K965296

SHIM,3.30mm Thk

(Carraro 98242) 3.30mm Thk

1шт.

15

K965298

SHIM,3.40mm Thk

(Carraro 98243) 3.40mm Thk

1шт.

16

K965357

BEARING

- pinion (Carraro 27406)

1шт.

17

1349058C1

SPACER

- bearing, Order also 1349059C1

1шт.

18

1964249C1

TAPERED BEARING,40 mm ID x 90 mm OD x 25.25 mm

BEARING - pinion

1шт.

19

K261014

RING NUT,M40 x 1.5

RING - nut

1шт.

20

K261065

LOCK WASHER

- special (Carraro 113717)

1шт.

21

K965361

OIL SEAL,35mm ID x 55mm OD x 10mm Thk

- oil (Carraro 25372) (Prior to axle DB15/2460)

1шт.

21

N8895

OIL SEAL

- oil (Carraro 118674) (Axle DB15/2460 and after)

1шт.

22

K965364

GASKET

- flange (Carraro 96932)

1шт.

23

K262148

LEVER

FLANGE - housing (Prior to axle DB15/2460), Order also 1967640C1

1шт.

23

K262148

LEVER

FLANGE - bearing (Carraro 118402) (Axle DB15/2460 and after)

1шт.

24

K260163

PIN

DOWEL - locating (Carraro 79582)

1шт.

25

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

26

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

(Prior to axle DB15/2354) Hex, M8 x 40, 8.8

6шт.

27

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm, class 10.9 (Axle DB15/2354 and after)

6шт.

28

E45158

STUD

NUT - lock, (Carraro 22407) (Axle DB15/2354 and after)

6шт.
