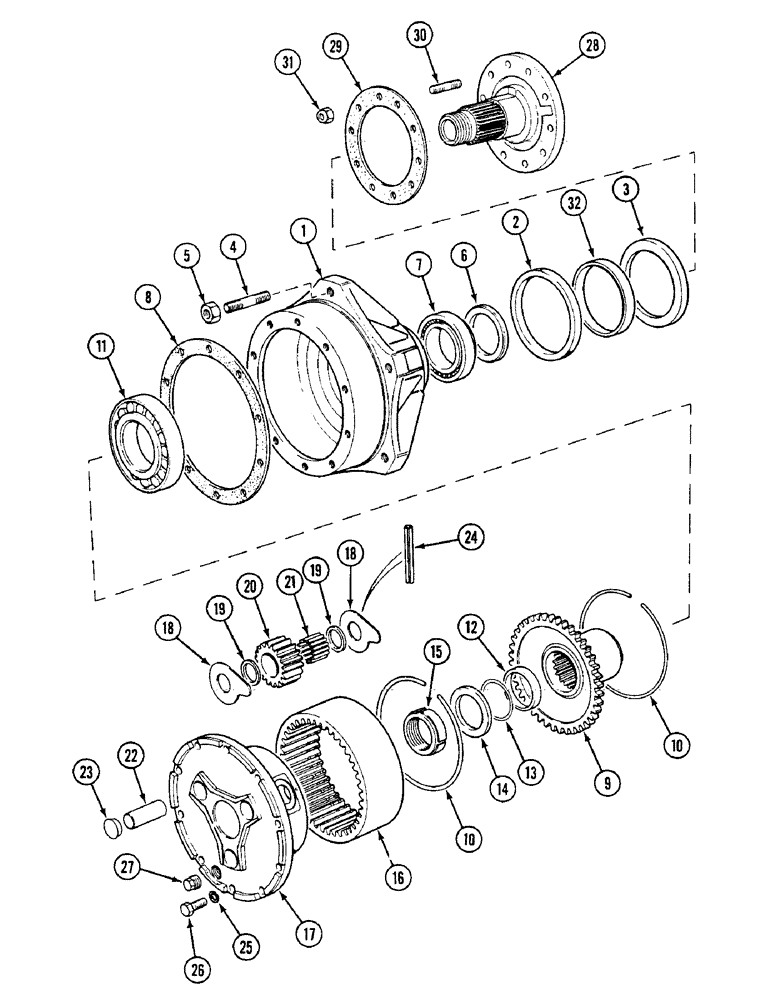

Запчасти Case IH 1594 (5-128) - FRONT HUBS AND PLANETARIES, MFD TRACTORS, PRIOR TO P.I.N. 11221501 (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
E45368
HUB
- wheel
2шт.
2
K260216
SEAL
- felt (Carraro 102149) (Prior to axle DB15/2460)
2шт.
3
K956894
SEAL
- bearing (Prior to axle DB15/2460)
2шт.
3
K262147
OIL SEAL
- oil (Carraro 118677) (Axle DB15/2460 and after)
2шт.
4
K956902
STUD
- M18 x 62 mm for steering wheel center
12шт.
4
K260218
STUD
- wheel fixing (Carraro 106199)
12шт.
5
K395089
WHEEL NUT
- M18, Order also K395083 Washer
12шт.
6
K260222
RING
WASHER - bearing (Carraro 104086)
2шт.
7
K260221
BEARING
- inner (Carraro 27253)
2шт.
8
K260220
GASKET
- hub (Carraro 97170)
2шт.
9
K260208
CARRIER
GEAR - support (Carraro 97016/2)
2шт.
10
K260204
SPRING
RING - snap (Carraro 97921)
4шт.
11
K956906
BEARING
- outer
2шт.
12
K260209
BUSHING
SPACER - gear (Carraro 97021)
2шт.
13
1967518C1
SPACER
SHIM - 0.5 mm
1шт.
13
1967519C1
SPACER
SHIM - 0.3 mm
1шт.
13
1967520C1
SPACER
SHIM - 0.1 mm
1шт.
14
K956912
WASHER
- spacer
2шт.
15
K956913
LOCK NUT
- lock
2шт.
16
K260205
GEAR
- internal (Carraro 98634)
2шт.
17
K956996
COVER
- hub
2шт.
18
K260200
BEARING WASHER
RETAINER - bearing (Carraro 109480)
12шт.
19
K260201
RETAINER
WASHER - bearing (Carraro 100036)
12шт.
20
K260202
GEAR
SHAFT AND BEARING - pump (Carraro 100011)
6шт.
21
K260211
ROLLER BEARING
S - bearing, gear (Carraro 100035)
180шт.
22
K956917
AXLE PIN
SHAFT - gear
6шт.
23
K260198
PLUG
- shaft (Carraro 100008)
6шт.
24
932252R1
LOCK PIN,M4 x 50, Slotted
6шт.
25
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
20шт.
26
K260196
BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd
- M12 x 35 mm (Carraro 20921)
20шт.
27
K965299
SCREW
PLUG - level (Carraro 77462)
2шт.
28
K262145
HUB
AXLE - stub, Order also N8897 Oil Seal
2шт.
29
K260143
GASKET
- (Carraro 97176)
2шт.
30
K260144
STUD
- M14 (Carraro 83807)
20шт.
31
905873R1
NUT,M14 x 1.5, G8
NUT - self-locking
20шт.
32
1966196C1
RING
SLEEVE - wear
1шт.
Выбрано товаров: 36
