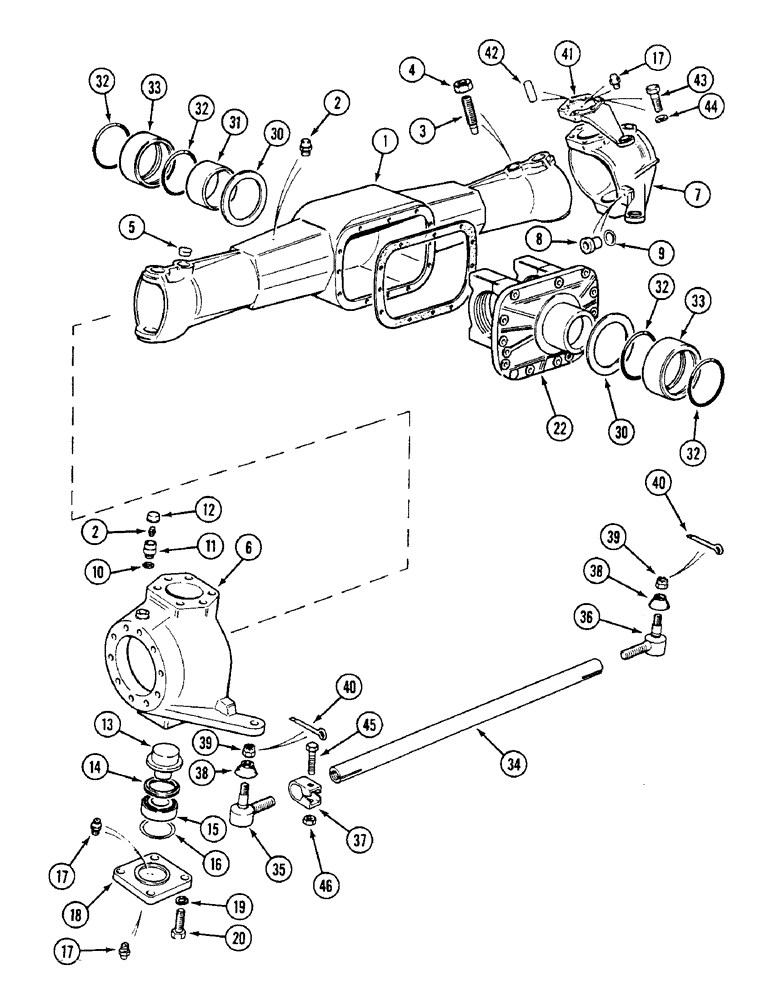

Запчасти Case IH 1594 (5-126) - FRONT AXLE HOUSING, MFD TRACTORS, PRIOR TO P.I.N. 11221501 (05) - STEERING

1

K260134

SHAFT

HOUSING - axle, front (Carraro 96915)

1шт.

2

1966149C1

BREATHER

- axle housing

3шт.

3

K965232

BOLT,M10 x 1.25 x 35mm, Cl 10.9

SCREW - bearing locating

4шт.

4

825-1414

NUT,M14, Cl 8

- hex, 14 mm

4шт.

5

K260135

PLUG

- axle housing (Carraro 107811)

4шт.

6

K260139

HOUSING

- stub axle, left-hand (Carraro 104824)

1шт.

7

K260140

SHAFT

HOUSING - stub axle, right-hand (Carraro 104828)

1шт.

8

K260154

STOP

- steering (Carraro 101040)

2шт.

9

K260155

SHIM,1.0mm Thk

(Carraro 101043) 1.0mm Thk

1шт.

9

K260156

SHIM,0.5mm Thk

(Carraro 101044) 0.5mm Thk

1шт.

10

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

2шт.

11

K260137

BLEEDER

RETAINER - breather (Carraro 107610)

2шт.

12

K956999

PLUG

COVER

2шт.

13

K260145

PIN

- bearing (Carraro 88404)

2шт.

14

K260146

BAFFLE

SEAL - oil (Carraro 88986/1)

2шт.

15

1964249C1

TAPERED BEARING,40 mm ID x 90 mm OD x 25.25 mm

BEARING

2шт.

16

K260147

SPACER

SHIM - 0.1 mm thick (Carraro 98817)

1шт.

16

1967516C1

SHIM

- 0.3 mm thick

1шт.

16

1967517C1

SHIM

- 0.5 mm thick

1шт.

17

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, , Carraro 24210 M6 x 1, 16mm lg

4шт.

18

K260150

COVER

- (Carraro 102755)

3шт.

19

892-11018

LOCK WASHER,M18

WASHER - spring

12шт.

20

K260152

SCREW

BOLT - M18 x 55 mm (Carraro 21207)

12шт.

22

K260159

HOUSING

- differential (Carraro 100930/1), See Figure 5-130

1шт.

30

K965264

WASHER

- thrust (Carraro 83352)

1шт.

31

K965266

BUSHING

SLEEVE - bushing (Carraro 101565/1)

1шт.

32

K965267

O-RING,0.07" Thk x 4.489" ID

RING - sealing (Carraro 28103)

4шт.

33

K965265

BUSHING

- steel (Carraro 101575/1)

2шт.

34

K205148

ROD

- track (Carraro 114853)

1шт.

35

K260250

BALL JOINT

ROD END - track, left-hand (Carraro 88759)

1шт.

K260254 AND K260250 CARRARO HAS MADE CHANGE ON THESE BALL JOINT'S.IN THE PARTS BOOKS AND PRINT,THIS SHOWS A HOLE WHERE A COTTER PIN GOES THRU TO HOLD ON A NUT.THIS HOLE HAS BEEN REMOVED AND NO LONGER REQUIRES THE PIN.THE BALL JOINTS RECEIVED WITHOUT A HOLE REQUIRES A NEW LOCKING NUT (102894A1)

1шт.

36

K260254

BALL JOINT

ROD END - track, right-hand (Carraro 87031)

1шт.

37

N8904

CLAMP

- track rod (Carraro 114840) (Carraro 114840)

2шт.

38

K956939

CAP

BOOT - ball joint (Carraro 43962)

2шт.

39

K956938

SLOTTED NUT

- hex (Carraro 22357)

2шт.

40

733-4032

COTTER PIN,M4 x 32

PIN, SPLIT (COTTER), M4 x 32

2шт.

41

K260532

LEVER

ARM - steering, axle (Carraro 102508)

1шт.

42

K260249

DOWEL

- (Carraro 88408)

2шт.

43

K260247

BOLT

- M18 (Carraro 21208)

4шт.

44

892-11018

LOCK WASHER,M18

WASHER - spring

4шт.

45

N8905

BOLT

- M16

2шт.

46

K260157

NUT

- self-locking M16(Carraro 22440)

2шт.
