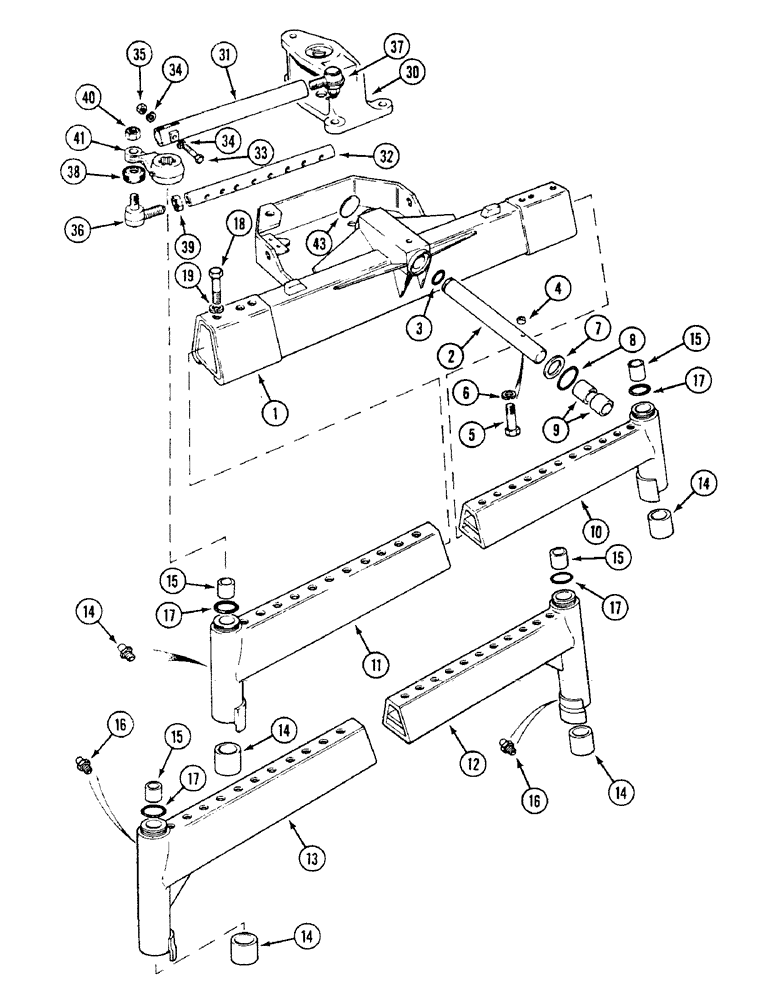

Запчасти Case IH 1594 (5-124) - FRONT AXLE BEAM, TWO-WHEEL DRIVE TRACTORS (05) - STEERING

1

K956665

SHAFT

BEAM - center, 60 to 80 inch (1524 to 2 032 mm) track widths, (4 holes)

1шт.

1

K957287

SHAFT

BEAM - center, 64 to 88 inch (1676 to 2 235 mm) track widths, (6 holes)

1шт.

2

K947516

TRUNNION

PIN - trunnion

1шт.

3

K15596

RING,3.63mm Thk x 31.34mm ID

O-RING - 1-1/4 inch (31 mm) ID

1шт.

4

K913092

NUT

BUSHING - threaded

1шт.

5

K600505

BOLT

- 3/8 UNC x 2-3/4 inch

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

K947188

FRICTION WASHER

WASHER - thrust

2шт.

8

K24764

O-RING

- 2-5/8 inch (67 mm) ID

2шт.

9

K15597

BUSHING

- main frame

4шт.

10

K962815

BEAM

EXTENSION - Left, 60-88 inch (Std clearance), Includes: Ref. 14 & 15

1шт.

10

K260502

BEAM

EXTENSION - Left, 64-88 inch (Std clearance), Includes: Ref. 14 & 15

1шт.

11

K962816

BEAM

EXTENSION - Right, 60-80 inch (Not North America), Includes: Ref. 14 & 15

1шт.

11

K260503

BEAM

EXTENSION - Right, 60-88 inch, Includes: Ref. 14 & 15

1шт.

12

K962972

AXLE

BEAM EXTENSION - Left, 60-88 inch (High clearance) (North America), Includes: Ref. 14 & 15

1шт.

13

K962973

SHAFT

BEAM EXTENSION - Right, 60-88 inch (High clearance) (North America), Includes: Ref. 14 & 15

1шт.

14

K621367

BUSHING

- lower

1шт.

15

K262775

COMPOSITE RING

BUSHING - upper

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

17

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

2шт.

18

K601661

BOLT

- 7/8 UNC x 3-1/4 inch

4шт.

18

K601661

BOLT

- 7/8 UNC x 3-1/4 inch

6шт.

19

K626350

SPRING

WASHER - lock, 7/8 inch

4шт.

30

REF

INSTRUCTION

FORK - steering cylinder, See Figure 5-117

1шт.

31

K945876

TUBE,25.8 mm ID x 16.25 " L

- spacer, 16 inch (406 mm)

2шт.

31

K204342

TUBE

- spacer, 17-1/2 inch (445 mm)

2шт.

32

K945878

ROD

- track, 16 inch (406 mm)

2шт.

32

K204345

ROD

- track, 17-3/4 inch (451 mm)

2шт.

33

K609027

BOLT

- 3/8 UNC x 2-1/4 inch

2шт.

34

492-11038

LOCK WASHER,3/8"

2шт.

35

425-106

NUT,3/8"-16, Cl 5

2шт.

36

K207722

BALL JOINT

SOCKET ASSEMBLY - ball

2шт.

37

K207719

BALL JOINT

SOCKET ASSEMBLY - ball, 60 to 80 inch track widths

2шт.

37

K207720

BALL JOINT

SOCKET - ball housing, 64 to 88 inch track widths, Includes: Ref. 38 & 39

2шт.

38

K962155

CAP

SEAL - dirt

1шт.

39

K622500

LOCK NUT

- lock, 3/4 inch

1шт.

40

131-377

LOCK NUT,5/8"-11, GC

NUT - lock, ball joint, 5/8 inch UNC

1шт.

41

K942943

LEVER

- steering

2шт.

43

41-1626

PLUG,Cup, 1 5/8", Stainless

- core, (44 mm) diameter

1шт.
