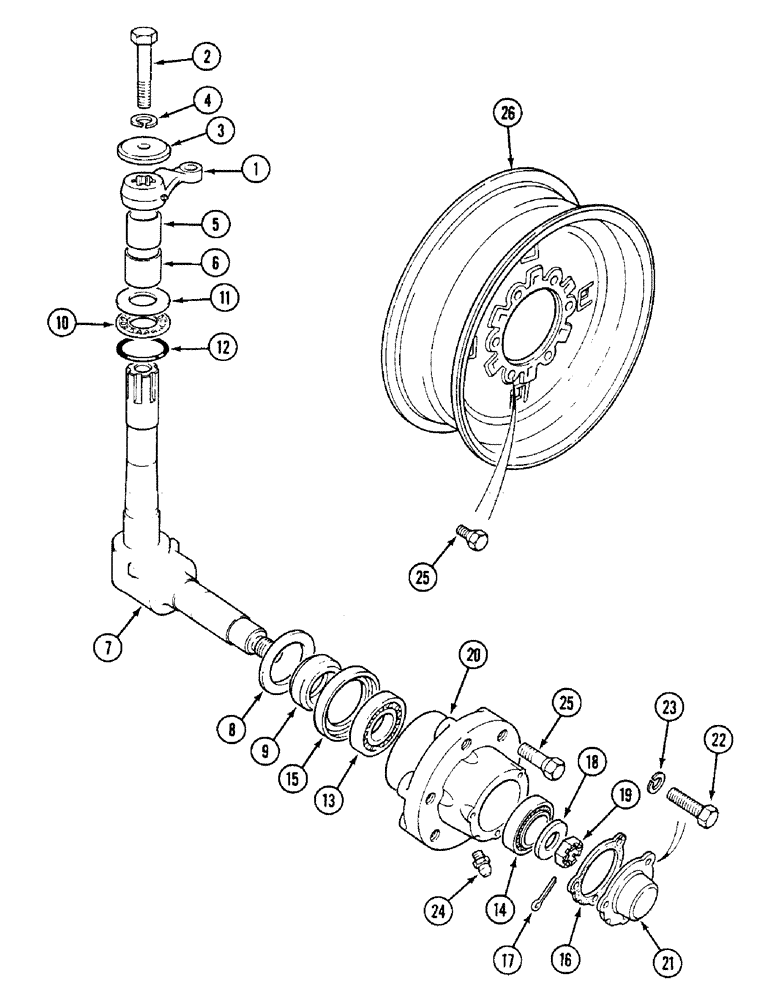

Запчасти Case IH 1594 (5-122) - STUB AXLES, HUBS AND FRONT WHEELS, TWO-WHEEL DRIVE TRACTORS (05) - STEERING

1

K942943

LEVER

- steering, steering, 60 to 80 inch (1524 to 2032 mm) track

2шт.

1

K204346

LEVER

- steering, 64 to 88 inch (1676 to 2235 mm) track

2шт.

2

K601213

BOLT

- 5/8 UNC x 3-1/4 inch

2шт.

3

K15595

WASHER

- 5/8 inch (16 mm) special

2шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

K262775

COMPOSITE RING

BUSHING - upper, beam extension

2шт.

6

K621367

BUSHING

- lower, beam extension

2шт.

7

K965838

SHAFT

STUB AXLE ASSEMBLY - 5.820 inch to spline, Includes: Ref. 8 & 9

2шт.

7

K962019

STEERING KNUCKLE

STUB AXLE ASSEMBLY - standard clearance axle, 9.820 inch to spline, Includes: Ref. 8 & 9

2шт.

7

K962974

SHAFT

STUB AXLE ASSEMBLY - high clearance axle, 16.310 inch to spline, Includes: Ref. 8 & 9

2шт.

8

K910429

SPACER

SEAL - dirt

1шт.

9

K910428

RING RACE

SLEEVE - oil seal

1шт.

10

K620180

THRUST BEARING

BEARING - thrust

2шт.

11

K626692

DISC

WASHER - thrust bearing

4шт.

12

K24764

O-RING

- 2-5/8 inch (67 mm) ID

2шт.

REF

INSTRUCTION

BEARING AND SEAL KIT - stub axle, Includes: Ref. 13 - 17

2шт.

13

REF

INSTRUCTION

BEARING - roller, tapered, inner, Order B17220 and ST2118

1шт.

14

K19085

TAPERED BEARING,38.1mm ID x 72.02mm OD x 17.02mm W

BEARING - roller, tapered, outer

1шт.

15

A27130

OIL SEAL

- oil

1шт.

16

K15344

GASKET,0.25mm Thk

- hub cap

1шт.

17

432-1024

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

1шт.

18

K626321

WASHER

- idler shaft, 3/4 inch (19 mm)

2шт.

19

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

- 3/4 inch UNF

2шт.

20

K916377

HUB

- front

2шт.

21

K908913

CAP

- hub

2шт.

22

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

6шт.

23

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

6шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

25

K600875

BOLT

- wheel, 1/2 UNC x 1-7/8 inch

12шт.

26

3221928R1

WHEEL

- front, 5.50F x 20 inch, fits 7.50-20 inch tires

2шт.

26

G57046

WHEEL ASSY.

WHEEL - front, 5.50F x 16 inch, fits 7.50-16 inch tires

2шт.

26

K301430

WHEEL

- front, W8 x 16 inch, fits 10.00-16 inch tires

2шт.

26

K309951

WHEEL

- front, 8.00LBH x 15 inch, fits 11L x 15 inch tubeless tires (Not North America)

2шт.
