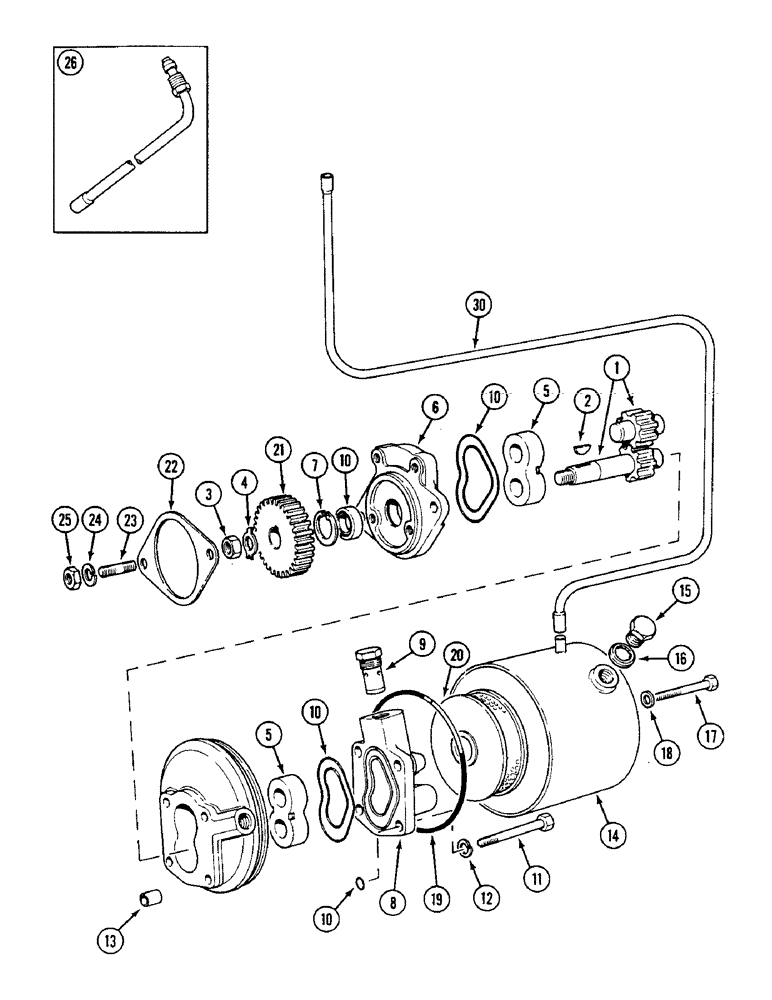

Запчасти Case IH 1594 (5-114) - STEERING PUMP AND RESERVOIR (05) - STEERING

K207452

PUMP

AND RESERVOIR, Includes: Ref. 1 - 4

1шт.

1

K964934

GEAR

ROTOR - pump, set of

1шт.

2

K19604

KEY

- Woodruff No. 405

1шт.

3

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

4

K626380

WASHER

- tab, gear, 7/16 inch

1шт.

5

K962189

BEARING

- pump

2шт.

6

K261641

FLANGE

- mounting

1шт.

7

K962097

RING, SNAP

RING - snap

1шт.

8

K261642

FLANGE

COVER - pump body

1шт.

9

K964632

VALVE

- relief, 1850 PSI (12 756 kPa)

1шт.

10

K964935

SEAL

KIT - seals and O-Rings

1шт.

11

K965769

BOLT

- 3/8 UNC x 3-1/8 inch

4шт.

12

492-11038

LOCK WASHER,3/8"

4шт.

13

K964920

PIN

DOWEL - ring

2шт.

14

K261639

RESERVOIR

-

1шт.

15

K623849

PLUG

- 1/2 inch, Order also K626317

1шт.

16

K626769

WASHER

- sealing

1шт.

17

K964930

BOLT

- 5/16 x 2-3/8 inch

1шт.

18

K15498

SEALING WASHER

WASHER - sealing, 5/16 inch (8 mm)

1шт.

19

K965217

RING

- sealing, Serial Range: reservoir-pump

1шт.

20

K964954

FILTER

ELEMENT - filter

1шт.

21

K945098

PINION

GEAR - 28 teeth

1шт.

22

K919729

GASKET,0.76mm Thk

- plate to carrier plate

1шт.

23

K608161

STUD

- 5/16 UNC x 1 inch

2шт.

24

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

25

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

2шт.

26

K204720

PIPE - breather (Prior to engine P.I.N. 11468040)

1шт.

30

K210368

PIPE,0.312" OD

TUBE - breather (Engine P.I.N. 11468040 and after)

1шт.
