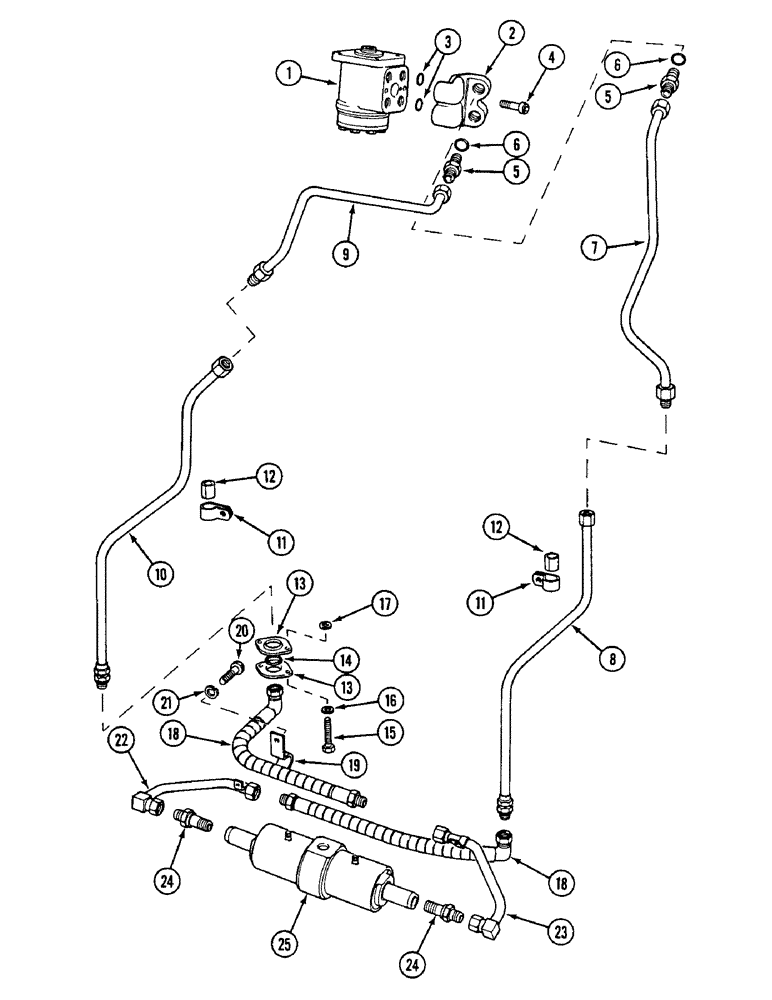

Запчасти Case IH 1594 (5-110) - STEERING CYLINDER AND TUBES, TWO-WHEEL DRIVE TRACTORS WITH CAB (05) - STEERING

1

REF

INSTRUCTION

VALVE - steering, See Figure 5-106

1шт.

2

K207388

BLOCK

- valve connections

1шт.

3

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

4шт.

4

K653941

HEX SOC SCREW,M10 x 1 x 30mm, Cl 12.9

- M10 x 30 mm

2шт.

4a

B92570

BOLT

- longer (Later production)

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

6

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

7

K207444

PIPE

TUBE - left-hand, upper

1шт.

8

K202292

PIPE,0.5" OD x 16.5, 10.875" L

TUBE - left-hand, lower

1шт.

9

K207445

PIPE

TUBE - right-hand, upper

1шт.

10

K206655

PIPE,0.5" OD x 10.562, 18.344" L

TUBE - right-hand, lower

1шт.

11

K621717

CLIP

CLAMP - tube

2шт.

12

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE - nylon

2шт.

13

K945907

RING, SNAP

- clamp

4шт.

14

K628856

O-RING,0.649" ID x 0.25" Width

- 5/8 inch (16 mm) ID

2шт.

15

K602704

SCREW

BOLT - 1/4 UNC x 7/8 inch

4шт.

16

K626662

WASHER

- 1/4 inch

8шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

18

K202295

HOSE

TUBE - flexible

2шт.

19

K952958

CLIP

CLAMP - tube

1шт.

20

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

- machine, No. 10 NC x 1/2 inch

1шт.

21

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

22

K205929

PIPE,7.531, 5.906" L

TUBE - right-hand

1шт.

23

K205928

PIPE,8.25, 6.062" L

TUBE - left-hand

1шт.

24

K626095

FITTING

UNION - 3/4 inch UNF

2шт.

25

REF

INSTRUCTION

CYLINDER ASSEMBLY, See Figure 5-116

1шт.
