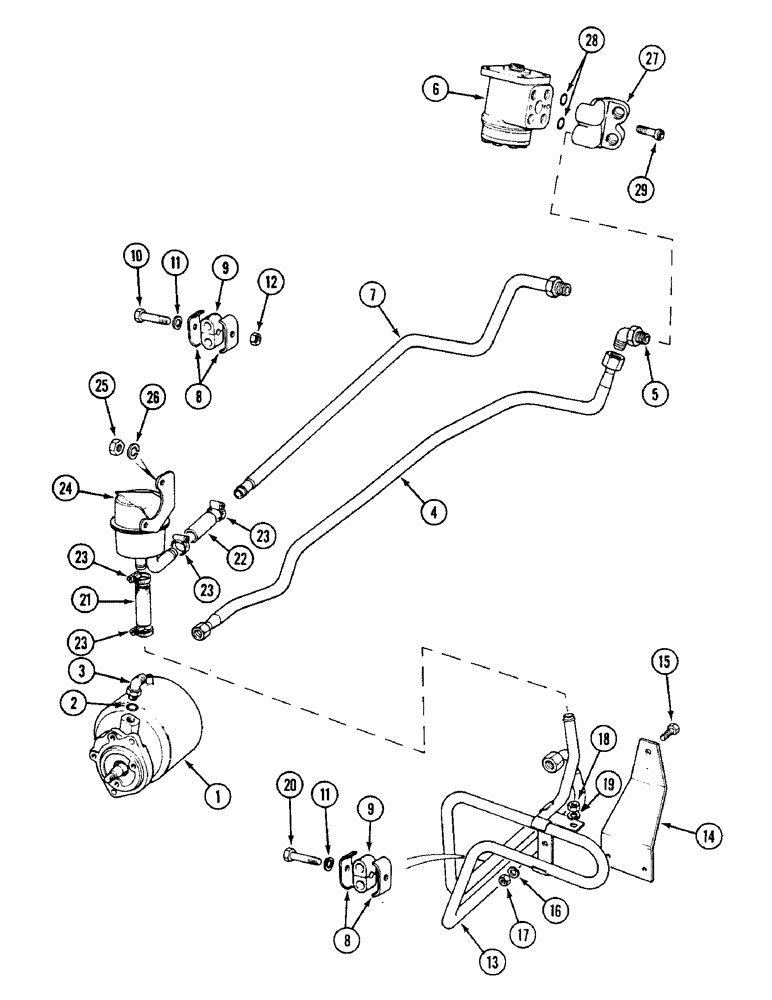

Запчасти Case IH 1594 (5-108) - STEERING PUMP AND TUBES, TRACTORS WITH CAB (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
PUMP AND RESERVOIR - steering, See Figure 5-114 (Replaces K205653)
1шт.
3
K622110
FITTING
ELBOW - 9/16 inch UNF
1шт.
4
K207406
PIPE
TUBE ASSEMBLY -, Serial Range: pump-connector
1шт.
5
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 90 degree, 3/4-16 inch flare x adj O-ring boss
1шт.
6
REF
INSTRUCTION
VALVE ASSEMBLY - steering, See Figure 5-106
1шт.
7
K207407
PIPE
TUBE ASSEMBLY -, Serial Range: connector-reservoir
1шт.
8
K951982
SHIM
CLAMP - tube
4шт.
9
K951993
SLEEVE
- tube
4шт.
10
814-10045
BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8
- hex, 10 - 1.5 x 45 mm
1шт.
11
892-11010
LOCK WASHER,M10
2шт.
12
825-1410
NUT,M10, Cl 8
1шт.
13
K205959
COIL
- cooling
1шт.
14
K304585
BRACKET
- support, coil
1шт.
15
413-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
- hex, 5/16 NC x 5/8 inch
1шт.
16
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
2шт.
17
9635082
NUT,5/16" - 18, Gr 5
- 5/16 inch UNC
2шт.
18
280136
NUT,3/8"-16, G8
1шт.
19
492-11038
LOCK WASHER,3/8"
1шт.
20
413-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
- hex, 5/16 NC x 1-1/2 inch
1шт.
21
REF
INSTRUCTION
HOSE - 5/8 x 9 inch, (97252CX, Serial Range: cut-length)
1шт.
22
K627662
HOSE
- 3/4 x 2-1/2 inch (19 x 64 mm)
1шт.
23
214-1410
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm
4шт.
24
K307655
TANK
RESERVOIR - oil
1шт.
25
9635082
NUT,5/16" - 18, Gr 5
- 5/16 inch UNC
2шт.
26
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
2шт.
27
K207388
BLOCK
- valve connections
1шт.
28
238-6118
O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro
4шт.
29
K653941
HEX SOC SCREW,M10 x 1 x 30mm, Cl 12.9
- M10 x 30 mm
2шт.
29
B92570
BOLT
SCREW - M10 x 30 mm, Allen head for recessed hole (Danfoss)
2шт.
2
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
Выбрано товаров: 30
