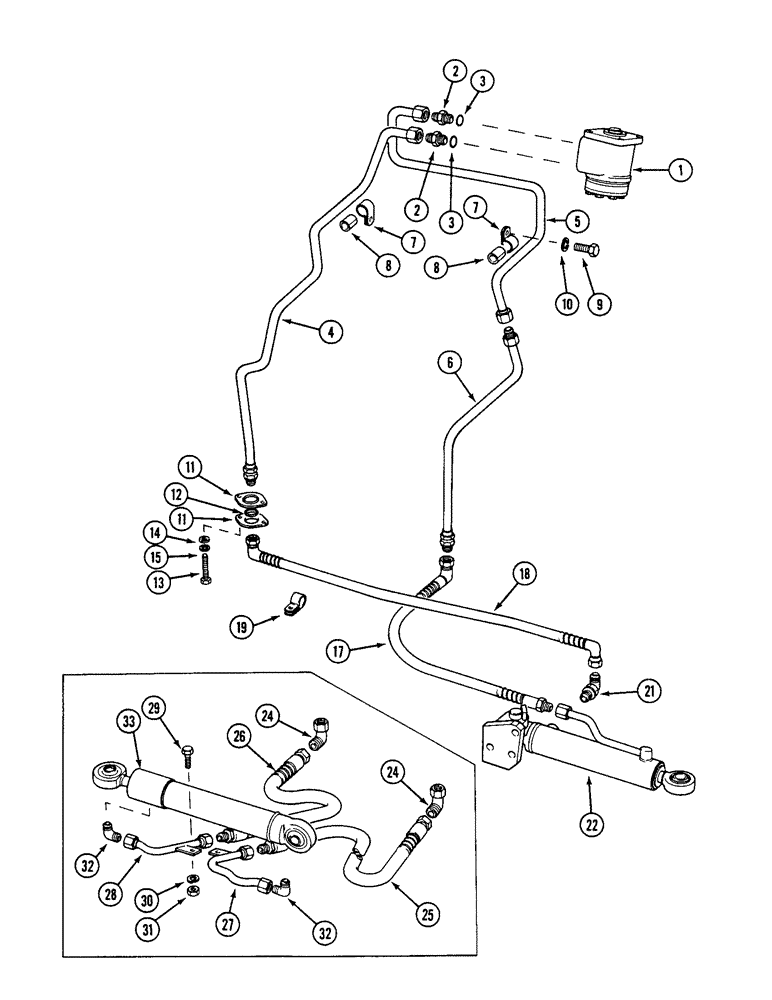

Запчасти Case IH 1594 (5-104) - STEERING CYLINDER AND TUBES, MFD TRACTORS WITHOUT CAB (05) - STEERING

1

REF

INSTRUCTION

STEERING VALVE, See Figure 5-99

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

3

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

4

K204814

HOSE

TUBE - right-hand

1шт.

5

K204843

HOSE

TUBE - upper, left-hand

1шт.

6

K202589

TUBE - lower, left-hand (Replaces K204859)

1шт.

7

K621717

CLIP

CLAMP - tube

2шт.

8

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE - nylon

2шт.

9

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 14 mm

1шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

11

CASK945907

PLATE

- clamp

4шт.

12

K628856

O-RING,0.649" ID x 0.25" Width

- 5/8 inch (16 mm) ID

2шт.

13

K602704

SCREW

BOLT - 1/4 UNC x 7/8 inch

4шт.

14

K626662

WASHER

- 1/4 inch

1шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

17

K210216

HOSE

TUBE - flexible, 3/4 UNF x 30-1/2 inch, P.I.N. 11221501 and after

1шт.

18

K210237

HOSE

TUBE - flexible, 3/4 UNF x 36 inch, P.I.N. 11221501 and after

1шт.

19

K13116

CLIP

- tube, P.I.N. 11221501 and after

1шт.

21

K395116

FITTING

ELBOW - M18 x 3/4 inch UNF (Carraro 117985), P.I.N. 11221501 and after

1шт.

22

K262503

CYLINDER

ASSEMBLY - steering, left-hand, See Figure 5-120, P.I.N. 11221501 and after

1шт.

24

K260228

FITTING

ELBOW - (Carraro 105935), prior to P.I.N. 11221501

2шт.

25

K205101

HOSE ASSY.

TUBE - flexible, left-hand (Carraro 105869), prior to P.I.N. 11221501

1шт.

26

K205100

TUBE

- flexible, right-hand (Carraro 110196), prior to P.I.N. 11221501

1шт.

27

K260277

COLLAR

SPACER - bearing (Carraro 101521), prior to P.I.N. 11221501

1шт.

28

K260226

PIPE

TUBE - rigid, right-hand (Carraro 101520), prior to P.I.N. 11221501

1шт.

29

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, prior to P.I.N. 11221501

1шт.

30

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Prior to P.I.N. 11221501 M8

1шт.

31

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Tube screw (Carraro 22115), prior to P.I.N. 11221501

1шт.

32

K260225

FITTING

ELBOW - cylinder tube (Carraro 101522), prior to P.I.N. 11221501

2шт.

33

K260281

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, See Figure 5-118, prior to P.I.N. 11221501

1шт.
