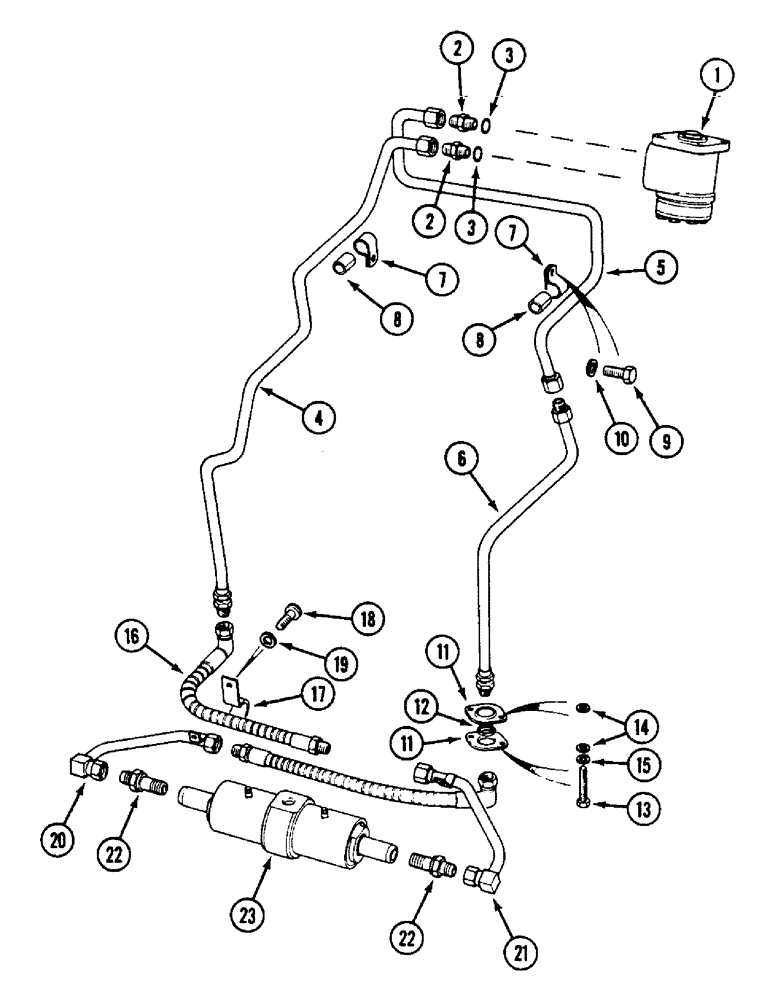

Запчасти Case IH 1594 (5-102) - STEERING CYLINDER AND TUBES, TWO-WHEEL DRIVE TRACTORS WITHOUT CAB (05) - STEERING

1

REF

INSTRUCTION

STEERING VALVE, See Figure 5-99

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

4

K204814

HOSE

TUBE - right-hand

1шт.

5

K204843

HOSE

TUBE - upper, left-hand

1шт.

6

K202859

PIPE ASSY.

TUBE - lower, left-hand (Replaces K204859)

1шт.

7

K621717

CLIP

CLAMP - tube

2шт.

8

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE - nylon

2шт.

9

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 14 mm

1шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

11

K945907

RING, SNAP

- clamp

4шт.

12

K628856

O-RING,0.649" ID x 0.25" Width

- 5/8 inch (16 mm) ID

2шт.

13

K602704

SCREW

BOLT - 1/4 UNC x 7/8 inch

4шт.

14

K626662

WASHER

- 1/4 inch

8шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

K202295

HOSE

TUBE - flexible

2шт.

17

K952958

CLIP

CLAMP - tube

1шт.

18

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

- machine, No. 10 NC x 1/2 inch

2шт.

19

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

20

K205929

PIPE,7.531, 5.906" L

TUBE - right-hand

1шт.

21

K205928

PIPE,8.25, 6.062" L

TUBE - left-hand

1шт.

22

K626095

FITTING

UNION - 3/4 inch UNF

2шт.

23

REF

INSTRUCTION

CYLINDER ASSEMBLY, See Figure 5-116

1шт.
