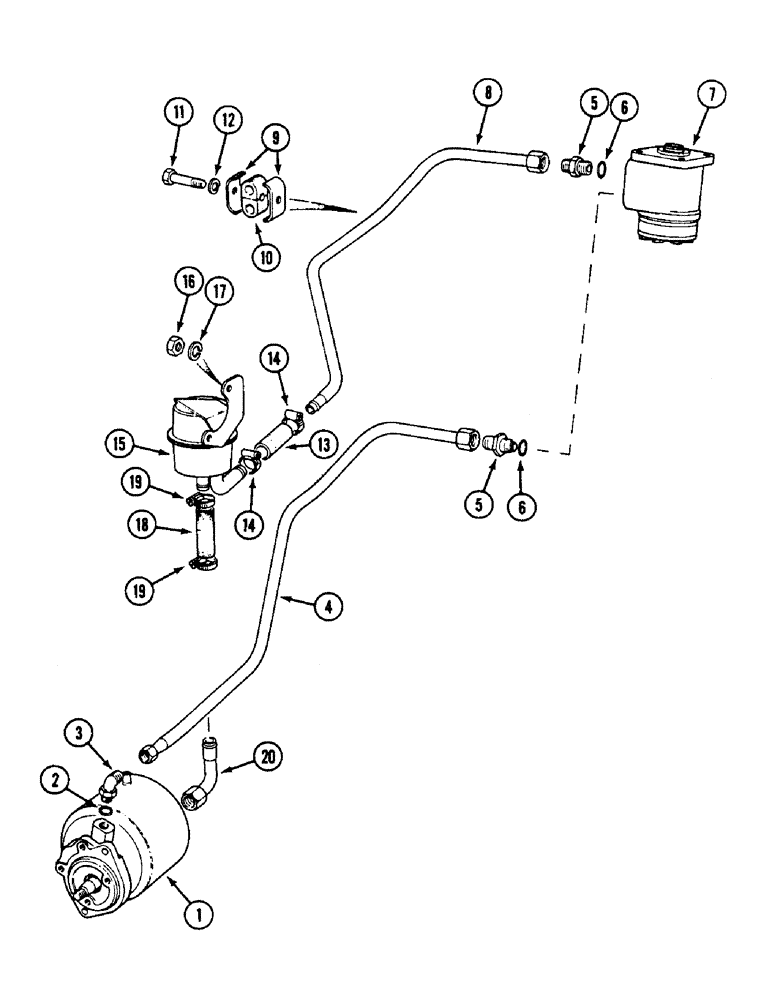

Запчасти Case IH 1594 (5-100) - STEERING PUMP AND TUBES, TRACTORS WITHOUT CAB (05) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY, See Figure 5-115

1шт.

3

K622110

FITTING

ELBOW - 9/16 inch UNF

1шт.

4

K204842

PIPE,0.625" OD

TUBE - pump outlet

1шт.

5

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss

2шт.

6

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

7

REF

INSTRUCTION

STEERING VALVE, See Figure 5-99

1шт.

8

K207843

PIPE

TUBE - gearbox lubrication

1шт.

9

K951982

SHIM

CLAMP - tube

2шт.

10

K951993

SLEEVE

- tube

2шт.

11

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm

1шт.

12

892-11010

LOCK WASHER,M10

1шт.

13

K627662

HOSE

- 3/4 x 2-1/2 inch (19 x 64 mm)

1шт.

14

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

2шт.

15

K307655

TANK

RESERVOIR - oil

1шт.

16

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

2шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

18

REF

INSTRUCTION

HOSE - 5/8 x 5 inch (97252CX, Serial Range: cut-length)

1шт.

19

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

20

K203707

PIPE

TUBE - pump inlet

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
