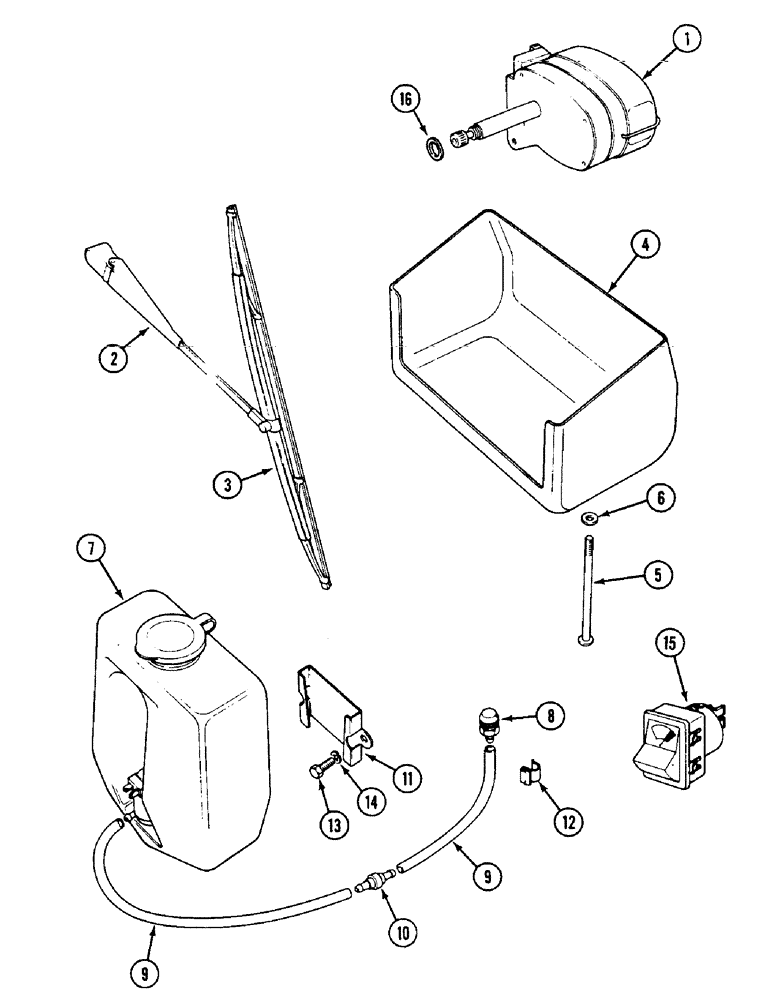

Запчасти Case IH 1594 (4-92) - WINDSHIELD WIPER AND WASHER, TRACTORS WITH CAB (04) - ELECTRICAL SYSTEMS

1

K309641

MOTOR, ELECTRIC

MOTOR - windshield wiper (Replaces K303716)

1шт.

2

K303717

WIPER ARM

ARM - windshield wiper

1шт.

3

K262711

WIPER BLADE

BLADE - windshield wiper

1шт.

4

K307577

COVER

- wiper motor

1шт.

5

K652510

SCREW,Pan, M5 x 0.8 x 100mm, Gr 4.8

- M5 x 100 mm

1шт.

6

K651776

WASHER

- 5 mm

1шт.

REF

INSTRUCTION

WASHER ASSEMBLY - windshield, Order components, Includes: Ref. 7 - 11

1шт.

7

K304596

RESERVOIR

- washer (With pump)

1шт.

8

3129899R92

JET

NOZZLE - washer

1шт.

9

REF

INSTRUCTION

TUBE - plastic (L108947, Serial Range: cut-length)

1шт.

10

K307050

VALVE

- non-return

1шт.

11

K304597

SUPPORT

BRACKET - support, reservoir

1шт.

12

K625021

CLIP

STRAP - tube, 5/16 inch

4шт.

13

K602748

SCREW

BOLT - 1/4 UNC x 3/8 inch, Order 113-6

2шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

245911C1

TOGGLE SWITCH

SWITCH - rocker, Includes: bulb

1шт.

K950567

BULB

- switch, 12 volt - 12 watt

1шт.

16

K627330

BUSHING

SPACER - wiper spindle

2шт.
