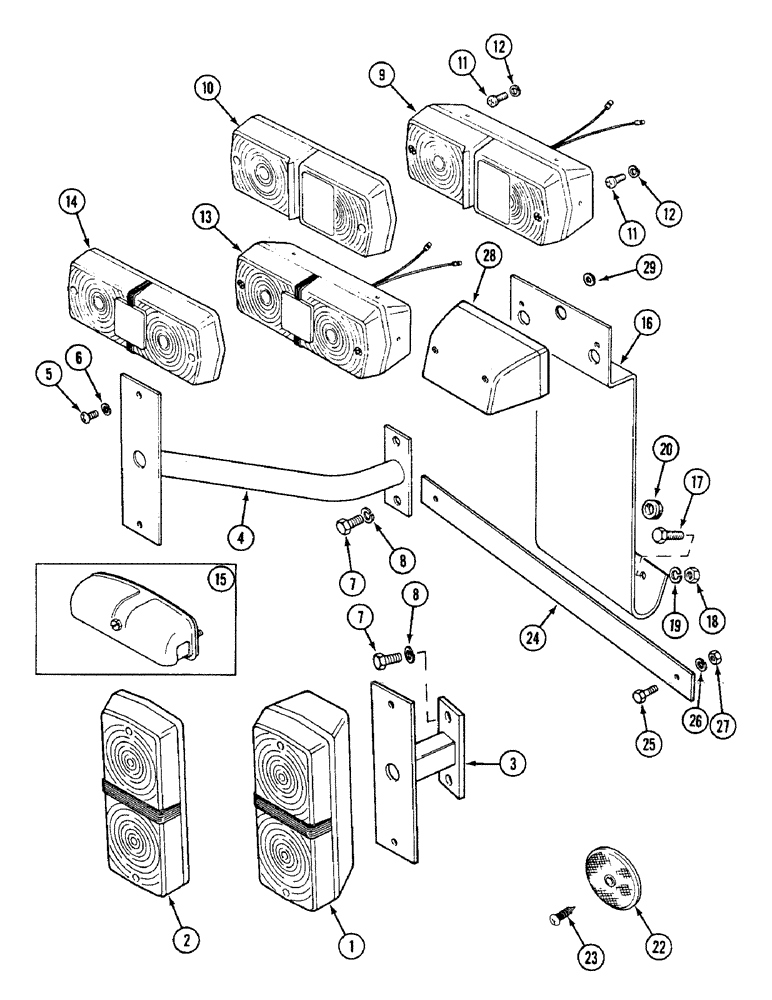

Запчасти Case IH 1594 (4-90) - SIDE AND REAR WARNING LAMPS, TRACTORS WITH CAB (04) - ELECTRICAL SYSTEMS

1

K304892

LIGHT

LAMP ASSEMBLY - front, side flasher, Includes: Ref. 2 and bulbs

1шт.

1094366R1

BULB

- front turn signal No. 382

1шт.

1094368R1

BULB

- side lamp No. 207

1шт.

2

K261792

LENS

- lamp

1шт.

3

K306555

SUPPORT

BRACKET - front lamp, short, 65 mm

2шт.

4

K308005

SUPPORT

BRACKET - front lamp, long

2шт.

5

K613146

SCREW

- 1/4 UNC x 1/2 inch

4шт.

6

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

4шт.

7

K653350

SCREW

- M8 x 16 mm

4шт.

8

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

9

K304885

LIGHT ASSY.

LAMP ASSEMBLY - stop, flasher, rear, Includes: Ref. 10 and bulbs

2шт.

1094366R1

BULB

- rear turn signal No. 382

1шт.

1094367R1

BULB

- stop-tail lamp No. 380

1шт.

10

K261791

LENS

- lamp

1шт.

11

K613146

SCREW

- 1/4 UNC x 1/2 inch

4шт.

12

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

4шт.

13

K304885

LIGHT ASSY.

LAMP ASSEMBLY - stop, flasher, rear (North America only), Includes: Ref. 14 and bulbs

2шт.

1094366R1

BULB

- front turn signal No. 382

1шт.

1094367R1

BULB

- stop-tail lamp No. 380

1шт.

14

K261790

LENS

- lamp

1шт.

15

K207036

LIGHT ASSY.

LAMP - rear number plate (Not North America)

1шт.

16

K302275

BRACKET

- support (Not North America)

1шт.

17

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

18

825-13412

NUT,M12 x 1.25, Cl 8

- cable, M12

2шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

20

K627754

GROMMET

- wire, 14 mm

1шт.

22

K302778

REFLECTOR

- red

2шт.

23

K624797

SCREW

- self-tapping, no., 6 x 1/2 inch

2шт.

24

K309222

BRACKET

- reflector

2шт.

25

K652504

SCREW

- M5 x 16 mm

2шт.

26

K651846

WASHER, LOCK

WASHER - lock, 5 mm

2шт.

27

825-1405

NUT,M5, Cl 8

2шт.

28

K311864

INTERIOR LIGHT

LAMP - rear number plate, with harness (Replaces K207036)

1шт.

29

K651813

WASHER

- special, plain

2шт.
