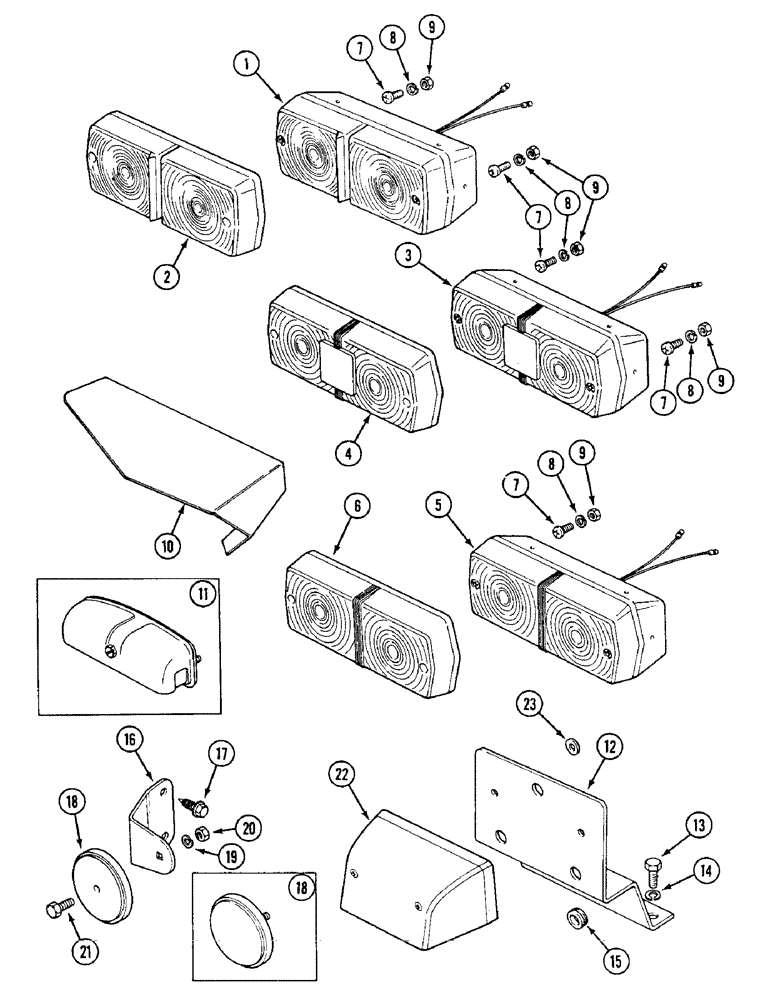

Запчасти Case IH 1594 (4-88) - SIDE AND REAR WARNING LAMPS, TRACTORS WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

K304892

LIGHT

LAMP ASSEMBLY - LH front, side flasher (Britax), Includes: Ref. 2 and bulbs

1шт.

1094366R1

BULB

- front turn signal No. 382

1шт.

1094368R1

BULB

- side lamp No. 207

1шт.

2

K261792

LENS

- lamp

1шт.

1

K304892

LIGHT

LAMP ASSEMBLY - LH front, side flasher (Britax), Includes: Ref. 2 and bulbs

1шт.

1094366R1

BULB

- front turn signal No. 382

1шт.

1094368R1

BULB

- side lamp No. 207

1шт.

2

K261792

LENS

- lamp

1шт.

3

K304888

LAMP

ASSEMBLY - stop, flasher, rear, LH (Britax) (Not North America), Includes: Ref. 4

1шт.

4

K261791

LENS

- lamp

1шт.

3

K304887

LAMP

ASSEMBLY - srop, flasher, rear, RH (Britax) (Not North America), Includes: Ref. 4

1шт.

4

K261791

LENS

- lamp

1шт.

5

K304885

LIGHT ASSY.

LAMP ASSEMBLY - stop, flasher, rear, LH (North America only), Includes: Ref. 6 and bulbs

1шт.

1094366R1

BULB

- rear turn signal No. 382

1шт.

1094367R1

BULB

- stop tail light No. 380

1шт.

6

K261790

LENS

- lamp

1шт.

5

K304889

LAMP

ASSEMBLY - stop, flasher, rear, RH (North America only), Includes: Ref. 6 and bulbs

1шт.

1094366R1

BULB

- rear turn signal No. 382

1шт.

1094367R1

BULB

- stop tail light No. 380

1шт.

6

K261790

LENS

- lamp

1шт.

7

K652503

SCREW

- M5 x 12 mm

8шт.

8

K651846

WASHER, LOCK

WASHER - lock, 5 mm

8шт.

9

K652871

NUT

- M5, special

8шт.

10

K307941

LAMP

SHIELD - lamp, left-hand (North America only)

1шт.

10

K307981

LAMP

SHIELD - lamp, right-hand (Not North America)

1шт.

11

K311863

INTERIOR LIGHT

LAMP - rear number plate, with harness (North America only)

1шт.

12

K301333

BRACKET

- rear lamp support, without ROPS

1шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

15

K627705

GROMMET

- wire, 14 mm

1шт.

16

K943024

BRACKET

- mounting, reflector

2шт.

17

K624532

SCREW

- pan head slotted machine, no.

4шт.

18

K302778

REFLECTOR

- red (Replaces K951642)

2шт.

19

K626340

RING

WASHER - lock, 10

2шт.

20

225-14210

NUT,#10-32

2шт.

21

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- No. 10 NF x 1/2 inch (Used with K302773)

2шт.

22

K311863

INTERIOR LIGHT

LAMP - rear number plate, with harness (Replaces K943308)

1шт.

23

K651813

WASHER

- special, plain

2шт.
