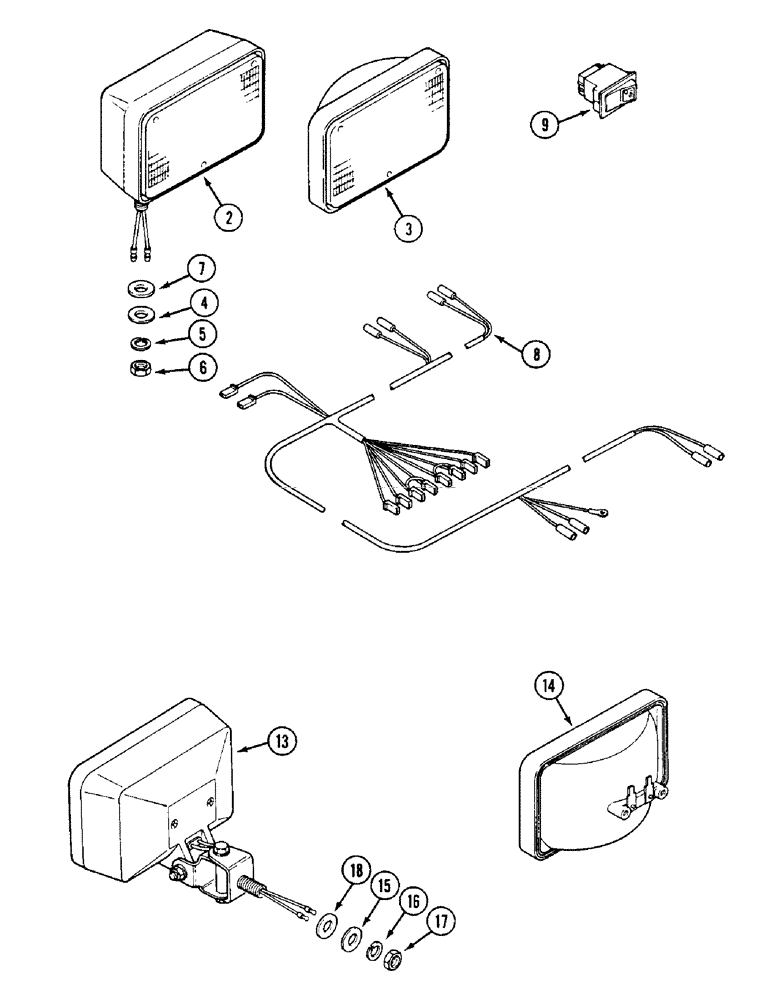

Запчасти Case IH 1594 (4-86) - FLOOD LAMP, NORTH AMERICA ONLY, FRONT (04) - ELECTRICAL SYSTEMS

NSS

NOT SOLD SEPARAT

KIT - flood lamp, front (Order components), Includes: Ref. 2 - 9

1шт.

2

A165065

LAMP

ASSEMBLY - flood, Includes: Ref. 3 - 6

2шт.

3

A48265

LAMP

BULB - sealed beam, Includes: screws

1шт.

4

195-533

WASHER,1/2", SAE

- flat, 1/2" (17/32 x 1-1/16 x 3/32")

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

7

A165395

WASHER,.50mm ID x 1.0mm OD x .060 Thk

- sealing

2шт.

8

A169562

HARNESS

- flood lamp

1шт.

9

REF

INSTRUCTION

SWITCH - flood lamp

2шт.

NSS

NOT SOLD SEPARAT

KIT - flood lamp, rear (Order components), Includes: Ref. 13 - 18

1шт.

13

A165065

LAMP

ASSEMBLY - flood, rear, Includes: Ref. 14 - 17

2шт.

14

A48265

LAMP

BULB - sealed beam, Includes: screws, rear

1шт.

15

195-533

WASHER,1/2", SAE

- flat, 1/2" (17/32 x 1-1/16 x 3/32"), rear

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Rear 1/2"

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Rear 1/2"-13, G5

1шт.

18

A165395

WASHER,.50mm ID x 1.0mm OD x .060 Thk

- sealing, rear

2шт.
