(4-80) - K311697 ALTERNATOR ASSEMBLY, LUCAS A127-65, ENGINES P.I.N. 11468560 AND AFTER, NORTH AMERICAN ONLY

Запчасти Case IH 1594 (4-80) - K311697 ALTERNATOR ASSEMBLY, LUCAS A127-65, ENGINES P.I.N. 11468560 AND AFTER, NORTH AMERICAN ONLY (04) - ELECTRICAL SYSTEMS

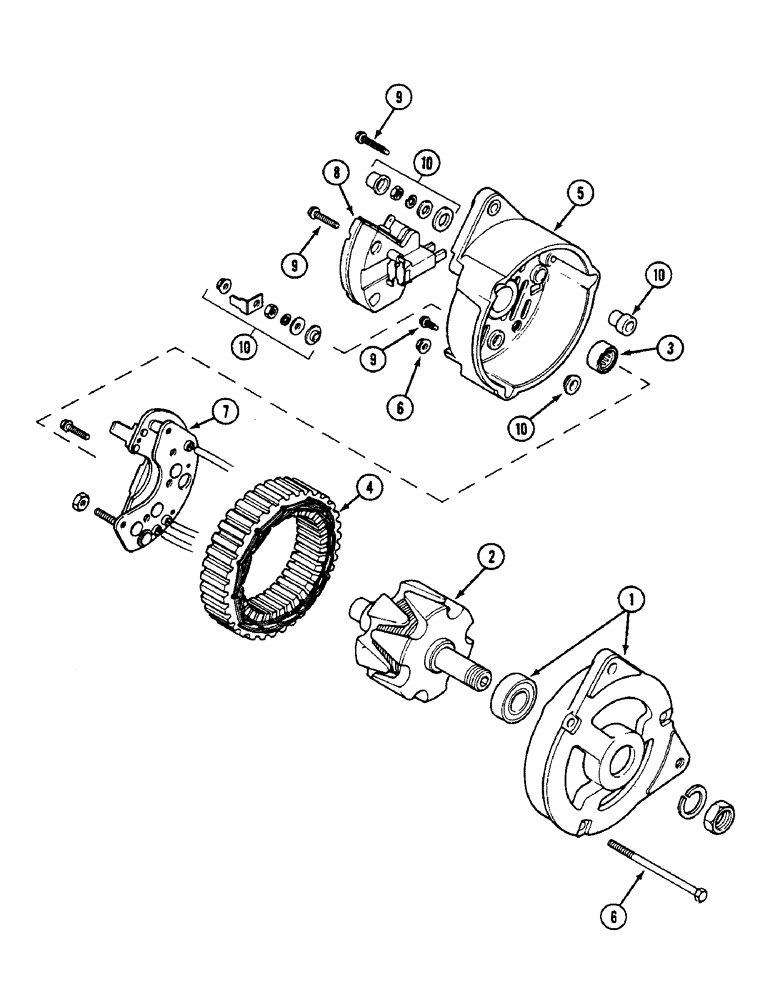

Схема запчастей Case IH 1594 - (4-80) - K311697 ALTERNATOR ASSEMBLY, LUCAS A127-65, ENGINES P.I.N. 11468560 AND AFTER, NORTH AMERICAN ONLY (04) - ELECTRICAL SYSTEMS
3
7
1
5
10
10
6
8
9
9
9
10
10
6
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

ALTERNATOR - (12 volt, 65 amperes) (Order 92281C1), Includes: Ref. 1 - 8

1шт.

1

K262268

BRACKET

FRAME ASSEMBLY - drive end

1шт.

2

K262270

ROTOR

ASSEMBLY

1шт.

3

K262272

ROLLER BEARING

BEARING - slip ring end

1шт.

4

K262275

STATOR

1шт.

5

K262271

SUPPORT

FRAME - slip ring end

1шт.

6

K262274

PACKAGE

BOLT KIT - through, with nuts and washers

1шт.

7

K262267

RECTIFIER

SCREWS AND NUTS

1шт.

8

K262266

REGULATOR

AND BRUSH HOLDER

1шт.

9

K262477

KIT

SUNDRY KIT, Includes: nut and washer

1шт.

NSS

NOT SOLD SEPARAT

NUT - shaft

1шт.

NSS

NOT SOLD SEPARAT

WASHER - lock, shaft nut

1шт.

10

K262478

KIT

TERMINAL KIT, Includes: washers and nuts

1шт.
