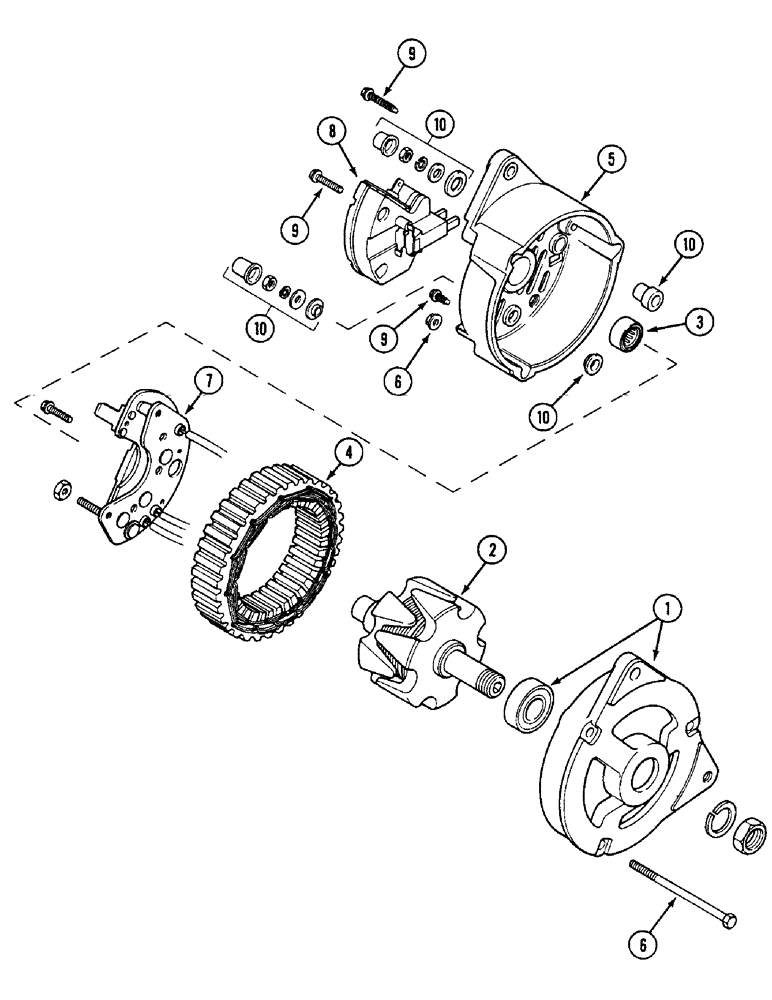

Запчасти Case IH 1594 (4-78) - K311696 ALTERNATOR ASSEMBLY, LUCAS A127-45, ENGINES P.I.N. 11468481 AND AFTER, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - (12 volt, 45 amperes) ( Order 92293C1), Includes: Ref. 1 - 8

1шт.

92293C1

ALTERNATOR

Alternator, 12V, 45 Amp, W/Fan and Pulley

1шт.

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

92293C1GV

ALTERNATOR

Value, 12 Volt, 45 Amp, W/Fan and Pulley

1шт.

1

K262268

BRACKET

FRAME ASSEMBLY - drive end

1шт.

2

K262269

ROTOR

ROTOR ASSEMBLY

1шт.

3

K262272

ROLLER BEARING

BEARING - slip ring end

1шт.

4

K262273

STATOR

STATOR

1шт.

5

K262271

SUPPORT

FRAME - slip ring end

1шт.

6

K262274

PACKAGE

BOLT KIT - through, with nuts and washers

1шт.

7

K262267

RECTIFIER

RECTIFIER SCREWS AND NUTS

1шт.

8

K262266

REGULATOR

REGULATOR AND BRUSH HOLDER

1шт.

9

K262477

KIT

SUNDRY KIT, Includes: nut and washer

1шт.

NSS

NOT SOLD SEPARAT

NUT - shaft

1шт.

NSS

NOT SOLD SEPARAT

WASHER - lock, shaft nut

1шт.

10

K262478

KIT

TERMINAL KIT, Includes: washers and nuts

1шт.
