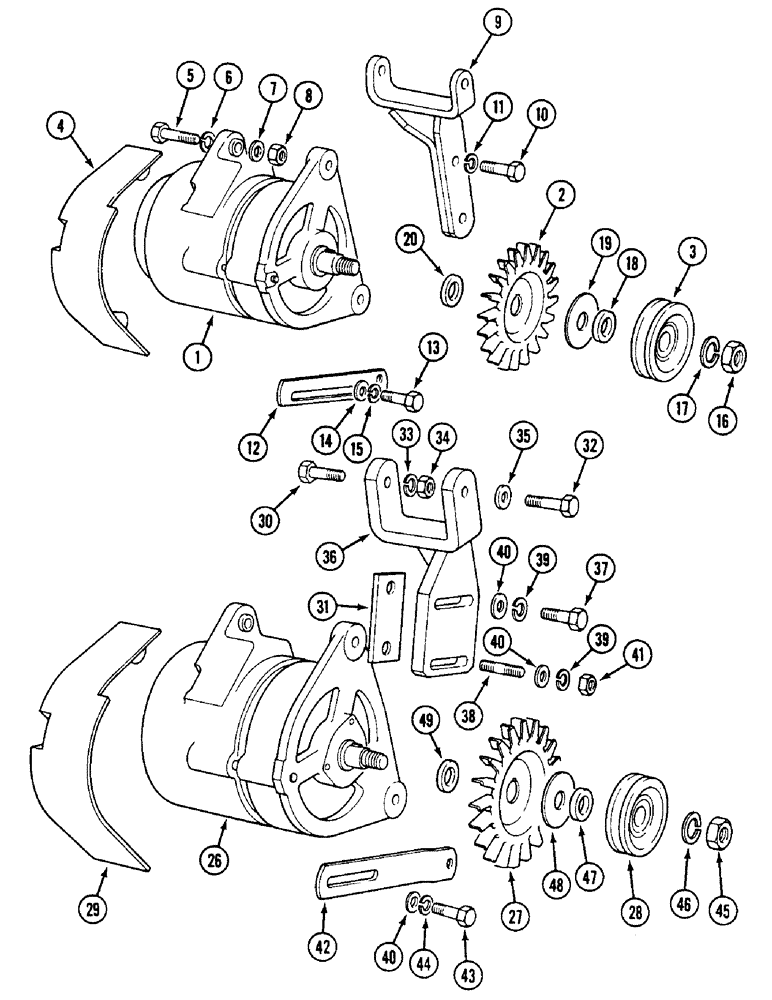

Запчасти Case IH 1594 (4-76) - ALTERNATOR FITTINGS, ENGINES P.I.N. 11468481 AND AFTER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR - 45 ampere, See Figure 4-78

1шт.

2

K311704

FAN

- alternator

1шт.

3

K311701

PULLEY

- alternator, 70 mm diameter

1шт.

4

K302427

GUARD

- heavy duty

1шт.

5

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

6

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

7

K626916

WASHER

- special, 5/16 inch (8 mm) special

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

1шт.

9

K950059

BRACKET

- alternator support

1шт.

10

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

11

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

12

K955053

ADJUSTER

STRAP - adjuster

2шт.

13

K650342

BOLT

- M8 x 20 mm

1шт.

14

K626916

WASHER

- special, 5/16 inch (8 mm) special

1шт.

15

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

16

REF

INSTRUCTION

WASHER - (Order K262477)

1шт.

17

REF

INSTRUCTION

SPACER - (Order K262477)

1шт.

18

K311702

SPACER

- pulley

1шт.

19

K311703

WASHER

- special, fan, support

1шт.

20

K311705

SPACER

- fan

1шт.

26

REF

INSTRUCTION

ALTERNATOR - 65 ampere, See Figure 4-80, engines P.I.N. 11468560 and after

1шт.

27

K311704

FAN

- alternator, engines P.I.N. 11468560 and after

1шт.

28

K311706

PULLEY

- 65 m diameter, engines P.I.N. 11468560 and after

1шт.

29

K302427

GUARD

- heavy duty, engines P.I.N. 11468560 and after

1шт.

30

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch, engines P.I.N. 11468560 and after

1шт.

31

K204267

BUSHING

SPACER, engines P.I.N. 11468560 and after

1шт.

32

K600365

BOLT

- 5/16 UNC x 1-1/2 inch, engines P.I.N. 11468560 and after

1шт.

33

K19481

SPRING WASHER

WASHER - lock, 5/16 inch, engines P.I.N. 11468560 and after

1шт.

34

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC, engines P.I.N. 11468560 and after

2шт.

35

K626916

WASHER

- special, 5/16 inch (8 mm) special, engines P.I.N. 11468560 and after

2шт.

36

K204268

MOUNTING PARTS

BRACKET, engines P.I.N. 11468560 and after

1шт.

37

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch, engines P.I.N. 11468560 and after

1шт.

38

K608152

STUD

- 5/16 UNC x 2 inch, engines P.I.N. 11468560 and after

1шт.

39

K19481

SPRING WASHER

WASHER - lock, 5/16 inch, engines P.I.N. 11468560 and after

2шт.

40

K626916

WASHER

- special, 5/16 inch (8 mm) special, engines P.I.N. 11468560 and after

2шт.

41

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC, engines P.I.N. 11468560 and after

2шт.

42

K204269

ADJUSTER

STRAP - adjuster, engines P.I.N. 11468560 and after

1шт.

43

K650342

BOLT

- M8 x 20 mm, engines P.I.N. 11468560 and after

1шт.

44

K19481

SPRING WASHER

WASHER - lock, 5/16 inch, engines P.I.N. 11468560 and after

1шт.

45

REF

INSTRUCTION

WASHER - (Order K262477), engines P.I.N. 11468560 and after

1шт.

46

REF

INSTRUCTION

SPACER - (Order K262477), engines P.I.N. 11468560 and after

1шт.

47

K311702

SPACER

- pulley, engines P.I.N. 11468560 and after

1шт.

48

K311703

WASHER

- special, fan, support, engines P.I.N. 11468560 and after

1шт.

49

K311705

SPACER

- fan, engines P.I.N. 11468560 and after

1шт.
