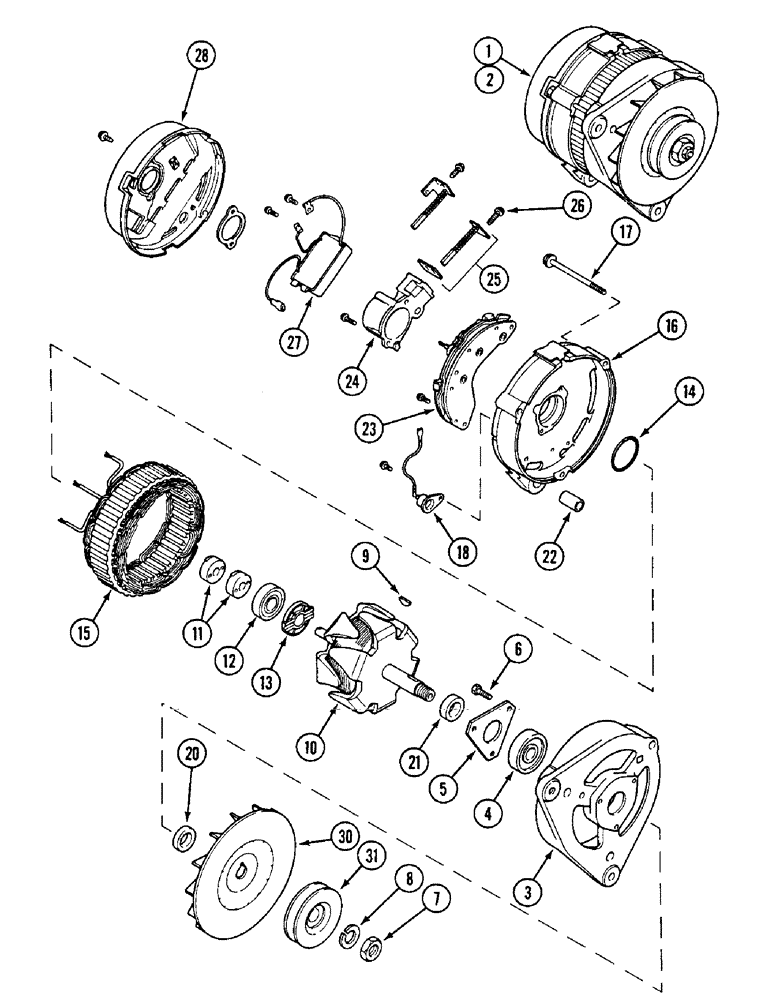

Запчасти Case IH 1594 (4-74) - K302424 ALTERNATOR ASSEMBLY, ENGINES PRIOR TO P.I.N. 11468560 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - (65 amperes), Order 92281C1, Includes: Ref. 2 - 31

1шт.

2

A47992

ALTERNATOR

ALTERNATOR (Without fan and pulley) (Lucas 24049), Includes: Ref. 3 - 28 and hardware kit

1шт.

2

92281C1

ALTERNATOR

ALTERNATOR - 12 VOLT 70AMP

1шт.

2

87800219R

REMAN-ALTERNATOR

Reman for New PN 92281C1

1шт.

2

87800219C

CORE-ALTERNATOR

Return Part Number

1шт.

3

A47996

BRACKET

BRACKET - drive end (Lucas 54204245)

1шт.

84108C1

PACKAGE

BEARING KIT

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - drive end

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - bearing plate

3шт.

A48006

KIT

SPARE PART SUNDRY KIT - alternator (Lucas 60600778)

1шт.

7

NSS

NOT SOLD SEPARAT

NUT - pulley

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - lock, pulley nut

1шт.

9

NSS

NOT SOLD SEPARAT

KEY - Woodruff, fan and pulley

1шт.

10

A47998

ROTOR

ROTOR ASSEMBLY - alternator (Lucas 54204998)

1шт.

A47999

KIT

SPARE PART SLIP RING AND BEARING KIT - rotor (Lucas 60600748)

1шт.

11

A48000

RING

SLIP RING - rotor (Lucas 54202816)

2шт.

12

NSS

NOT SOLD SEPARAT

BEARING - rotor

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - dust

1шт.

14

NSS

NOT SOLD SEPARAT

RING - pressure

1шт.

15

A48002

STATOR

STATOR - alternator (Lucas 54203252)

1шт.

16

A48001

BRACKET

BRACKET - slip ring end (Lucas 54203199)

1шт.

17

A48005

BOLT

SPARE PART BOLT - thru (Lucas 54129642)

3шт.

18

A48009

DIODE

DIODE - surge protection (Lucas 54048376)

1шт.

A48008

COLLAR

COLLAR KIT - spacer (Lucas 60600773)

1шт.

20

NSS

NOT SOLD SEPARAT

COLLAR - drive bracket

1шт.

21

NSS

NOT SOLD SEPARAT

COLLAR - rotor

1шт.

22

NSS

NOT SOLD SEPARAT

COLLAR - slip ring bracket

1шт.

23

A47995

RECTIFIER

RECTIFIER - alternator (Lucas 83646)

1шт.

24

A48003

HOLDER

HOLDER ASSEMBLY - brush (Lucas 54203529)

1шт.

25

A48004

BRUSH, COMMUTATOR

BRUSH BRUSH SET - (Lucas 60600780)

1шт.

27

A47994

REGULATOR

REGULATOR ASSEMBLY - alternator (Lucas 37621)

1шт.

28

A47993

COVER

COVER - rear (Lucas 54204182)

1шт.

A48007

SCREW

HARDWARE KIT - Includes: retaining screws (Lucas 60600771)

1шт.

30

K302509

FAN

FAN - alternator (Lucas 54217415)

1шт.

31

K302510

PULLEY

PULLEY - alternator (Lucas 54215365)

1шт.
