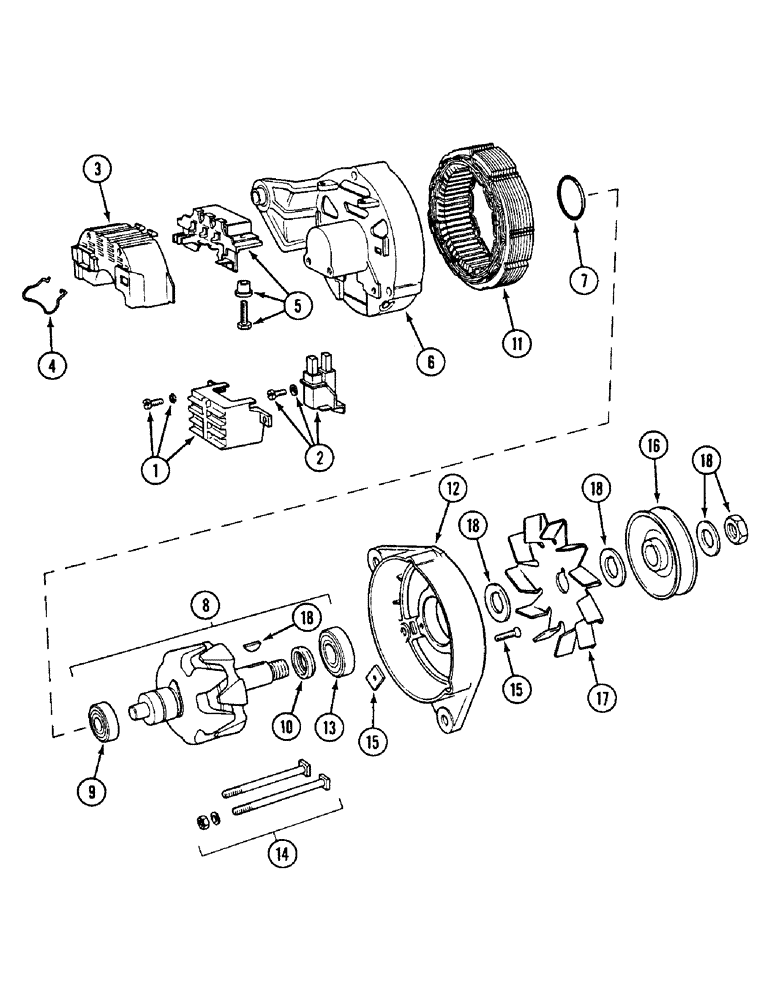

Запчасти Case IH 1594 (4-72) - K957357 ALTERNATOR ASSEMBLY, ENGINES PRIOR TO P.I.N. 11468481 (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - 45 ampere (Motorola 510-324), Includes: Ref. 1 - 18

1шт.

1

K260881

REGULATOR

- alternator (Motorola 505-032)

1шт.

2

K260882

BRUSH, COMMUTATOR

HOLDER - brush (Motorola 503-17)

1шт.

3

K260883

COVER

- diode (Motorola 514-083)

1шт.

4

K260884

CLIP

- cover (Motorola 520-064A)

1шт.

5

K260885

DIODE

BRIDGE - diode (Motorola 501-024)

1шт.

6

K260886

HOUSING

- slip ring end (Motorola 514-084)

1шт.

7

K260887

O-RING

- housing (Motorola 511-004B)

1шт.

8

K260898

ROTOR

ASSEMBLY - alternator (Motorola 512-060), Includes: Ref. 9 & 10

1шт.

9

K260890

BEARING

- rotor (Motorola 511-008)

1шт.

10

K260891

ROTOR

SPACER - rotor (Motorola 520-061B)

1шт.

11

K260899

STATOR

- alternator (Motorola 513-016)

1шт.

12

K260893

HOUSING ASSY.

HOUSING ASSEMBLY - drive end (Motorola 514-198), Includes: Ref. 13

1шт.

13

K260894

BEARING

- housing (Motorola 511-009)

1шт.

14

K260895

SET

HARDWARE - housing (Set of three) (Motorola 520-062)

1шт.

15

K260896

BEARING

RETAINER - bearing (Set of three) (Motorola 511-010)

1шт.

16

K957359

PULLEY

- drive (Motorola 507-030)

1шт.

17

K957358

FAN

- ventilator (Motorola 507-045)

1шт.

18

K260897

MOUNTING PARTS

NUT - washer and key (Motorola 520-070)

1шт.
