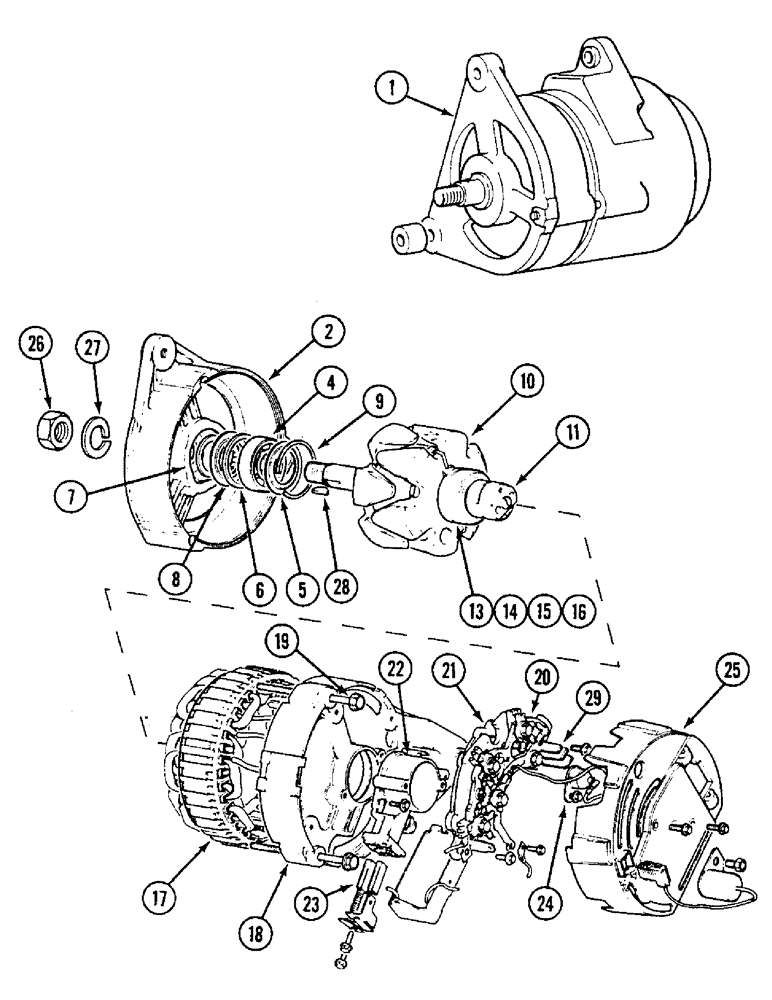

Запчасти Case IH 1594 (4-70) - K306549 ALTERNATOR ASSEMBLY, ENGINES PRIOR TO P.I.N. 11468481 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - (45 ampere), Order 92293C1, Includes: Ref. 2 - 25 and harware kit

1шт.

2

3116089R91

BRACKET

FRAME ASSEMBLY - drive end, Includes: Ref. 3 - 9

1шт.

3

K942045

PULLEY

BEARING KIT - drive end

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - bearing retaining

1шт.

6

NSS

NOT SOLD SEPARAT

RING - pressure

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - felt

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - felt seal

1шт.

9

NSS

NOT SOLD SEPARAT

RING - snap, bearing kit retaining

1шт.

10

245540C1

ROTOR ASSY.

ROTOR ASSEMBLY, Includes: Ref. 11 - 16

1шт.

A47999

KIT

SLIP RING AND BEARING KIT - rotor

1шт.

11

A48000

RING

SLIP RING - rotor

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - dust (Black)

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - dust (White)

1шт.

16

NSS

NOT SOLD SEPARAT

RING - pressure

1шт.

17

K261941

STATOR

1шт.

18

K261940

BRACKET

FRAME - slip ring end

1шт.

19

K261944

BOLT

- through

3шт.

20

245537C1

RECTIFIER

ASSEMBLY

1шт.

21

K261934

REGULATOR

ASSEMBLY

1шт.

22

A48003

HOLDER

ASSEMBLY - brush, Includes: Ref. 23

1шт.

23

A48003

HOLDER

BRUSH SET

1шт.

24

A48009

DIODE

- surge protection (Surge protection)

1шт.

25

K261933

COVER

- drive end

1шт.

A48007

SCREW

HARDWARE KIT, Includes: retaining screws (Lucas 60600771)

1шт.

245550C1

PACKAGE

SPACER KIT, Includes: assorted screws

1шт.

A48006

KIT

SUNDRY KIT - alternator, Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

NUT - shaft

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - lock, shaft nut

1шт.

28

NSS

NOT SOLD SEPARAT

KEY - Woodruff, Serial Range: shaft-pulley

1шт.

29

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.
