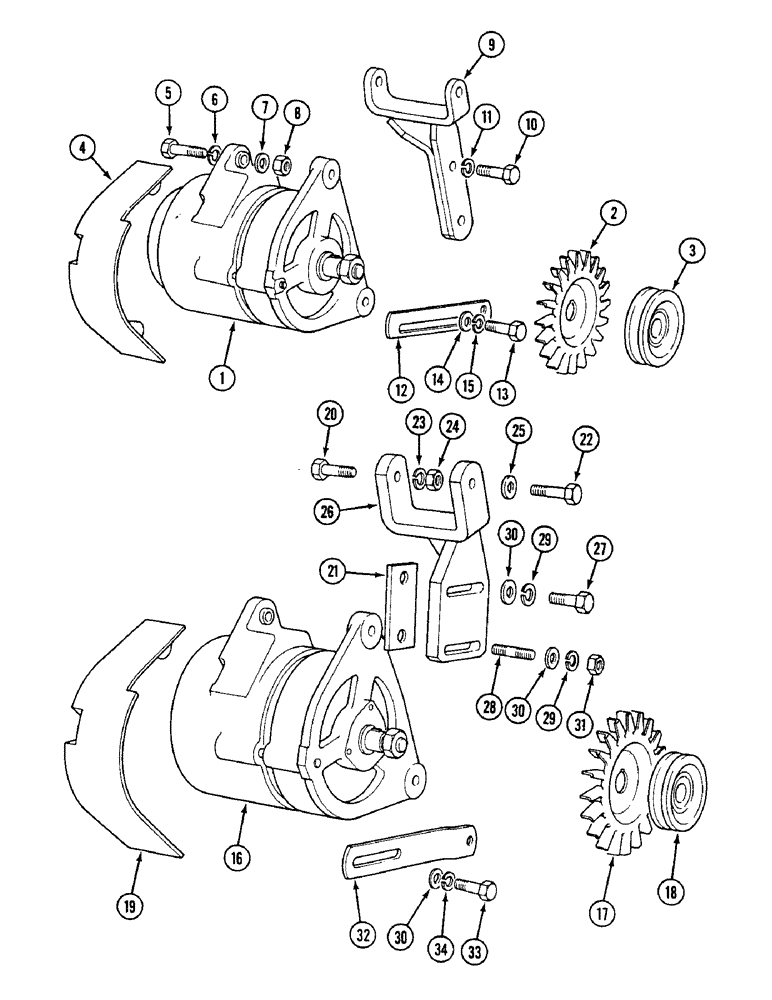

Запчасти Case IH 1594 (4-68) - ALTERNATOR FITTINGS, ENGINES PRIOR TO P.I.N. 11468481 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR - 45 amperes (Lucas, See Figure 4-70)

1шт.

2

K306623

FAN

- alternator

1шт.

3

K942045

PULLEY

- alternator

1шт.

4

K307744

PROTECTIVE COVER

GUARD - alternator

1шт.

1

REF

INSTRUCTION

ALTERNATOR - 45 ampere (Motorola, See Figure 4-72)

1шт.

2

K957358

FAN

- Motorola alternator

1шт.

3

K957359

PULLEY

- Motorola alternator

1шт.

4

K307744

PROTECTIVE COVER

GUARD - alternator

1шт.

5

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

6

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

7

K626916

WASHER

- special, 5/16 inch (8 mm) special

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

1шт.

9

K950059

BRACKET

- alternator support

1шт.

10

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

11

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

12

K955053

ADJUSTER

STRAP - adjuster

1шт.

13

K650342

BOLT

- M8 x 20 mm

1шт.

14

K626916

WASHER

- special, 5/16 inch (8 mm) special

1шт.

15

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

16

REF

INSTRUCTION

ALTERNATOR - 65 amperes, (Lucas, See Figure 4-74), engines prior to P.I.N. 11468560

1шт.

17

K302509

FAN

- alternator, engines prior to P.I.N. 11468560

1шт.

18

K302510

PULLEY

- alternator, engines prior to P.I.N. 11468560

1шт.

19

K302427

GUARD

- heavy duty, engines prior to P.I.N. 11468560

1шт.

20

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch, engines prior to P.I.N. 11468560

1шт.

21

K203267

SPACER, engines prior to P.I.N. 11468560

1шт.

22

K600365

BOLT

- 5/16 UNC x 1-1/2 inch, engines prior to P.I.N. 11468560

1шт.

23

K19481

SPRING WASHER

WASHER - lock, 5/16 inch, engines prior to P.I.N. 11468560

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC, engines prior to P.I.N. 11468560

2шт.

25

K626916

WASHER

- special, 5/16 inch (8 mm) special, engines prior to P.I.N. 11468560

1шт.

26

K204268

MOUNTING PARTS

BRACKET, engines prior to P.I.N. 11468560

1шт.

27

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch, engines prior to P.I.N. 11468560

1шт.

28

K608152

STUD

- 5/16 UNC x 2 inch, engines prior to P.I.N. 11468560

1шт.

29

K19481

SPRING WASHER

WASHER - lock, 5/16 inch, engines prior to P.I.N. 11468560

2шт.

30

K626916

WASHER

- special, 5/16 inch (8 mm) special, engines prior to P.I.N. 11468560

1шт.

31

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC, engines prior to P.I.N. 11468560

2шт.

32

K204269

ADJUSTER

STRAP - adjuster, engines prior to P.I.N. 11468560

1шт.

33

K650342

BOLT

- M8 x 20 mm, engines prior to P.I.N. 11468560

1шт.

34

K19481

SPRING WASHER

WASHER - lock, 5/16 inch, engines prior to P.I.N. 11468560

1шт.
