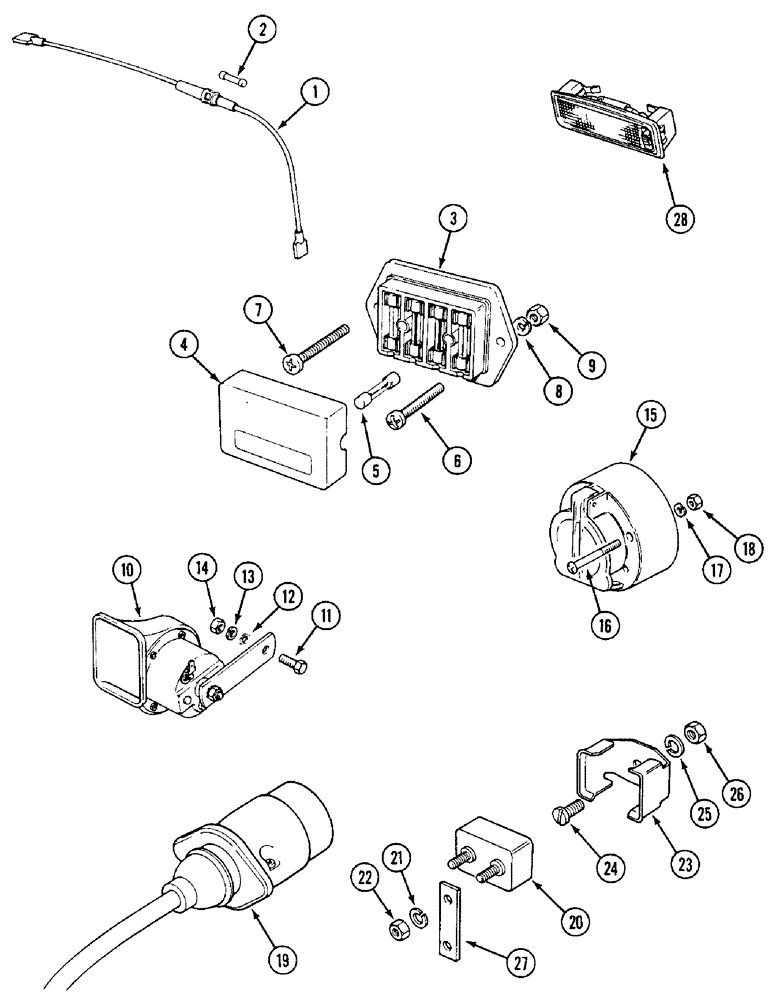

Запчасти Case IH 1594 (4-66) - FUSE BOX, HORN AND TRAILER SOCKET (04) - ELECTRICAL SYSTEMS

1

K304217

FUSE

HOLDER - with lead

1шт.

2

3113048R1

FUSE

- 50 ampere

1шт.

3

REF

INSTRUCTION

FUSE BOX - electrical, Includes: Ref. 4 & 5

1шт.

4

K261009

COVER

- fuse box

1шт.

5

K947431

FUSE

- 35 ampere

1шт.

5

K904459

FUSE

- 25 ampere

1шт.

5

9426333

FUSE,15 Amp, Type 3AG

- 15 ampere

1шт.

5

3118918R1

FUSE

- 10 ampere

1шт.

6

K614946

SCREW,Pan, #10 - 32 x 3/4"

- No. 10 UNF x 3/4 inch (Without cab)

2шт.

7

K615408

SCREW,Pan, #10 - 32 x 1"

- No. 10 UNF x 1 inch (With cab)

2шт.

8

K626340

RING

WASHER - lock, 10

2шт.

9

225-14210

NUT,#10-32

2шт.

10

K311359

HORN

- warning sound

1шт.

11

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

1шт.

12

K11524

LOCK WASHER

- lock, 1/4 inch external Shakeproof

1шт.

13

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

1шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

15

K913566

POINT

SOCKET - trailer, Includes: Ref. 16 - 18

1шт.

16

K657695

SCREW

- M5 x 30 mm

3шт.

17

K651846

WASHER, LOCK

WASHER - lock, 5 mm

3шт.

18

825-1405

NUT,M5, Cl 8

3шт.

19

3118929R1

SOCKET/RECEPTACLE

RECEPTACLE - seven terminal

1шт.

20

K304903

CIRCUIT-BREAKER

CIRCUIT BREAKER - circuit, 30 ampere

2шт.

21

K626340

RING

WASHER - lock, 10

1шт.

22

225-14210

NUT,#10-32

1шт.

23

K304457

CLIP

- circuit breaker mounting

2шт.

24

K652503

SCREW

- M5 x 12 mm

2шт.

25

K651846

WASHER, LOCK

WASHER - lock, 5 mm

2шт.

26

825-1405

NUT,M5, Cl 8

2шт.

27

K307473

PLATE

- circuit breaker

1шт.

28

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome (With cab), Includes: bulb

1шт.

28

E35556

BULB,12V, 10W

- Lamp 12V, 10W

1шт.
