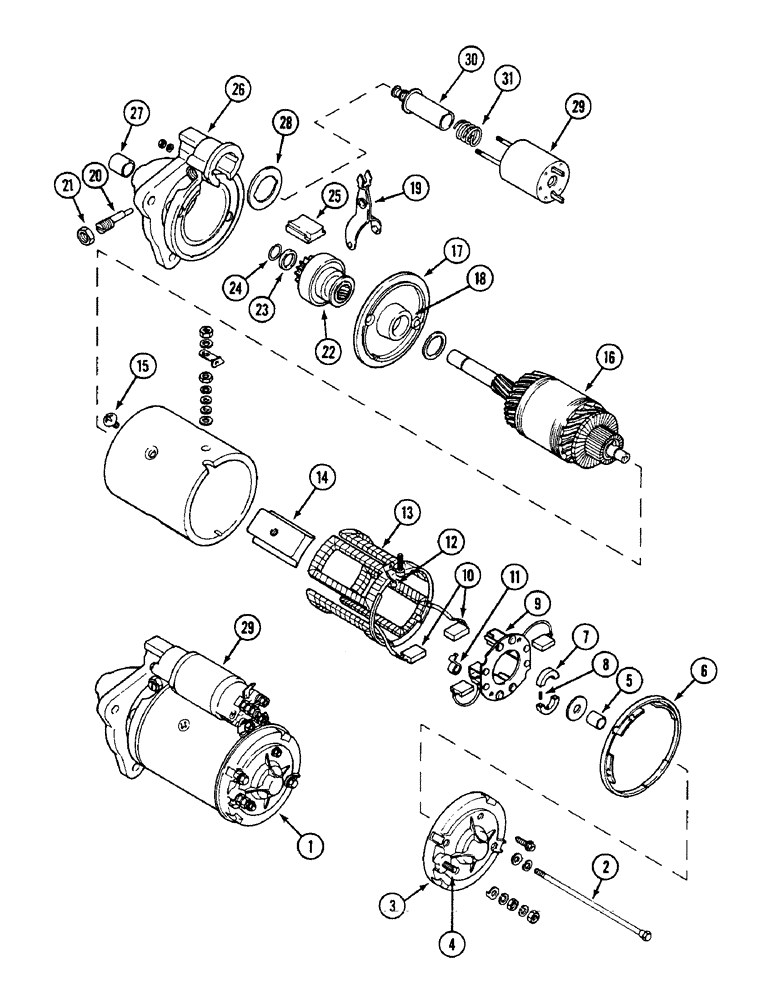

Запчасти Case IH 1594 (4-64) - K308650 STARTER ASSEMBLY, P.I.N. 11219518 AND AFTER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine (Lucas 27528), Includes: Ref. 2 - 31

1шт.

2

K964217

BOLT

- through

2шт.

3206511R91

BRACKET

KIT - commutator end frame, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

FRAME

1шт.

4

NSS

NOT SOLD SEPARAT

TERMINAL

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - (Order K963931 kit)

1шт.

K262023

SEAL KIT

- sealing rubber (Consists of Ref. 6, 12, 24 and 28)

1шт.

6

NSS

NOT SOLD SEPARAT

RING - sealing (Order K262023)

1шт.

3206531R91

BRAKE PACKAGE

KIT - brakes, Includes: Ref. 7 & 8

1шт.

7

NSS

NOT SOLD SEPARAT

SHOE - brake

2шт.

8

NSS

NOT SOLD SEPARAT

SPRING - brake

2шт.

9

3113026R91

PLATE ASSY.

PLATE ASSEMBLY - brush mounting

1шт.

10

K964218

KIT

- brush

1шт.

11

3206523R91

SPRING KIT

KIT - brush springs

1шт.

12

NSS

NOT SOLD SEPARAT

GROMMET - field lead

1шт.

84058C1

KIT

- field coils, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

COIL - field

4шт.

14

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

15

NSS

NOT SOLD SEPARAT

SCREW - pole

4шт.

16

K262025

ARMATURE

ASSEMBLY

1шт.

K964211

FRAME

- intermediate, Includes: Ref. 17 & 18

1шт.

17

NSS

NOT SOLD SEPARAT

FRAME

1шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - (Order K963931 kit)

1шт.

K262027

KIT

- engaging lever, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

LEVER - engaging

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - pivot

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - pivot bolt

1шт.

22

K262028

DRIVE

ASSEMBLY

1шт.

A48239

KIT

- retainer, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

24

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

25

NSS

NOT SOLD SEPARAT

GROMMET - drive end frame

1шт.

K964219

BRUSH, COMMUTATOR

FRAME ASSEMBLY - drive end, Includes: Ref. 26 & 27

1шт.

26

NSS

NOT SOLD SEPARAT

FRAME

1шт.

27

NSS

NOT SOLD SEPARAT

BUSHING - (Order K963931 kit)

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET - solenoid to frame (Order K262073)

1шт.

29

K262022

BUSHING

WASHER - rod end, Includes: Ref. 30 & 31

1шт.

Ref 29 SHOWS K262022 AS A STARTER SOLENOID CORRECT PART# FOR THE SOLENOID IS k262026

1шт.

30

NSS

NOT SOLD SEPARAT

PLUNGER - solenoid

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING - solenoid plunger

1шт.

3206529R91

KIT

- sundry

1шт.

3113029R91

BUSHING

KIT - bushes, bushing, Includes: Ref. 5, 18 and 27

1шт.
