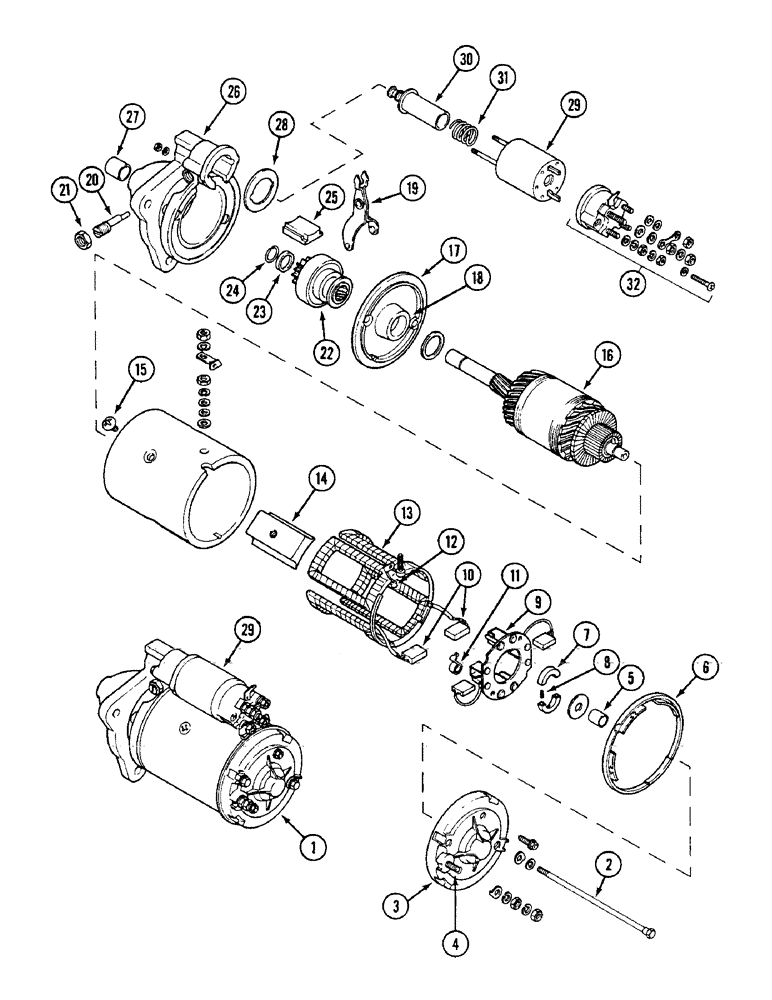

Запчасти Case IH 1594 (4-62) - STARTER ASSEMBLY, PRIOR TO P.I.N. 11219518 (04) - ELECTRICAL SYSTEMS

1

140892A1

KIT

STARTER ASSEMBLY - (Lucas 26379A), Includes: Ref. 1 - 31

1шт.

2

K964217

BOLT

- through

2шт.

3206511R91

BRACKET

KIT - commutator end frame

1шт.

3

NSS

NOT SOLD SEPARAT

FRAME - starter, Includes: Ref. 4 & 5

1шт.

4

NSS

NOT SOLD SEPARAT

TERMINAL - frame

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - (Order 3113029R91 kit)

1шт.

3118370R91

PACKAGE

KIT - sealing rubber, (consists of 6, 12, 24, and 28)

1шт.

6

NSS

NOT SOLD SEPARAT

RING - sealing (Order 3118370R91)

1шт.

3206531R91

BRAKE PACKAGE

KIT - brakes, Includes: Ref. 7 & 8

1шт.

7

NSS

NOT SOLD SEPARAT

SH E - brake

2шт.

8

NSS

NOT SOLD SEPARAT

SPRING - brake

2шт.

9

3113026R91

PLATE ASSY.

PLATE ASSEMBLY - brush mounting

1шт.

10

K964218

KIT

- brush

1шт.

11

3206523R91

SPRING KIT

KIT - brush springs

1шт.

12

NSS

NOT SOLD SEPARAT

GROMMET - field lead (Order 3118370R91)

1шт.

K964210

KIT

- field coil, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

COIL - field

4шт.

14

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

15

NSS

NOT SOLD SEPARAT

SCREW - pole

4шт.

16

K964221

ARMATURE

ASSEMBLY - starter

1шт.

K964211

FRAME

- intermediate, Includes: Ref. 17 & 18

1шт.

17

NSS

NOT SOLD SEPARAT

FRAME - intermediate

1шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - (Order 3113029R91 kit)

1шт.

K964213

LINK

KIT - solenoid link, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

LINK - solenoid

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - pivot

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - pivot bolt

1шт.

K964214

DRIVE

ASSEMBLY - starter, Includes: Ref. 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING - starter

1шт.

23

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

24

NSS

NOT SOLD SEPARAT

RING - retaining (Order 3118370R91)

1шт.

25

NSS

NOT SOLD SEPARAT

GROMMET - drive end frame

1шт.

K964219

BRUSH, COMMUTATOR

FRAME ASSEMBLY - drive end, Includes: Ref. 26 & 27

1шт.

26

NSS

NOT SOLD SEPARAT

FRAME - drive end

1шт.

27

NSS

NOT SOLD SEPARAT

BUSHING - (Order 3113029R91)

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET - solenoid to frame (Order 3118370R91)

1шт.

29

3206518R2

SOLENOID

- starter, Includes: Ref. 30 & 31

1шт.

30

NSS

NOT SOLD SEPARAT

PLUNGER - solenoid

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING - solenoid plunger, (Was K964216)

1шт.

3206529R91

KIT

- sundry, Includes: all items illustrated but not listed

1шт.

3113029R91

BUSHING

KIT - bushes, Includes: Ref. 5, 18 and 27

1шт.

ITEM 32 SHOWN WAS PART NUMBER K964216,HOWEVER IT IS NO LONGER AVAILABLE,ORDER THE STARTER ASSY.

1шт.
