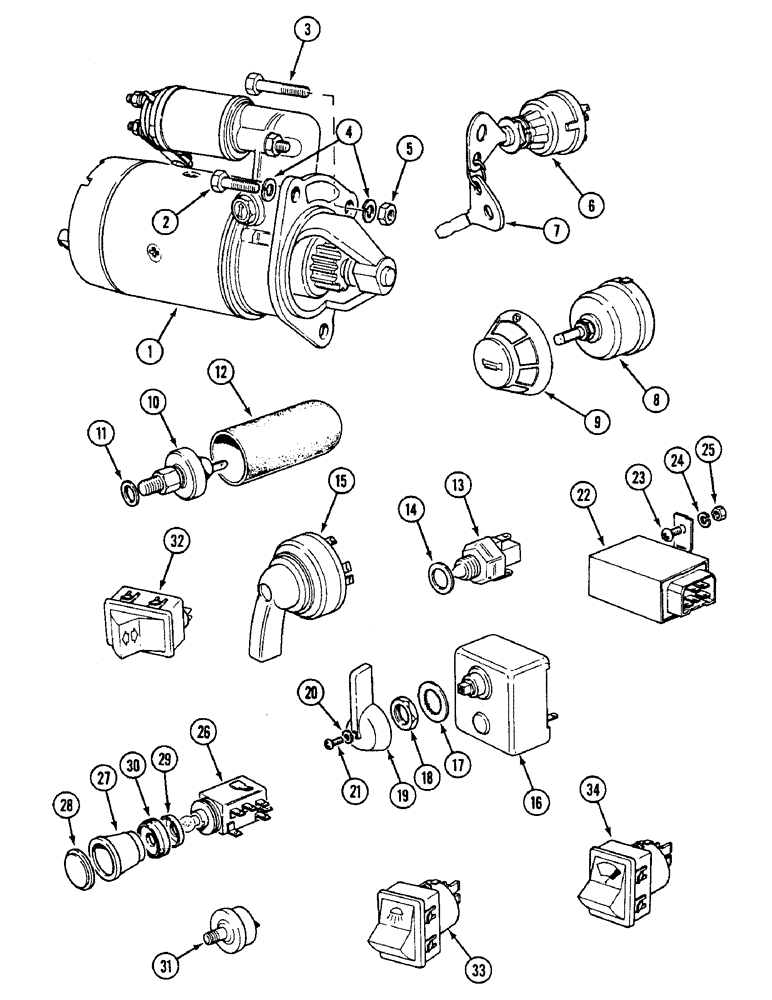

Запчасти Case IH 1594 (4-60) - STARTER AND SWITCHES (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER - (Lucas 26379A), See Figure 4-62

1шт.

1

REF

INSTRUCTION

STARTER - (Lucas 27528), See Figure 4-64

1шт.

2

K600410

BOLT

- 3/8 UNC x 2-1/4 inch

2шт.

3

K600414

BOLT

- 3/8 UNC x 2-3/4 inch (Power shift)

1шт.

4

492-11038

LOCK WASHER,3/8"

3шт.

5

280136

NUT,3/8"-16, G8

1шт.

6

3107556R92

SWITCH ASSY

SWITCH ASSEMBLY - ignition, Includes: two keys (Lucas 54033688)

1шт.

7

K962338

KEY

KEY - ignition switch, set of two

1шт.

8

1502378C1

LIGHT SWITCH

SWITCH - lamps and horn

1шт.

9

1502379C1

KNOB

- lamps and horn

1шт.

10

K311686

SWITCH, PRESSURE

SWITCH - oil pressure (AC-Delco 7994092) (Replaces K903851)

1шт.

11

K626521

SEALING WASHER

WASHER - sealing, 3/8 inch (10 mm)

1шт.

12

K207554

COVER

- oil pressure switch

1шт.

13

K262714

SWITCH

- starter safety

1шт.

14

K626895

SHIM,.002" Thk

(0.05 mm) .002" Thk

1шт.

14

K626858

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

14

K626894

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

15

K300781

FLASHER SWITCH

SWITCH - direction indicator (Without cab) (Not North America), Includes: Ref. 17 - 21

1шт.

16

K304474

SWITCH

- direction indicators, with Flasher (North America only), Includes: Ref. 17 - 21

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

18

NSS

NOT SOLD SEPARAT

NUT - special

1шт.

19

NSS

NOT SOLD SEPARAT

KNOB

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

21

NSS

NOT SOLD SEPARAT

SCREW

1шт.

22

1536092C1

FLASHER UNIT

UNIT, FLASHER

1шт.

23

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

- 1/4 UNC x 5/8 inch

1шт.

24

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

1шт.

25

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

26

3118917R92

FLASHER SWITCH

SWITCH - hazard warning, Includes: Ref. 27 - 30

1шт.

27

K964913

KNOB

- control

1шт.

28

K964914

LENS

- switch

1шт.

29

K950592

WASHER

- switch

1шт.

30

K950593

COVER

MOUNTING - switch, rubber

1шт.

31

K330060

SWITCH

- vacuum, air cleaner (Replaces K206667), Includes: bulb

1шт.

32

K307872

FLASHER SWITCH

SWITCH - direction indicator (With cab) (Not North America), Includes: bulb

1шт.

33

245909C1

SWITCH ASSY

SWITCH - rear flood lamp (With cab), Includes: bulb

1шт.

For Switch Lens Order # 245913C1

1шт.

K950567

BULB

- switch, 12 volt-12 watt

1шт.

34

245911C1

TOGGLE SWITCH

SWITCH - windscreen wiper/washer, Includes: bulb

1шт.

K950567

BULB

- switch, 12 volt-12 watt

1шт.
