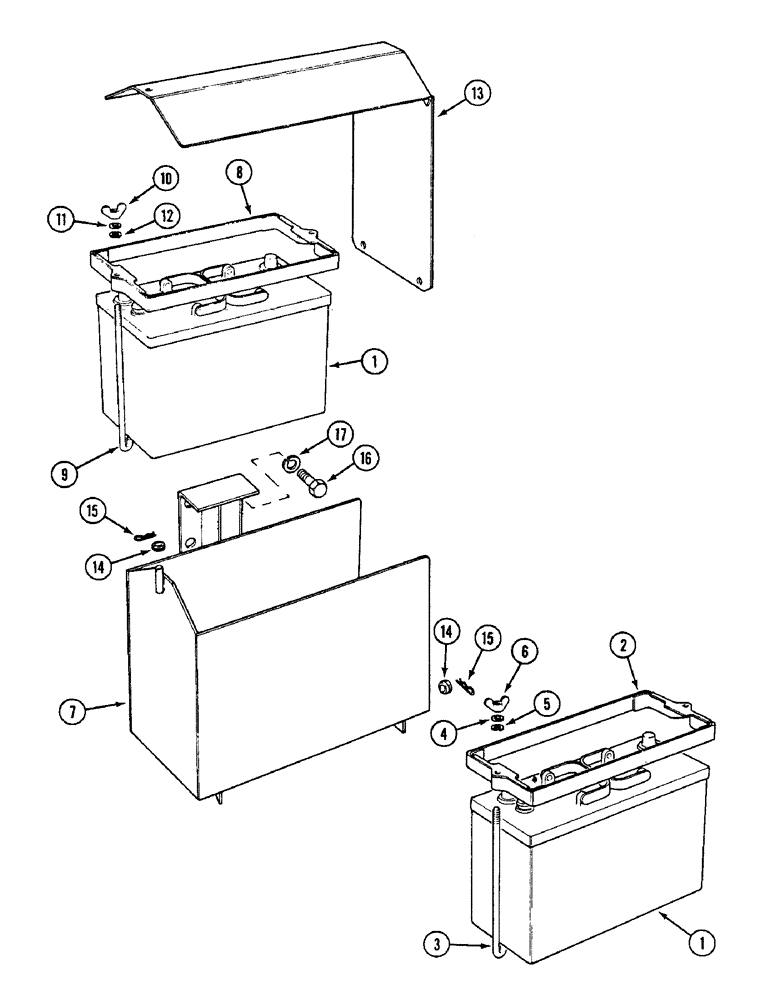

Запчасти Case IH 1594 (4-58) - BATTERY AND SUPPORT BRACKET (04) - ELECTRICAL SYSTEMS

1

K330011

DRY BATTERY

- standard duty (Replaces K302825)

1шт.

1

BMF31H

BATTERY

- dry, 12 volt (North America only)

1шт.

1

K330012

BATTERY

- heavy duty (Replaces K302829)

1шт.

1

BHC30

BATTERY, DRY

BATTERY - 12 volt (North America only)

1шт.

2

K947080

FRAME

CLAMP - battery top

1шт.

3

K306318

BOLT

STUD - clamp, M8 x 250 mm, standard duty

2шт.

3

K306317

BOLT

STUD - clamp, M8 x 300 mm, heavy duty

2шт.

4

K626916

WASHER

- special, 5/16 inch (8 mm) special

2шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

6

K651745

NUT

- wing, M8

2шт.

7

K307968

BATTERY BOX

BRACKET - support, side-mounted battery

1шт.

8

K947080

FRAME

CLAMP - battery top

1шт.

9

K306318

BOLT

STUD - clamp, M8 x 250 mm, standard duty

2шт.

9

K306317

BOLT

STUD - clamp, M8 x 300 mm, heavy duty

2шт.

10

K651745

NUT

- wing, M8

2шт.

11

K626916

WASHER

- special, 5/16 inch (8 mm) special

2шт.

12

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

13

K308501

COVER

- side-mounted battery

1шт.

14

K653155

GROMMET

- cover (Replaces K627718)

3шт.

15

K38632

SPRING

CLIP - retaining

3шт.

16

K603304

SCREW

BOLT - hex, 5/8 x 1-1/4 inch NC

4шт.

17

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
