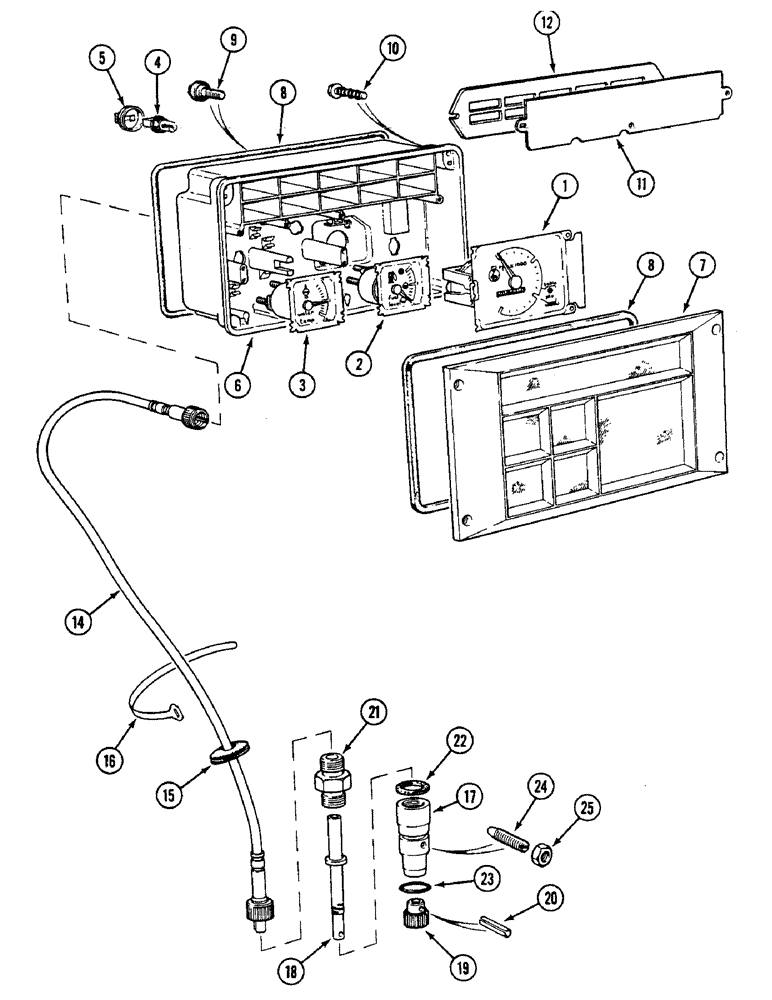

Запчасти Case IH 1594 (4-56) - INSTRUMENT CLUSTER AND CABLE (04) - ELECTRICAL SYSTEMS

K309714

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instruments (AC-Delco), Includes: Ref. 1 - 10

1шт.

1

K965947

TACHOMETER

- engine

1шт.

2

K965950

FUEL GAUGE

GAUGE - fuel

1шт.

3

N13542

GAUGE

- water temperature

1шт.

4

A47125

PEDESTAL

SOCKET - lamp

9шт.

4

W10478

LAMP

BULB - lamp, No. 194

9шт.

5

D71344

COVER

BOOT - rubber

3шт.

6

D71335

CASE ASSY.

HOUSING - cluster, with printed circuit

1шт.

K261634

BOARD, PRINTED CIRCU

CIRCUIT - printed

1шт.

7

A45007

LENS

COVER - instrument cluster

1шт.

8

D71343

GASKET,4.45mm Thk x 249.68mm ID

- instrument cluster

2шт.

9

K965957

BOLT

SCREW ASSEMBLY - cluster

2шт.

10

A45093

SCREW,Hex Slotted, 12.70"

- special

12шт.

11

K262039

SCREEN

FILTER - warning lamps

1шт.

12

D71342

GASKET,3.05mm Thk

- lens

1шт.

K309714

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instruments (Iknield), Includes: Ref. 1 - 12

1шт.

1

K262052

TACHOMETER

- engine

1шт.

2

K262055

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

3

K262054

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

4

A47125

PEDESTAL

SOCKET - lamp

9шт.

4

W10478

LAMP

BULB - lamp, No. 194

9шт.

6

K262051

CASE ASSY.

CASE - instrument cluster

1шт.

K262056

BOARD, PRINTED CIRCU

CIRCUIT - printed

1шт.

7

K262050

BEZEL

COVER - case

1шт.

8

D71343

GASKET,4.45mm Thk x 249.68mm ID

- instrument cluster

1шт.

9

K262060

SCREW

AND BUSHING

2шт.

10

K262063

SELF-TAP SCREW

- case

12шт.

11

K262057

LAMP

FILTER - warning lamps

1шт.

12

K262058

GASKET

- warning lamp, rubber

1шт.

14

K957154

CABLE

ASSEMBLY - inner and outer (Without cab)

1шт.

14

K954959

CABLE

ASSEMBLY - inner and outer (With cab)

1шт.

15

K627769

GROMMET

- cable to cab, 32 mm

1шт.

16

K10518

BUCKLE

STRAP - tie

1шт.

17

K908181

HOUSING

- tachometer drive

1шт.

18

K908182

DRIVE

SPINDLE - drive

1шт.

19

K920013

DRIVE

GEAR - drive

1шт.

20

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

21

K948532

ADAPTER

ADAPTOR - 1/2 inch BSP - M22

1шт.

22

K626957

WASHER

- sealing 7/8 inch (22 mm)

1шт.

23

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

24

K928265

SCREW,5/16" - 18 x 1-1/16"

- 5/16 inch UNC

1шт.

25

K607081

LOCK NUT

NUT - lock, 5/16 inch UNC

1шт.
