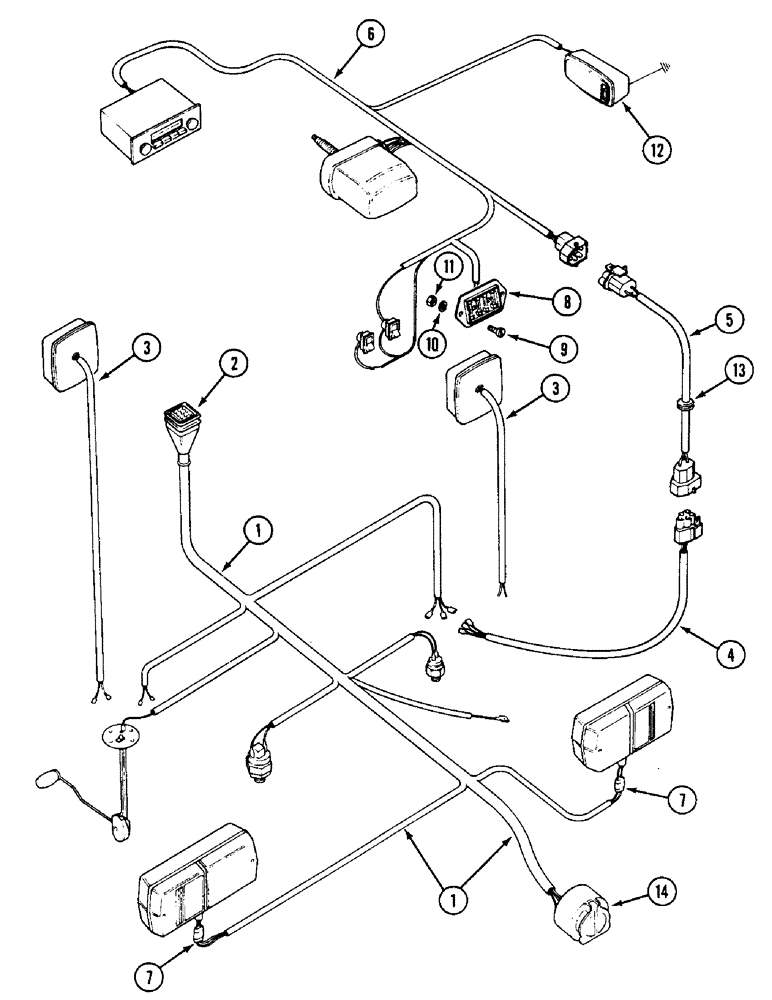

Запчасти Case IH 1594 (4-54) - ELECTRICAL WIRING, TRACTORS WITH CAB (04) - ELECTRICAL SYSTEMS

1

K311531

HARNESS

- cab wiring (Replaces K307249), Includes: Ref. 2

1шт.

2

K951338

BELLOWS

COVER - harness connector

1шт.

3

K303971

HARNESS

- side/flasher lamp, short bracket

2шт.

3

K308011

HARNESS

- side/flasher lamp, long bracket

2шт.

4

K307418

HARNESS

- lower, right-hand pillar

1шт.

5

K307419

HARNESS

- upper, right-hand pillar

1шт.

6

K311489

HARNESS

- cab roof (Replaces K307441)

1шт.

7

K86230

CONNECTOR, ELEC

CONNECTOR - double

6шт.

8

REF

INSTRUCTION

FUSE BOX, See Figure 4-66)

1шт.

9

K652503

SCREW

- M5 x 12 mm

2шт.

10

K651846

WASHER, LOCK

WASHER - lock, 5 mm

2шт.

11

825-1405

NUT,M5, Cl 8

2шт.

12

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome, Includes: bulb

1шт.

E35556

BULB,12V, 10W

- Lamp 12V, 10W

1шт.

13

K653135

GROMMET

1шт.

14

REF

INSTRUCTION

SOCKET - 7 point trailer connection

1шт.
