Запчасти Case IH 1594 (4-52) - CHASSIS WIRING, TRACTORS WITH CAB (04) - ELECTRICAL SYSTEMS

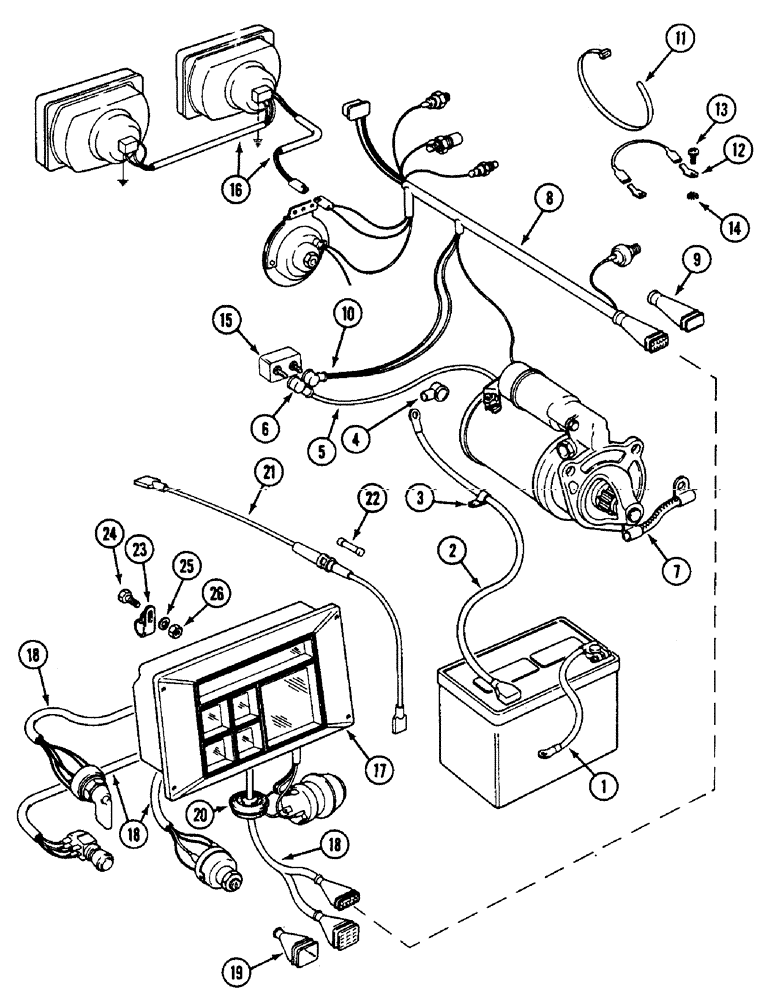

Схема запчастей Case IH 1594 - (4-52) - CHASSIS WIRING, TRACTORS WITH CAB (04) - ELECTRICAL SYSTEMS
18
1
12
7
8
25
9
2
17
10
26
19
21
14
6
5
4
18
23
22
16
15
24
18
11
3
13
20

Артикул

Название

Примечание

Количество

1

K913945

CABLE

- battery to ground, side mounted battery

1шт.

2

K304228

CABLE

- battery to starter, side-mounted

1шт.

3

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

- P-type, 7/16 inch ID

2шт.

4

K87560

CONTACT HOUSING

COVER - starter terminal

1шт.

5

K304806

ELECTRICAL WIRE

LEAD - starter to circuit breaker, Includes: Ref. 6

1шт.

6

K304902

TERMINAL CONNECTOR

COVER - terminals

1шт.

7

K947336

CABLE

-, Serial Range: starter-ground

1шт.

8

K307282

HARNESS

- engine auxiliaries, Includes: Ref. 9 & 10

1шт.

9

K951339

GUARD

COVER - harness connector

1шт.

10

K304901

TERMINAL CONNECTOR

COVER - terminals

2шт.

11

K621734

CABLE

CLIP - cable

3шт.

12

K925268

BLADE

- ground lead

2шт.

13

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch

1шт.

14

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

15

K304903

CIRCUIT-BREAKER

CIRCUIT BREAKER - circuit, 30 ampere

2шт.

16

K304927

HARNESS

- electrical (Inboard headlamps)

1шт.

16

K304928

HARNESS

- sealed beam headlamps (Inboard headlamps)

1шт.

16

K300750

HARNESS

- outboard headlamps

1шт.

17

REF

INSTRUCTION

INSTRUMENT CLUSTER, See Figure 4-56

1шт.

18

K307323

HARNESS

- instrument panel, Includes: Ref. 19 & 20

1шт.

19

K951338

BELLOWS

COVER - harness connector

2шт.

20

K627759

GROMMET

1шт.

21

K304217

FUSE

HOLDER - with lead, Includes: Ref. 22

1шт.

22

3113048R1

FUSE

- 50 ampere

1шт.

23

K621600

CLIP

- panel harness

1шт.

24

K615408

SCREW,Pan, #10 - 32 x 1"

- No. 10 UNF x 1 inch

1шт.

25

K626340

RING

WASHER - lock, 10

1шт.

26

225-14210

NUT,#10-32

1шт.

Выбрано товаров: 28
