Запчасти Case IH 1594 (4-50) - WIRING, TRACTORS WITHOUT CAB (04) - ELECTRICAL SYSTEMS

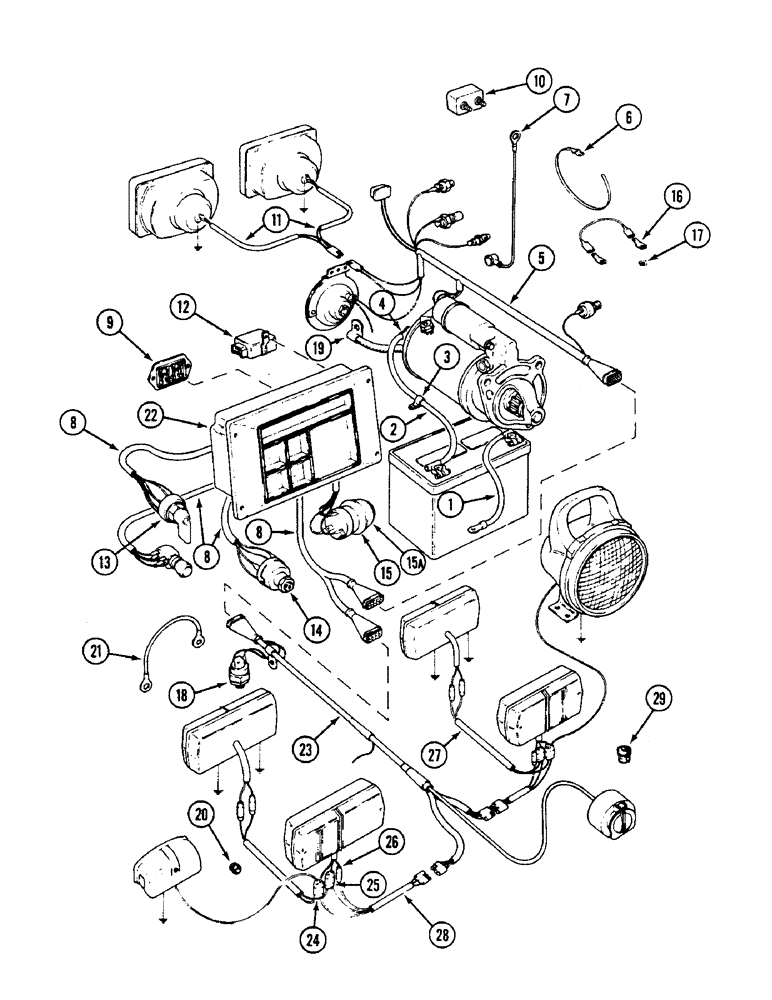

Схема запчастей Case IH 1594 - (4-50) - WIRING, TRACTORS WITHOUT CAB (04) - ELECTRICAL SYSTEMS
19
13
6
5
24
8
8
9
1
3
7
21
25
18
10
16
4
15
15a
26
14
12
2
28
8
27
22
17
11
23
29
20

Артикул

Название

Примечание

Количество

1

3404976R1

CABLE

- battery

1шт.

2

K202240

CABLE

- front-mounted, Serial Range: battery-starter

1шт.

1

K913945

CABLE

- battery to ground, side mounted battery

1шт.

2

K304228

CABLE

- battery to starter, side-mounted

1шт.

3

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

- P-type, 7/16 inch ID

2шт.

4

K87560

CONTACT HOUSING

COVER - starter terminal

1шт.

5

K307282

HARNESS

- engine auxiliaries

1шт.

6

K621734

CABLE

CLIP - cable

3шт.

7

K304900

ELECTRICAL WIRE

LEAD - starter to circuit breaker

1шт.

8

K307707

HARNESS

- instrument panel, Includes: cover

1шт.

Switch off of #8 next to #13 in diagram is 3118917R93

1шт.

K951338

BELLOWS

COVER - harness connector

1шт.

9

REF

INSTRUCTION

FUSE BOX, See Figure 4-66

1шт.

10

K304903

CIRCUIT-BREAKER

CIRCUIT BREAKER - circuit, 30 ampere

1шт.

11

K304927

HARNESS

- electrical (Inboard headlamps)

1шт.

11

K304928

HARNESS

- sealed beam headlamps (Inboard headlamps)

1шт.

12

1536092C1

FLASHER UNIT

UNIT, FLASHER

1шт.

13

K300781

FLASHER SWITCH

SWITCH - direction indicator (Not North America)

1шт.

14

3107556R92

SWITCH ASSY

SWITCH ASSEMBLY - ignition, Includes: two keys

1шт.

15

1502378C1

LIGHT SWITCH

SWITCH - clutch

1шт.

15a

1502379C1

KNOB

BUTTON -

1шт.

16

K925268

BLADE

- ground lead

1шт.

17

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

18

K262714

SWITCH

- starter safety

1шт.

19

K947336

CABLE

-, Serial Range: starter-ground

1шт.

20

K627781

PLUG

- blanking, 7/32 inch diameter, 7/32 inch diameter

2шт.

21

K200606

ELECTRICAL WIRE

LEAD - ground

1шт.

22

REF

INSTRUCTION

INSTRUMENT CLUSTER, See Figure 4-56

1шт.

23

K307709

HARNESS

- rear lamps

1шт.

24

K908905

CONNECTOR, ELEC

CONNECTOR - three-way, 3-way

1шт.

25

K86230

CONNECTOR, ELEC

CONNECTOR - double

3шт.

26

K67916

ELEC CONNECTOR

CONNECTOR - wire

2шт.

27

K300730

HARNESS

- front and rear lamps

2шт.

28

K300854

HARNESS

- rear lamps

2шт.

29

K627716

GROMMET

- special, 13/16 inch (21 mm)

2шт.

30

K304901

TERMINAL CONNECTOR

COVER - terminals

1шт.

K262499

KIT

BATTERY KIT - Air Force, Not illustrated

1шт.

REF

INSTRUCTION

STARTER SOLENOID - parts for fitment of relay, Includes: parts listed below

1шт.

A39079

SOLENOID

- magnetic relay

1шт.

K311930

HARNESS

- relay switch

1шт.

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

K626430

WASHER

- tab, retainer bolt

1шт.

225-14210

NUT,#10-32

1шт.

Выбрано товаров: 44
