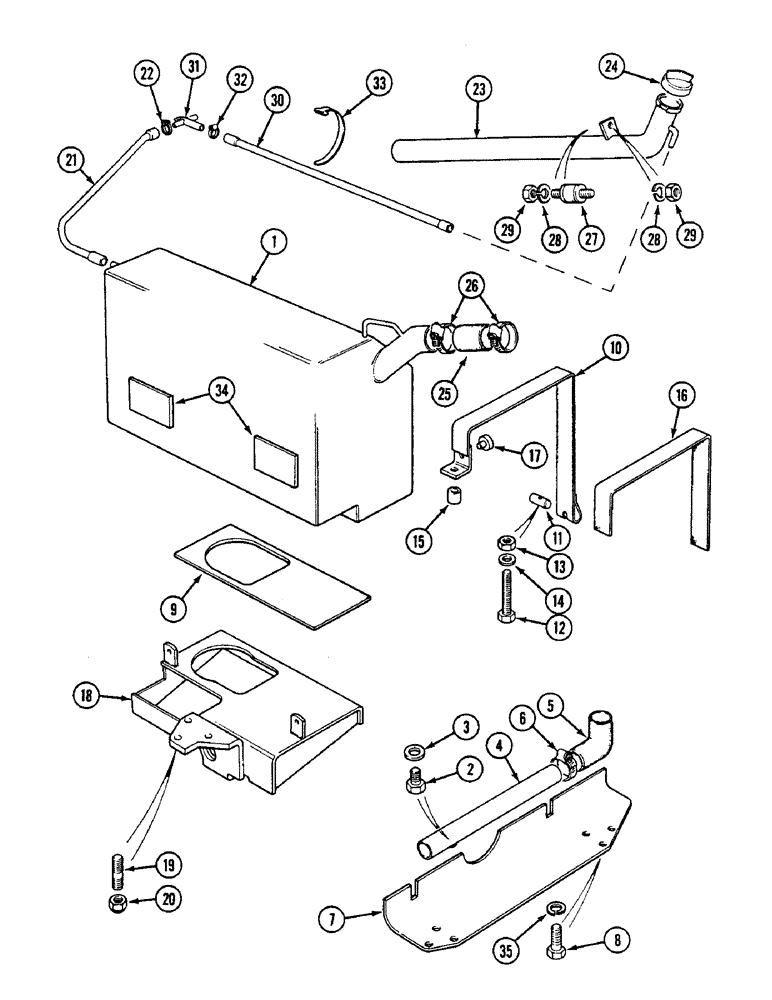

Запчасти Case IH 1594 (3-48) - FUEL TANK - RIGHT HAND, TRACTORS WITH CAB (03) - FUEL SYSTEM

1

K207879

TANK

- fuel, right hand (Replaces K207655)

1шт.

2

K19581

PLUG

- 1/4 inch BSP

1шт.

3

K626765

GASKET

WASHER - sealing

1шт.

4

K207884

PIPE

- tank balance (Replaces K207650)

1шт.

5

K201945

HOSE

ELBOW

1шт.

6

K622028

CLAMP

- hose, 1-1/2 inch (38 mm)

2шт.

7

K207658

GUARD

- balance pipe

1шт.

8

K603105

SCREW

BOLT - 1/2 UNC x 1-1/8 inch

6шт.

9

K202094

MAT

- seating

1шт.

10

K310338

BRACKET

STRAP - rear (Power shift) (Replaces K308488)

1шт.

10

K309279

STRAP

- front (Power shift) (Replaces K305925)

1шт.

10

K304026

STRAP

- tank (Synchromesh)

2шт.

11

K951539

TRUNNION

PIN - 1/4 inch UNC

2шт.

12

K602747

SCREW,1/4" - 20 x 3 1/2", Gr S

BOLT - 1/4 UNC x 3-1/2 inch

2шт.

13

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT - lock, 1/4 inch UNC

2шт.

14

K626660

WASHER

- 1/4 inch (16 mm)

1шт.

15

K201919

SPACER

- strap (Synchromesh)

2шт.

15

K202903

BUSHING

SPACER - strap rear (Power shift)

1шт.

16

K302680

ADHESIVE

STRIP - seating, 40 x 1.5 x 716 mm

1шт.

17

K304542

RUBBER

PAD - rubber

4шт.

18

K204567

BRACKET

- support

1шт.

19

K608610

STUD

- 5/8 UNC x 2-1/2 inch

3шт.

20

K607306

NUT

- self-locking, 5/8 inch UNC

3шт.

21

K311790

FITTING

PIPE - breather (Replaces K308426) (P.I.N. 11527151 and after)

1шт.

22

K656901

CLIP

CLAMP - breather tube

2шт.

23

K203059

TUBE,25.75" L

- filler

1шт.

24

K304590

CAP

- filler (Replaces K901983)

1шт.

25

K203060

HOSE

- 2 x 4-3/4 inch (51 x 121 mm)

1шт.

26

K622031

CLAMP

- hose, 2-1/4 inch (57 mm) diameter, Order 214-1436

2шт.

27

K203412

RUBBER BLOCK

MOUNT - rubber

2шт.

28

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

29

825-1408

NUT,M8, Cl 8

4шт.

30

K311792

TUBE

- filler breather(Replaces K307947) (Pin 11527151 and after)

1шт.

31

K311717

FITTING

-breather tube (Replaces K307871) (P.I.N. 11527151 and after)

1шт.

32

K656905

CLIP

CLAMP - breather tube

2шт.

33

K628387

STRAP

TIE - cable to air cleaner, Order L18337

3шт.

34

K302686

ADHESIVE

STRIP - seating, 40 x 5 x 70 mm

2шт.

35

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.
