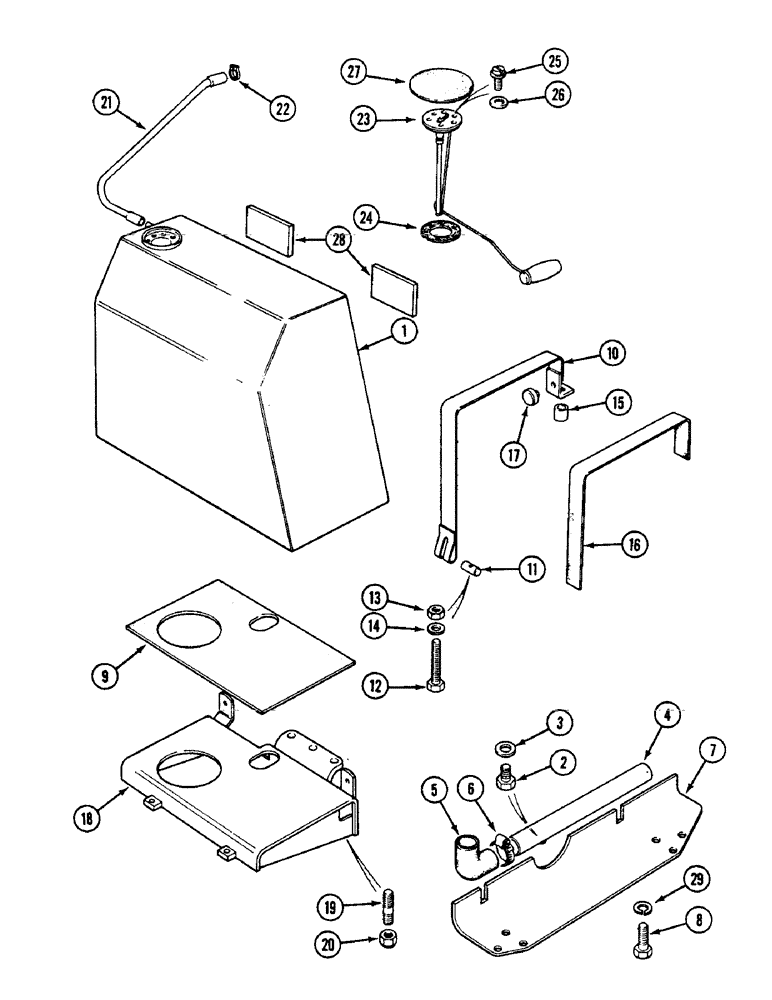

Запчасти Case IH 1594 (3-46) - FUEL TANK - LEFT HAND, TRACTORS WITH CAB (03) - FUEL SYSTEM

1

K207880

TANK

- fuel, left-hand (Replaces K207653)

1шт.

2

K19581

PLUG

- 1/4 inch BSP

1шт.

3

K626765

GASKET

WASHER - sealing, 3/8 inch (10 mm)

1шт.

4

K207884

PIPE

- tank balance (Replaces K207650)

1шт.

5

K201945

HOSE

ELBOW

1шт.

6

K622028

CLAMP

CLIP - hose, 1-1/2 inch (38 mm)

2шт.

7

K207658

GUARD

- balance pipe

1шт.

8

K603105

SCREW

BOLT - 1/2 UNC x 1-1/8 inch

6шт.

9

K202093

MAT

- seating, Includes: Ref. 10

1шт.

10

K304026

STRAP

- tank (Synchromesh)

2шт.

10

K310338

BRACKET

STRAP - tank (Power shift) (Replaces K308488), Includes: Ref. 11 - 14 and K201919 spacer

2шт.

11

K951539

TRUNNION

PIN - 1/4 inch UNC

2шт.

12

K602747

SCREW,1/4" - 20 x 3 1/2", Gr S

BOLT - 1/4 UNC x 3-1/2 inch

2шт.

13

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT - lock, 1/4 inch UNC

2шт.

14

K626660

WASHER

- 1/4 inch (16 mm)

2шт.

15

K201919

SPACER

- strap (Synchromesh)

2шт.

15

K202903

BUSHING

SPACER - strap rear (Power shift)

1шт.

16

K302680

ADHESIVE

STRIP - seating, 40 x 1.5 mm

1шт.

17

K304542

RUBBER

PAD - rubber

4шт.

18

K204568

BRACKET

- support

1шт.

19

K608610

STUD

- 5/8 UNC x 2-1/2 inch

3шт.

20

K607306

NUT

- self-locking, 5/8 inch UNC

3шт.

21

K311791

TUBE,5.3 mm ID x 8 mm OD x 830 mm L

PIPE - tank breather (Replaces K308427) (P.I.N. 11220216 and after)

1шт.

22

K656901

CLIP

CLAMP - breather tube

2шт.

23

K262723

TRANSMITTER

TANK UNIT - fuel gauge (Replaces K300827)

1шт.

24

K946159

GASKET

1шт.

25

K614965

SCREW

- No. 10 UNF x 5/8 inch

5шт.

26

K627479

WASHER

- sealing, 3/16 inch

5шт.

27

K304807

COVER

PLUG - plastic

1шт.

28

K302686

ADHESIVE

STRIP - seating, 40 x 5 x 70 mm

2шт.

29

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.
