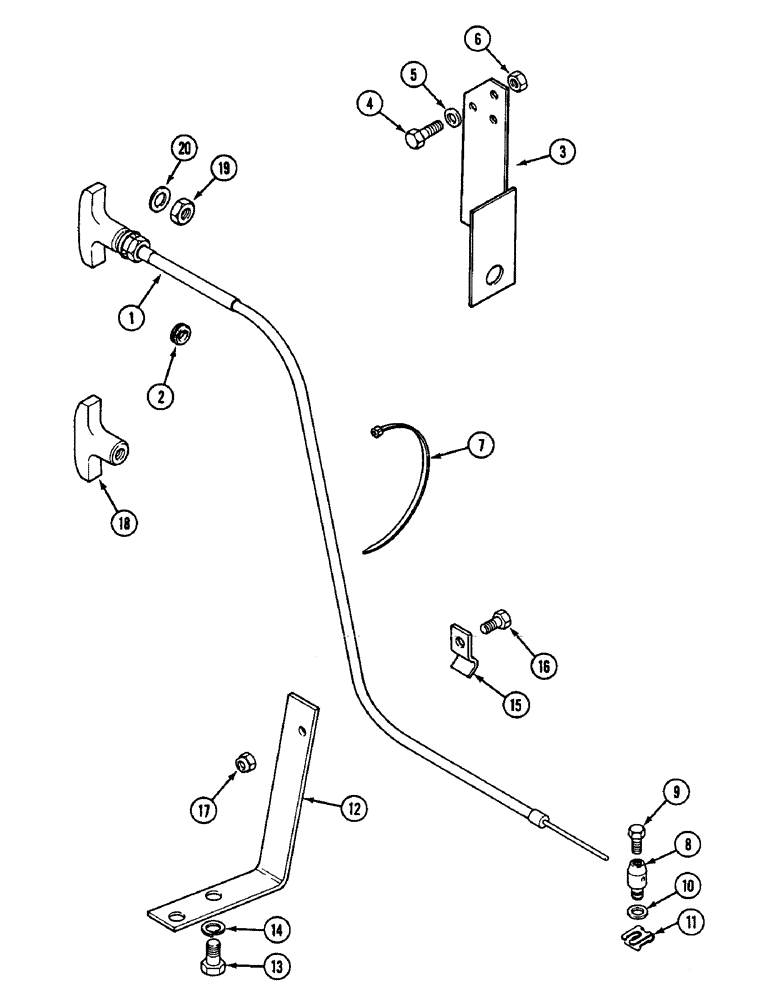

Запчасти Case IH 1594 (3-42) - ENGINE STOP CONTROL (03) - FUEL SYSTEM

1

K311435

CABLE

ASSEMBLY - inner and outer, 46 inch (Without cab), Includes: Ref. 18

1шт.

1

K311438

CABLE

- inner and outer (With cab), Includes: Ref. 18

1шт.

2

248-1140

GROMMET,3/8" ID x 5/8" Groove Dia

- cable to cab

1шт.

3

K304580

BRACKET

BRACKE T - mounting (With cab)

1шт.

4

K612703

SCREW

BOLT - 1/4 UNF x 3/4 inch

3шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

6

K617000

NUT

- 1/4 inch UNF

3шт.

7

K621734

CABLE

CLIP - cable

1шт.

8

K205990

TRUNNION

PIN - trunnion

1шт.

9

178-15

SET SCREW,Hex Soc, #10-24 x 3/8"

SCREW - hex, no.

1шт.

10

K626662

WASHER

- 1/4 inch

1шт.

11

K625039

CLIP

- retaining

1шт.

12

K306641

STOP

BRACKET - injection pump

1шт.

13

K602901

SCREW

BOLT - 3/8 UNC x 5/8 inch

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

K657014

CABLE

CLAMP - cable

1шт.

16

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

17

K607325

NUT

- hex., self locking, 1/4 inch NC

1шт.

18

K262069

HANDLE

- stop control cable

1шт.

19

825-13412

NUT,M12 x 1.25, Cl 8

- cable, M12 (Used with K311435 and K311438)

1шт.

20

K626686

WASHER

- flat, 1/2 inch (13 mm)

1шт.
