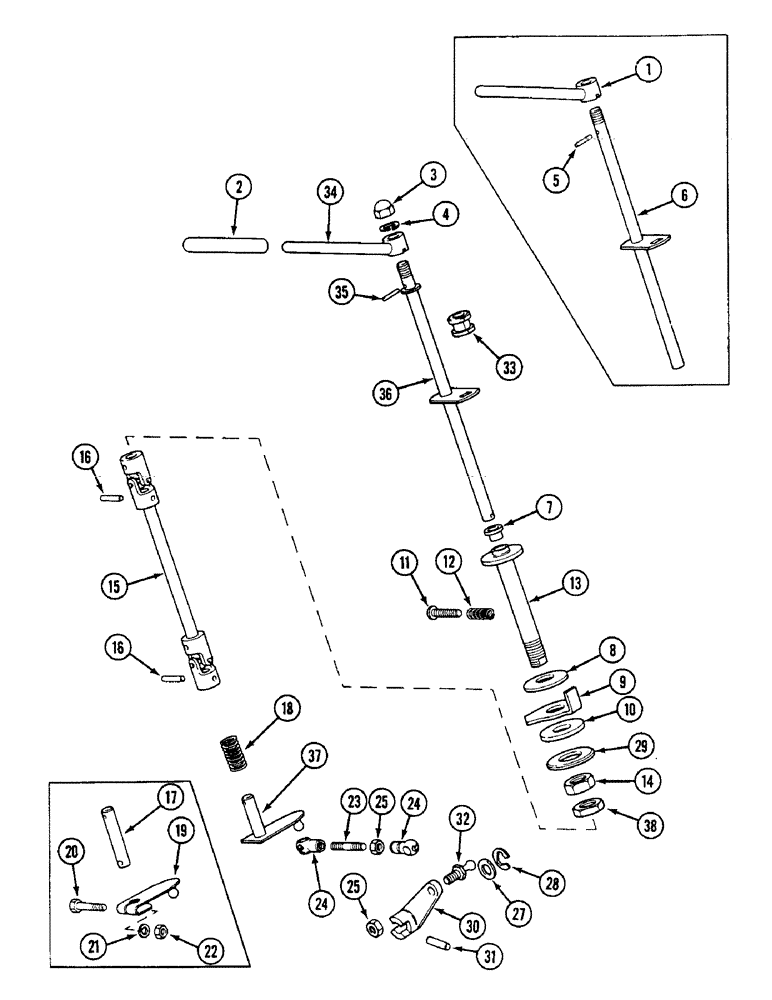

Запчасти Case IH 1594 (3-40) - THROTTLE HAND CONTROL, TRACTORS WITH CAB (03) - FUEL SYSTEM

1

K204710

LEVER ASSY.

LEVER - hand (Prior to P.I.N. 11220554)

1шт.

2

K307675

SLEEVE

- hand lever

1шт.

3

K659326

NUT

- domed, 10

1шт.

4

892-11010

LOCK WASHER,M10

1шт.

5

K16570

PIN

- roll, 1/8 x 3/4 inch (Prior to P.I.N. 11220554)

1шт.

6

REF

INSTRUCTION

ROD - hand lever (Prior to P.I.N. 11220554), Order 34, 35, 36

1шт.

7

K307448

GUIDE

BUSHING - plastic, 10 mm

1шт.

8

K626740

WASHER

- Belleville

10шт.

9

K204709

SHIM

PLATE - adjusting

1шт.

10

K204708

DISC

- friction

1шт.

11

K605613

SCREW

- lever stop, 1/4 UNC x 1-5/8 inch

1шт.

12

K625232

SPRING

- stop screw

1шт.

13

K307446

TUBE

1шт.

14

3402651R1

NUT

- hex, 16 mm

1шт.

15

K310083

SHAFT ASSY.

ROD - with universal joints (Replaces K307407)

1шт.

16

K657420

ROLL PIN

PIN - roll, 4 x 20 mm

2шт.

17

K311383

BRACKET

LEVER AND ROD ASSEMBLY

1шт.

18

K24887

SPRING

- rod

1шт.

19

K311383

BRACKET

LEVER AND ROD ASSEMBLY

1шт.

20

K650631

BOLT

- M6 x 35 mm

1шт.

21

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

22

825-13412

NUT,M12 x 1.25, Cl 8

- cable, M12

1шт.

23

K202771

ROD

- pedal to cross shaft (Replaces K202484)

1шт.

24

K621903

BALL JOINT

SOCKET END - 1/4 inch UNF

2шт.

25

425-154

JAM NUT,Jam, 1/4"-28, G5

- lock, 1/4 inch UNF

2шт.

27

K19472

WASHER

- flat, 3/8 inch (10 mm)

1шт.

28

K621587

RING, SNAP

RING - retaining, 3/8 inch (10 mm) external

1шт.

29

K19476

WASHER

- 3/4 inch (19 mm)

1шт.

30

K928177

LEVER

- cross shaft

1шт.

31

135-735

GROOVED PIN,5/32" x 3/4", Type E

Pin, Grooved, 5/32" x 3/4", Type E

1шт.

32

K621904

BALL JOINT

BALL END - lever

1шт.

33

K627767

GROMMET

- instrument panel

1шт.

34

K310035

BRACKET

LEVER - hand (P.I.N. 11220554 and after)

1шт.

35

135-735

GROOVED PIN,5/32" x 3/4", Type E

Pin, Grooved, (P.I.N. 11220554 and after) 5/32" x 3/4", Type E

1шт.

36

K310038

ROD

- hand lever (P.I.N. 11220554 and after)

1шт.

37

K311383

BRACKET

LEVER AND ROD ASSEMBLY

1шт.

38

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

1шт.
