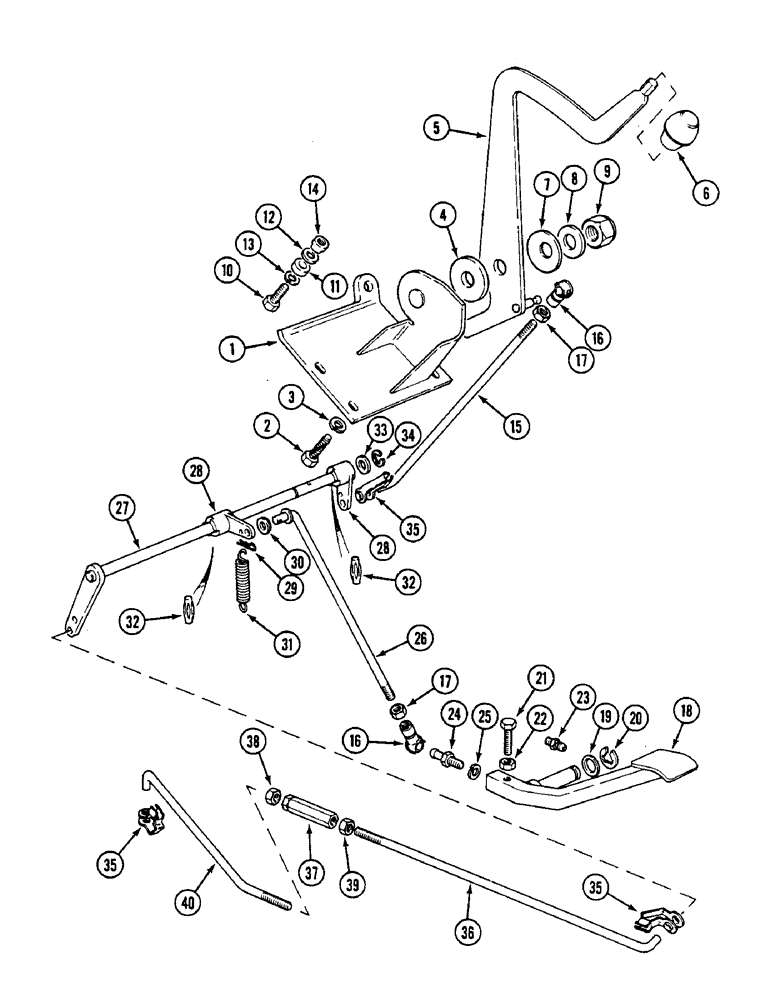

Запчасти Case IH 1594 (3-36) - THROTTLE CONTROLS, TRACTORS WITHOUT CAB (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
K302640
BRACKET
SUPPORT - hand lever (Prior to P.I.N. 11526001)
1шт.
1
K304528
SUPPORT
- hand lever (P.I.N. 11526001 and after)
1шт.
2
K655645
BOLT
SCREW - M8 x 16 mm
3шт.
3
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
3шт.
4
K950724
DISC
- friction
1шт.
5
K201285
LEVER
- hand
1шт.
6
K207512
KNOB
- lever
1шт.
7
K626740
WASHER
- Belleville
1шт.
8
K19475
WASHER
- 5/8 inch (16 mm)
1шт.
9
131-377
LOCK NUT,5/8"-11, GC
NUT - lock, ball joint, 5/8 inch UNC
1шт.
10
K602735
SCREW
- 1/4 UNC x 3/4 inch
2шт.
11
K627089
BUSHING
SPACER
2шт.
12
K626662
WASHER
- 1/4 inch
2шт.
13
K626341
SPRING WASHER
WASHER - lock, 1/4 inch
2шт.
14
K943634
NUT
- 1/4 inch UNC
2шт.
15
K204624
ROD
-, Serial Range: lever-shaft
1шт.
16
K621903
BALL JOINT
SOCKET END
2шт.
17
425-154
JAM NUT,Jam, 1/4"-28, G5
- lock
2шт.
18
K203164
PEDAL
1шт.
19
K626674
WASHER
- special, 1/2 inch (13 mm) special
1шт.
21
114-6
BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5
- snap - 1/2 inch (13 mm) external
1шт.
22
K617000
NUT
- 1/4 inch UNF
1шт.
23
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg
1шт.
24
K621904
BALL JOINT
BALL END
1шт.
25
K626341
SPRING WASHER
WASHER - lock, 1/4 inch
1шт.
26
K204627
ROD
-, Serial Range: pedal-shaft
1шт.
27
K204436
SHAFT
- cross
1шт.
28
K928178
LEVER
- cross shaft
2шт.
29
K950865
CLIP
- retaining
1шт.
30
K626662
WASHER
- 1/4 inch
1шт.
31
K624938
SPRING
- return
1шт.
32
135-735
GROOVED PIN,5/32" x 3/4", Type E
Pin, Grooved, 5/32" x 3/4", Type E
2шт.
33
K19472
WASHER
- flat, 3/8 inch (10 mm)
2шт.
34
K621587
RING, SNAP
RING - snap
2шт.
35
K908778
CLIP
- spring
3шт.
36
K204622
ROD
- cross shaft to adjusting sleeve
1шт.
37
K949065
SLEEVE
- adjusting, 1/4 inch UNF
1шт.
38
K617593
NUT
- 1/4 inch UNF
1шт.
39
425-154
JAM NUT,Jam, 1/4"-28, G5
- lock, 1/4 inch UNF
1шт.
40
K204625
ROD
- adjusting, Serial Range: sleeve-pump
1шт.
Выбрано товаров: 41
