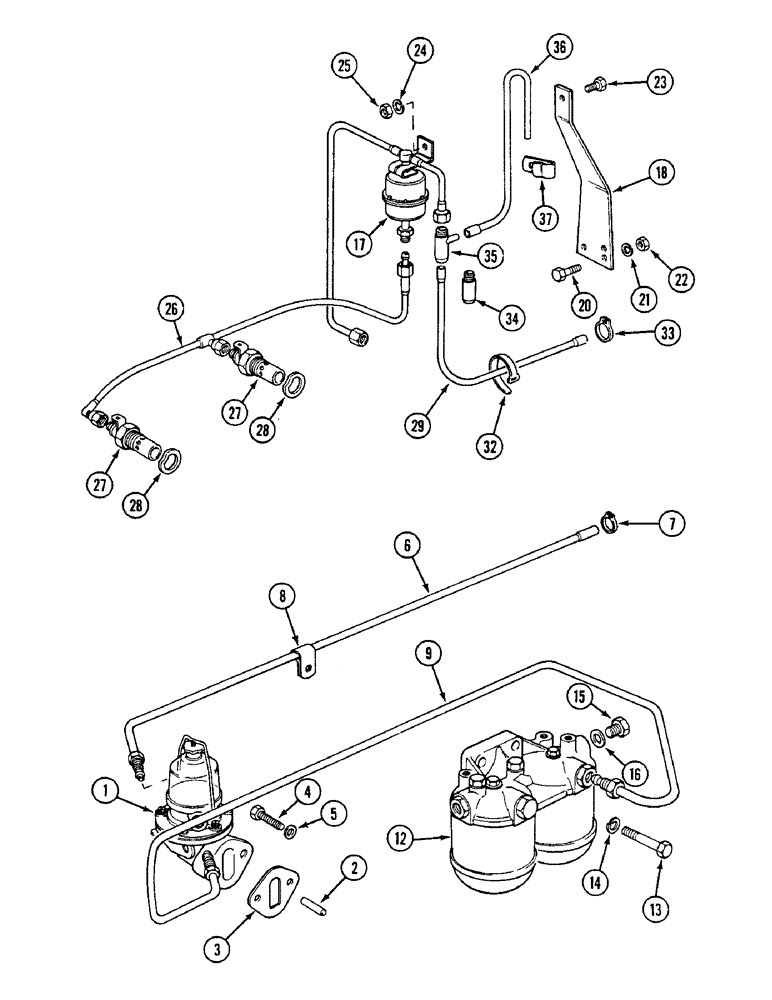

Запчасти Case IH 1594 (3-32) - FUEL FEED PUMP, FILTERS AND TUBES (03) - FUEL SYSTEM

1

K311939

FEED PUMP

PUMP ASSEMBLY - fuel (AC-Delco 7790271), See Figure 3-34

1шт.

2

K911928

PUSH ROD,9.51mm OD x 35.99mm L

- push, fuel pump

1шт.

3

K902136

GASKET

- pump mounting

1шт.

4

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 UNC x 1-1/4 inch

2шт.

5

K19481

SPRING WASHER

WASHER - lock, 5/16 inch (8 mm)

2шт.

6

K202864

PIPE,0.312" OD x 43, 2" L

TUBE - fuel, tank to fuel pump

1шт.

7

K656901

CLIP

CLAMP - breather tube

1шт.

8

K628362

CLIP

- clutch housing bolt

1шт.

9

K919336

PIPE,0.25" OD

TUBE - fuel feed pump to filter

1шт.

12

K906708

FILTER

ASSEMBLY - fuel (APF 62900), See Figure 3-34

1шт.

13

K600403

BOLT

- 3/8 UNC x 1-3/8 inch

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

445078

PLUG

- 1/2 inch UNF

1шт.

16

K15735

WASHER

- sealing, 1/2 inch

1шт.

17

K205395

TANK

RESERVOIR ASSEMBLY - fuel, (Without cab)

1шт.

17

K205396

THERMOSTART

RESERVOIR ASSEMBLY - fuel (With cab)

1шт.

18

K307967

BRACKET

- mounting, reservoir

1шт.

20

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 1.25 x 16 mm

2шт.

21

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

22

825-1408

NUT,M8, Cl 8

2шт.

23

K612802

SCREW

BOLT - 5/16 UNF x 5/8 inch

1шт.

24

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

25

K617001

NUT

- 5/16 inch UNF

1шт.

26

K205404

PIPE

TUBE ASSEMBLY - reservoir to thermostart (Without cab)

1шт.

26

K205365

HOSE

TUBE ASSEMBLY - reservoir to thermostart (With cab)

1шт.

27

K928523

GLOW PLUG

THERMOSTART - fuel (CAV 1854102)

2шт.

28

K626957

WASHER

- sealing 7/8 inch (22 mm)

2шт.

29

K207548

PIPE

TUBE - fuel return (With cab)

1шт.

29

K207568

PIPE,0.395" OD x 44" L

TUBE - fuel return (Without cab)

1шт.

32

702093C1

CABLE TIE

STRAP - tie

2шт.

33

L100659

CLIP

- self-adhesive

1шт.

REF#33 COULD ALSO USE METAL SCREW TYPE CLAMP (214-274) OR BOTH

1шт.

34

K306934

FITTING

RESTRICTOR - fuel return (Without cab)

1шт.

35

K305825

FITTING

RESTRICTOR - fuel return (With cab)

1шт.

36

K205702

HOSE,0.18" ID x 0.187" OD x 47, 18" L

TUBE - venting (With cab)

1шт.

37

K628378

CLIP

- spring, vent tube (With cab)

2шт.
