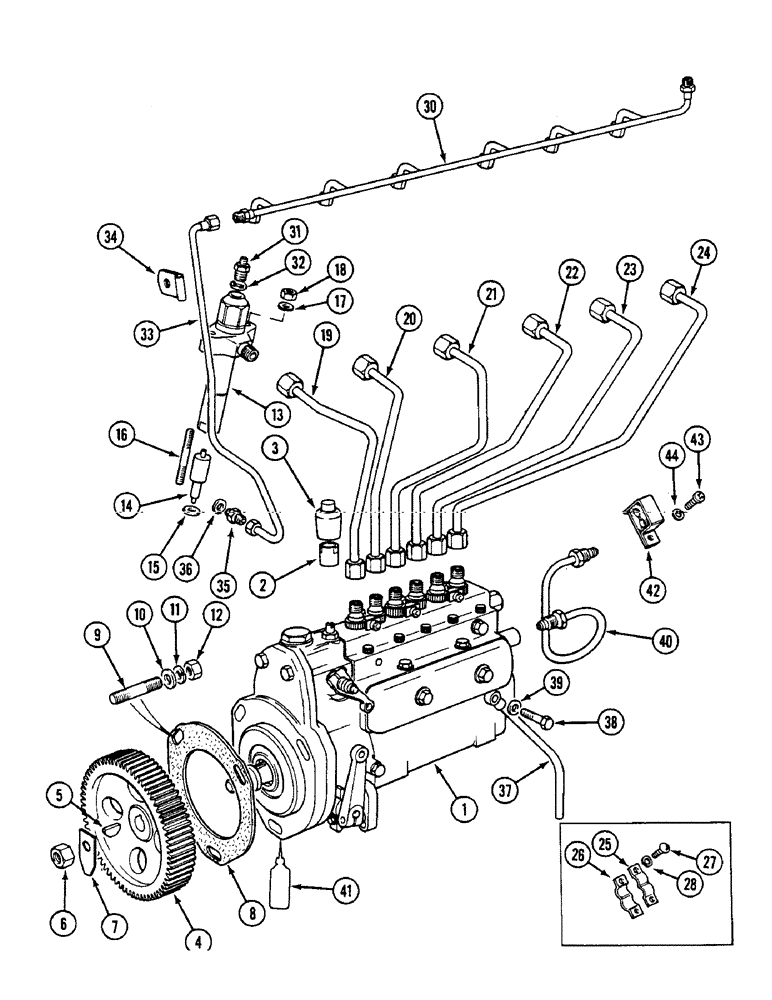

Запчасти Case IH 1594 (3-28) - INJECTION PUMP, INJECTORS AND TUBES (03) - FUEL SYSTEM

1

K957464

PUMP

- fuel injection (CAV P5674)

1шт.

2

K954858

SPRING

CLIP - spring, maximum fuel adjuster

1шт.

3

K954859

COVER

- maximum fuel adjuster

1шт.

4

K948442

PINION

GEAR - injection pump, 68 teeth

1шт.

5

K11262

KEY

- Woodruff, No., 505

1шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

7

K626429

WASHER

- tab, gear nut

1шт.

8

K912485

GASKET

- pump mounting, 0.006 to 0.010 inch thick

1шт.

9

K608137

STUD

- 5/16 UNC x 1-7/8 inch

3шт.

10

K626682

WASHER

- lever pin, 5/16 inch (8 mm)

3шт.

11

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

12

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

3шт.

13

K942175

NOZZLE CAP

INJECTOR - cap and holder, Includes: Ref. 14

1шт.

14

K942176

NOZZLE CAP

NOZZLE - injector

1шт.

15

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

.571 ID, .826 OD, .054/.058 thick

6шт.

If you need a washer with .398/.394 ID, .807/.795 OD, .082/.078 thick, order K901092.

1шт.

16

K608107

STUD

- injectors, 5/16 UNC x 2-11/16 inch

12шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

12шт.

18

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

12шт.

19

K206671

TUBE,1.75 mm OD x 440 mm L

TUBE ASSEMBLY - fuel, No. 1 cylinder

1шт.

20

K206672

INJECTION PIPE

TUBE ASSEMBLY - fuel, No. 2 cylinder

1шт.

21

K206673

INJECTION PIPE

TUBE ASSEMBLY - fuel, No. 3 cylinder

1шт.

22

K206674

INJECTION PIPE

TUBE ASSEMBLY - fuel, No. 4 cylinder

1шт.

23

K206675

INJECTION PIPE

TUBE ASSEMBLY - fuel, No. 5 cylinder

1шт.

24

K206676

INJECTION PIPE

TUBE ASSEMBLY - fuel, No. 6 cylinder

1шт.

25

K657141

COLLAR

CLIP - injector tubes (Prior to engine P.I.N. 11468214)

5шт.

26

K207930

CLIP

- injector tubes (Replaces K908168)

5шт.

27

K652474

BOLT

- M6 x 12 mm

10шт.

28

K19488

SPRING WASHER

- lock, 3/16 inch, Order 492-11010

10шт.

30

K950054

RETURN PIPE

TUBE - leak off, injectors

1шт.

31

K620460

ADAPTER

- M8 - 1/8 inch BSP, injector leak-off

6шт.

32

K36374

WASHER

- copper, 8 mm

6шт.

33

K950056

PIPE,0.187" OD x 10.875, 4.937" L

TUBE - leak off, injection pump

1шт.

34

K621610

CLIP

- manifold

1шт.

35

K626068

FITTING

ADAPTER - M8 - 1/8 BSP

1шт.

36

K626653

WASHER,8.33mm ID x 14.29mm OD x 2.38mm Thk

- sealing, 5/16 inch (8 mm)

1шт.

37

K208029

HOSE

TUBE - injection pump overflow (Replaces K915350)

1шт.

38

K921095

BANJO BOLT

- 5/16 inch UNF

1шт.

39

K36374

WASHER

- copper, 8 mm

2шт.

40

K950052

PIPE,0.25" OD x 3.937, 1.562" L

TUBE ASSEMBLY - fuel, filter to injection pump

1шт.

41

REF

INSTRUCTION

SILMATE RTV - gasket replacement (See your authorized Case dealer)

1шт.

42

K657141

COLLAR

CLIP - injector tubes (Replaces K14673) (Engine P.I.N. 11468214 and after)

5шт.

43

K652474

BOLT

- M6 x 12 mm (For clip K657141)

5шт.

44

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

5шт.
