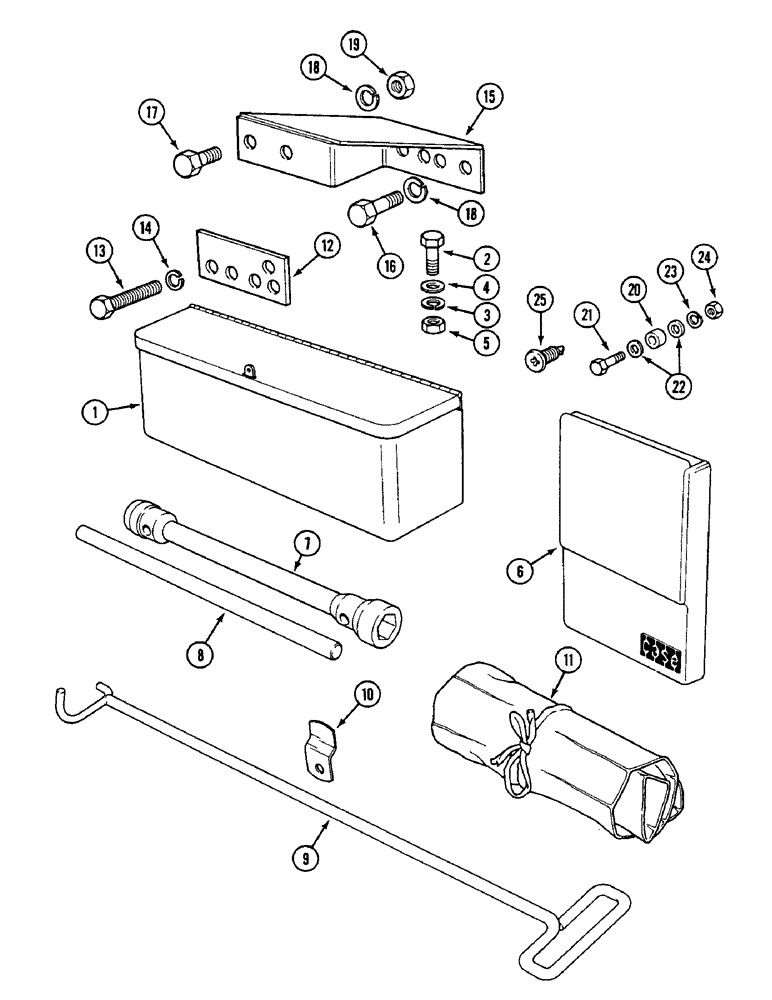

Запчасти Case IH 1594 (9-432) - TOOL BOX AND TOOLS (09) - CHASSIS/ATTACHMENTS

1

1536072C1

BOX, TOOL

BOX - tool

1шт.

2

K602983

SCREW

BOLT - 3/8 UNC x 7/8 inch

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

3

892-11010

LOCK WASHER,M10

4шт.

4

K19472

WASHER

- flat, 3/8 inch (10 mm)

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

K954320

BOX

- operators manual

1шт.

7

K948956

SOCKET WRENCH

WRENCH - wheel, 1-1/2 x 1 inch (Two-wheel drive)

1шт.

7

K203223

DISC, WHEEL

WRENCH - wheel, 1-1/2 inch x 27 mm (MFD) (Prior to P.I.N. 11221501)

1шт.

7

K210348

BRACE

WRENCH - wheel nuts, 1-1/2 inch x 24 mm (MFD) (P.I.N. 11221501 and after)

1шт.

8

K948095

CLEVIS PIN

BAR - tool

1шт.

9

K203246

ROD

- lower link release (With cab)

1шт.

9

K201795

HITCH

ROD - lower link release (Without cab)

1шт.

10

K203086

CLIP

- release rod (Without cab)

2шт.

11

UK5118

TOOL

KIT - tractor, Includes: all parts below

1шт.

K302450

TOOL

WRENCH - 10 x 13 mm A/F, tool kit

1шт.

K302451

TOOL

WRENCH - 13 x 15 mm A/F, tool kit

1шт.

K627608

TOOL

WRENCH - 5/16 x 7/16 inch A/F, tool kit

1шт.

K627604

TOOL

WRENCH - 1/2 x 9/16 inch A/F, tool kit

1шт.

K627603

TOOL

WRENCH - 5/8 x 3/4 inch A/F, tool kit

1шт.

K302452

BOX

WRENCH - box, 10 x 11 mm A/F, tool kit

1шт.

K302453

BOX

WRENCH - box, 12 x 13 mm A/F, tool kit

1шт.

K627610

TOOL

WRENCH - box, 1/2 x 9/16 inch A/F, tool kit

1шт.

K204305

RING

WRENCH - ring, 3/4 x 15/16 inch A/F, tool kit

1шт.

K204306

RING

WRENCH - ring, 1-1/8 x 1-5/16 inch A/F, tool kit

1шт.

K204307

SPECIAL WRENCH

WRENCH - adjustable, 12 inch, tool kit

1шт.

K305506

KEY

WRENCH - Allen, 5 mm, tool kit

1шт.

K207185

OPEN END WRENCH

WRENCH - 1/2 inch square, tool kit

1шт.

K922743

TOOL

PLIERS - 6 inch, tool kit

1шт.

K922744

SCREW

DRIVER - 5-1/2 inch, tool kit

1шт.

K302456

TOOL

SCREW DRIVER - Phillips No. 3, tool kit

1шт.

K19806

BAR

- 5/16 x 6 inch, tool kit

1шт.

K204308

BAR

- 1/4 x 3 inch, tool kit

1шт.

K906963

SCREW

PEG - engine timing, tool kit

1шт.

K302454

TOOL

CONTAINER - plastic, tool kit

1шт.

12

K946766

PLATE - clamping, tool box, kit

1шт.

13

K603272

SCREW

BOLT - 5/8 UNC x 1-7/8 inch, tool kit

2шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Tool kit 5/8"

2шт.

15

K310252

BRACKET

- tool box (Without cab, with loader) (North America only), kit

1шт.

16

K603280

SCREW

BOLT - 5/8 UNC x 2-1/4 inch, tool kit

2шт.

17

K603274

SCREW

BOLT - 5/8 UNC x 1-1/2 inch, tool kit

2шт.

18

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Tool kit 5/8"

4шт.

19

425-1010

NUT,5/8"-11, G5

Tool kit 5/8"-11, G5

2шт.

20

K655719

BUSHING

SPACER - manual box to fender, tool kit

3шт.

21

K651232

BOLT

- M6 x 40 mm, tool kit

3шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Tool kit M6

3шт.

23

892-11006

LOCK WASHER,M6

WASHER, LOCK, , Tool kit M6

3шт.

24

825-13412

NUT,M12 x 1.25, Cl 8

- cable, M12, tool kit

3шт.

25

A162364

FASTENER

- operators manual box (With cab), tool kit

3шт.
