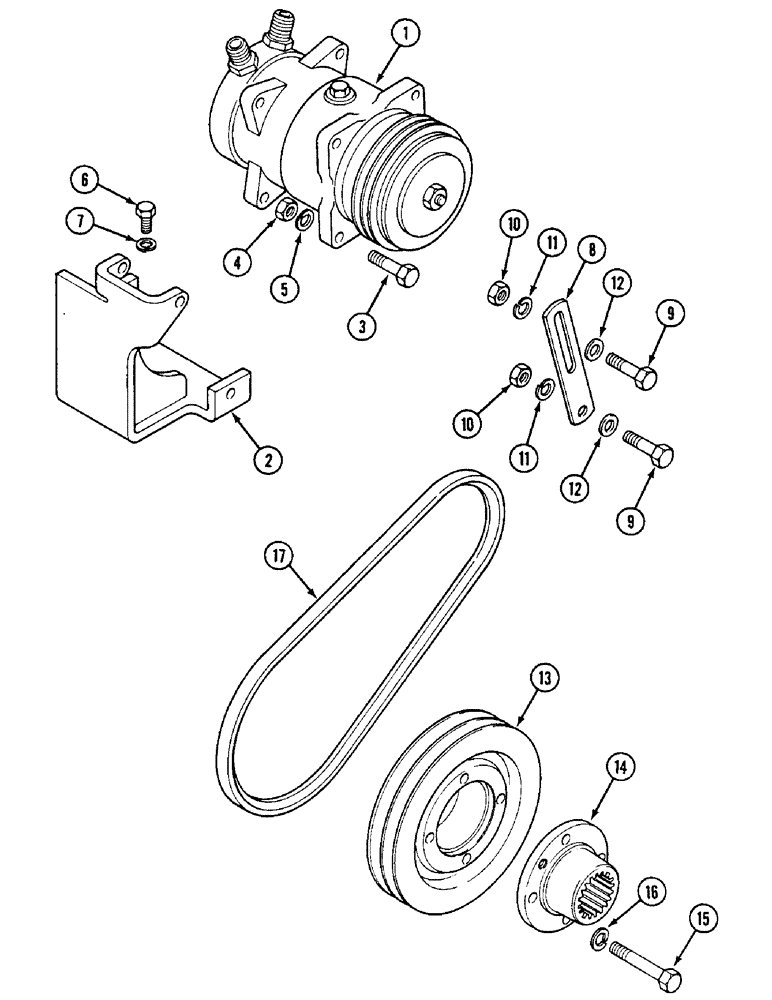

Запчасти Case IH 1594 (9-426) - AIR CONDITIONER COMPRESSOR, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K307237

COMPRESSOR

ASSEMBLY - Sanden SD-510-HD

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

1594 CASE DIESEL TRACTOR (1/83-12/87), Reman for New P/N K307237

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

2

K307234

MOUNTING PARTS

SUPPORT - compressor

1шт.

3

K650662

BOLT

- M10 x 35 mm, Order 614-10035

2шт.

4

825-1410

NUT,M10, Cl 8

2шт.

5

892-11010

LOCK WASHER,M10

2шт.

6

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

BOLT - 5/16 UNC x 3/4 inch

3шт.

7

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

8

K307083

STRAP

- adjusting

1шт.

9

K650662

BOLT

- M10 x 35 mm, Order 614-10035

2шт.

10

825-1410

NUT,M10, Cl 8

2шт.

11

892-11010

LOCK WASHER,M10

2шт.

12

K651779

WASHER

- 10 mm

2шт.

13

K201254

COMPRESSOR

PULLEY - compressor drive

1шт.

14

K201984

SPLINED COUPLING

COUPLING - hydraulic pump drive

1шт.

15

K600413

BOLT

- 3/8 UNC x 2-5/8 inch

4шт.

16

492-11038

LOCK WASHER,3/8"

4шт.

17

K306655

V-BELT,12.50 mm W x 1338.00 mm L

V-BELT , Compressor drive 12.50 mm W x 1338.00 mm L

1шт.
