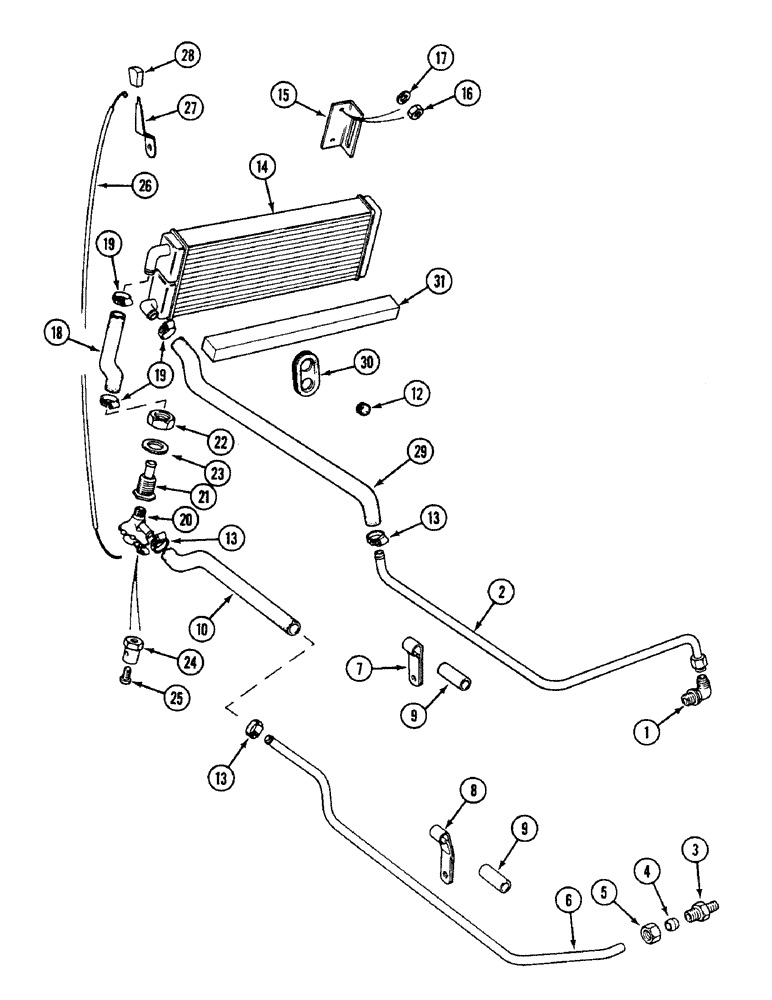

Запчасти Case IH 1594 (9-418) - CAB HEATER, TUBES AND FITTINGS (09) - CHASSIS/ATTACHMENTS

1

K622138

FITTING

ELBOW - 90 degrees

1шт.

2

K206922

PIPE,0.5" OD

TUBE ASSEMBLY - thermostat housing

1шт.

3

K626055

FITTING

UNION - 1/2 - 3/8 inch BSP

1шт.

4

K11904

FERRULE

SLEEVE - 1/2 inch internal diameter

1шт.

5

K623212

FITTING

NUT - union, 1/2 inch BSP

1шт.

6

K205495

PIPE

TUBE - water pump

1шт.

7

K203833

CLIP

- housing tube

1шт.

8

K625011

CLIP

- pump tube

1шт.

9

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE - nylon

2шт.

10

K307264

HEATER HOSE

- Control valve

1шт.

12

K627742

GROMMET

PLUG - rubber, instrument panel

1шт.

13

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

3шт.

14

K304486

HEATER

RADIATOR - heater

1шт.

15

K303251

BRACKET

- radiator

1шт.

16

825-13412

NUT,M12 x 1.25, Cl 8

- cable, M12

2шт.

17

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

18

1974651C1

HEATER HOSE,15.50 mm ID x 140.00 mm

HOSE , Valve to Radiator 15.50 mm ID x 140.00 mm

1шт.

19

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm

3шт.

20

K205318

VALVE

- heater

1шт.

21

K205316

ADAPTER

- heater valve

1шт.

22

425-1416

JAM NUT,Jam, 1"-8, G5

- hex, jam, 1 inch NC

1шт.

23

K627472

WASHER

- 1 inch

1шт.

24

K952104

TRUNNION

- No. 8 UNC

1шт.

25

70-1086

SCREW,Slotted Pan Hd, #8-32 x 3/8"

- No. 8

1шт.

26

K311797

CABLE

- inner and outer (Replaces K304229)

1шт.

27

K310371

HANDLE

LEVER - hand (Replaces K303647)

1шт.

28

K303754

KNOB

- hand lever

1шт.

29

K307265

HEATER HOSE,12.50 mm ID x 380.00 mm, SAE20R4 Class D1

- Radiator 12.50 mm ID x 380.00 mm, SAE20R4 Class D1

1шт.

30

K308480

GROMMET

- bulkhead

1шт.

31

K308479

BAFFLE

heater radiator (Without Air Conditioning)

1шт.
